3050
TIME RELAY MODULE WITH “FLIP-FLOP” FUNCTION
E-NR: 5010320
Terminal type
Terminal block for installation of tele and access systems.
Time relay that enables you to control loads up to 2A / 30V with a magnetic contact or low voltage detector.
Built-in programmable time circuit that controls switching on and off.
Time control is set with a DIP switch from 0 seconds to 8 hours.
The terminal has a dual switching relay (NC / NO) function.
Can be powered by either AC or DC.
Flip-flop function, that is, the relay output changes status after each change of input (also called asynchronous t flip-flop).
| Attributes | Value |
|---|---|
| Terminal type | LSA/LSA, Screw/screw |
| Supply voltage | 8-20 VAC |
| Current consumption | 11 mA @24 VDC, 18 mA @12 VDC |
| Cable dimension – LSA slots (mm) | Ø 0,4 – 0,7 |
| Cable dimension – screw terminals | 0,14 – 1 mm2 |
| Tamper switch max. load | 50 mA |
| Relay contact max. load | 30 V / 2 A |
| Dimensions (L x W) | 116 x 40 |
| Product type | Connection accessories |
| Environment | Indoor |
| Accessory type | Relay board, Timer relay |
| Connection terminal | Contact configuration |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 3050.01 | 5010320 | Time relay module 2A/30V, Tamper Protected, LSA |

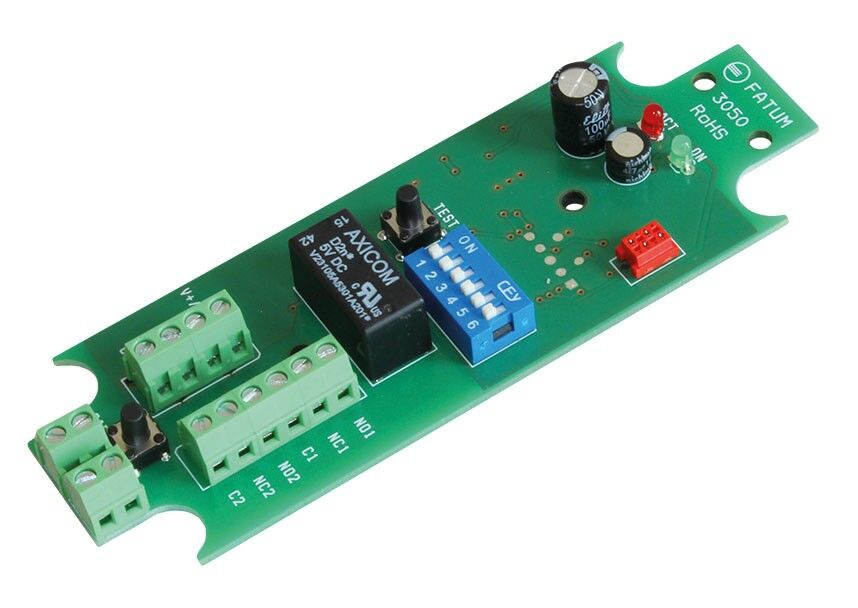

| 3050.03 | 5010319 | Time relay module 2A/30V, Tamper Protected, Screw |
