Magnetic Contact with Built-In Resistors, NC
E-NR: 6309428

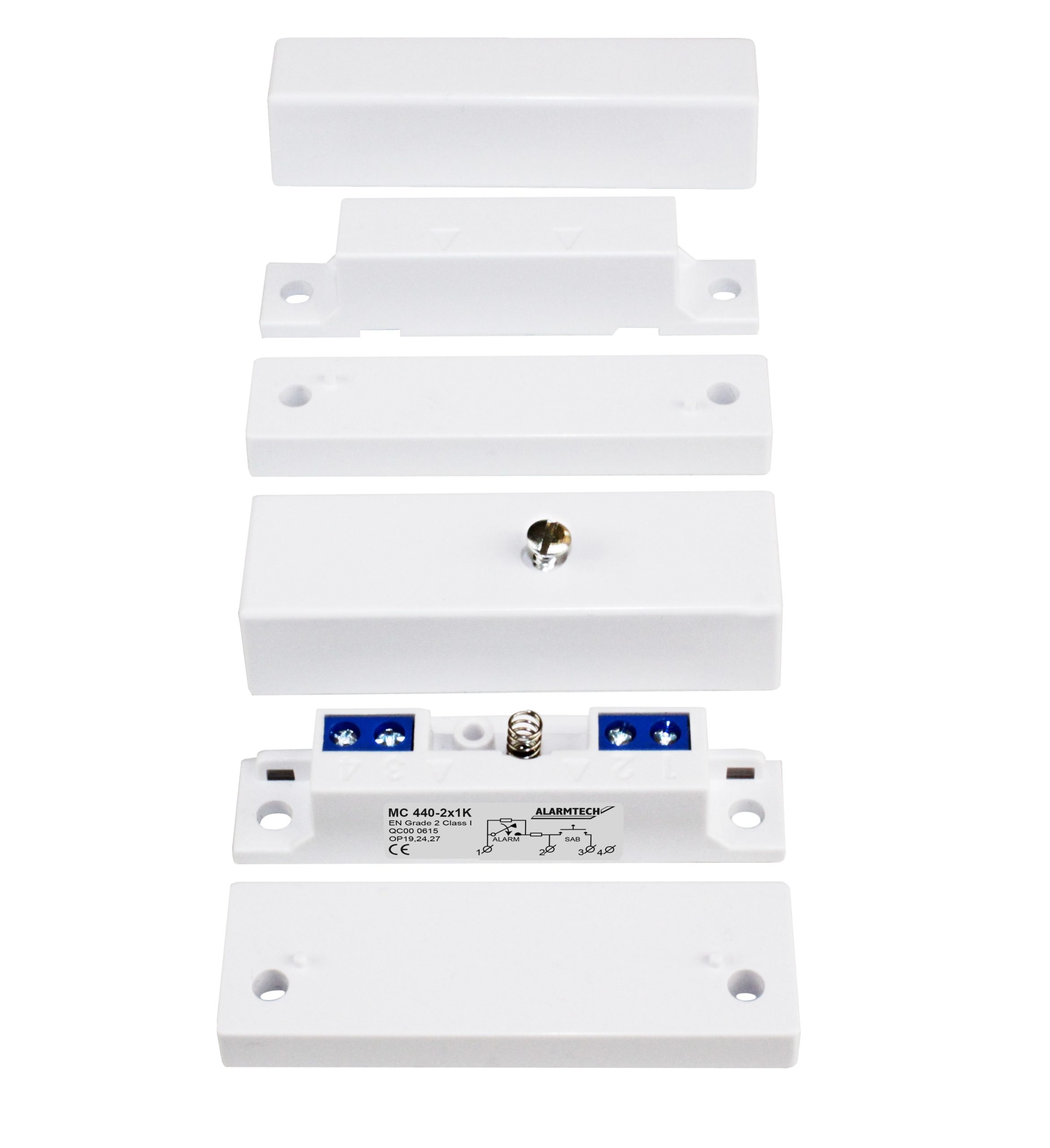

The magnetic contact MC 440 with 2 built-in resistors for a balanced circuit. When installing the magnetic contact it is easy to select if one resistor or both should be used (see wiring diagram). For quick and easy installation the magnetic contact comes with screw terminals with wire protection. It is equipped with tamper protection against unauthorized opening. The magnetic contact has a wide gap which allows for installation on most materials such as wood, plastic, aluminium and steel. Enclosed are plastic spacers for installation on steel. The contact can be supplemented with different accessories such as brackets and extra strong magnets. If additional spacers are needed use MC 400-6 and /or MC 400-7.
| Attributes | Value |
|---|---|
| Built-in resistors | 2 x 1K, 2 x 2,2K, 2 x 3,3K, 2 x 4,7K, 2 x 5,6K |
| Approvals | Class 2, class II, EN 50131-2-6 Grade 2, FG, INCERT B-582-1003, NF&A2P, SBSC 9-210 |
| Contact rating | 48 VDC / 400 mA / 10 VA |
| Operating temperature | +5°C – +40°C |
| Housing protection class | IP 43 |
| Make distance (wood) mm | 37 |
| Make distance (steel) mm | 24 |
| Contact dimensions (L x W x H) mm | 65 x 20 x 15 |
| Magnet dimensions (L x W x H) mm | 65 x 15 x 14,5 |
| Normal operation | 12 VDC |
| Grade | 2 |
| Product type | Detectors |
| Environment | Indoor |
| Product group | Magnetic contact |
| Product feature | Surface-mounted |
| Security certification and approval schemes | EN, F&P, FG, INCERT, NF&A2P, SBSC |
| Security class | 2 |
| Environmental class | II |
| Contact function | NC |
| Mounting on steel | With accessories |
| Product name | E-nr | Description |
|---|---|---|
| MC 440-2x1K | 6309428 | Magnetic contact, surface mounting, NC, with two 1K resistors, tamper protection |
| MC 440-2×2,2K | 6309429 | Magnetic contact, surface mounting, NC, with two 2,2K resistors, tamper protection |
| MC 440-2×3,3K | 6309407 | Magnetic contact, surface mounting, NC, with two 3,3K resistors, tamper protection |
| MC 440-2×4,7K | 6309408 | Magnetic contact, surface mounting, NC, with two 4,7K resistors, tamper protection |
| MC 440-2×5,6K | 6309409 | Magnetic contact, surface mounting, NC, with two 5,6K resistors, tamper protection |
