MC 246-LSZH

Magnetic Contact, Recessed mounting, NC/NO, halogen-free cable

EN 2
SBSC 2
INCERT
FG
F&P
CNPP 2

E-NR: 6309279

Cable length

Overview

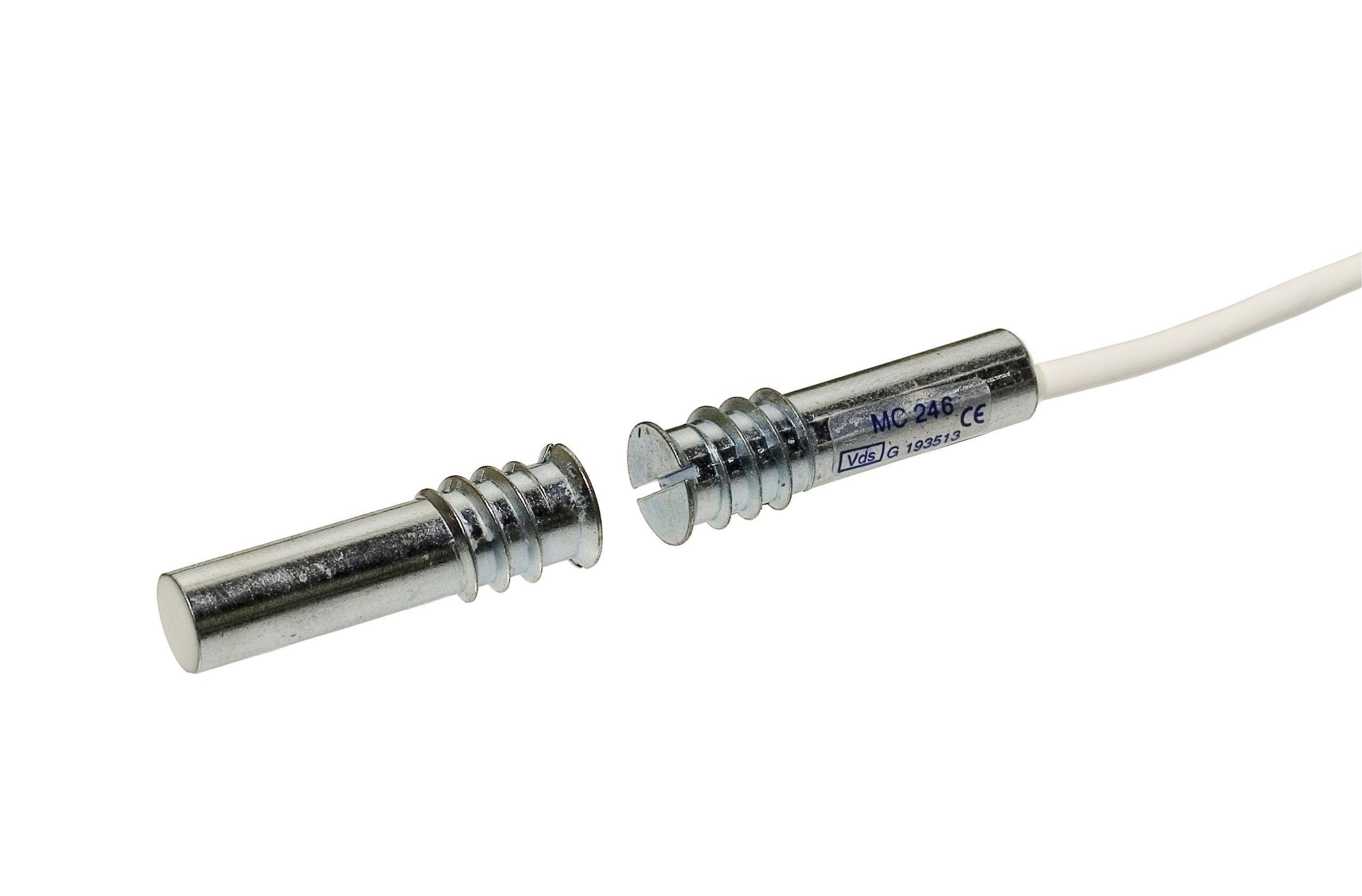

MC 246 is a universal magnetic contact with change-over (NC/NO) function that can be used in both alarm and access control systems for monitoring e.g. doors and windows against unauthorized opening.

Both the contact and the magnet part are made of Al-alloy and formed in the shape of a threaded screw, which enables easy installation into wood or plastic.

With our extensive range of installation accessories it is easy to install the contact either recessed or as a surface mount on metal and other materials.
With appropriate accessories, the contact can even be installed on steel doors, safety valves, garage doors, etc.

The contact part is sealed with special epoxy, making it water resistant.

Details

Attributes Value
Cable length

6m, 10m

Approvals

Class 1/2,F&P, Class IIIA, CNPP 2124030001B0, EN 50131-2-6 Grade 2, FG, GRADE 2 + RTC, INCERT B-582-1002, NF&A2P, SBSC 9-197

Contact rating

48 VDC / 250 mA / 5 VA

Operating temperature

-40°C – +70°C

Housing protection class

IP 67

Drill diameter mm

9-10

Magnet type

Alnico 5

Make distance (wood) mm

20

Make distance (steel) mm

X

Contact dimensions (L x Ø) mm

37 x 11

Magnet dimensions (L x Ø) mm

37 x 11

Product type

Detectors

Environment

Indoor, Outdoor

Product group

Magnetic contact

Product feature

Flush-mounted

Security certification and approval schemes

EN, F&P, FG, INCERT, NF&A2P, SBSC

Security class

2

Environmental class

IIIA

Contact function

NC/NO

Mounting on steel

With accessories

Documents

Order information

Product name E-nr Description
MC 246-LSZH-6 6309279 Recessed magnetic contact, change-over, 6 m halogen-free cable
MC 246-LSZH-10 6309280 Recessed magnetic contact, change-over, 10 m halogen-free cable

Schematics

  • MC 200-4

    Aluminium Housing for MC 240, 246 and 247

  • MC 200-5

    Aluminium Part with Extra Strong Magnet for MC 240, 246 and 247

  • MC 200-6

    Aluminium Housing for Floor Installation for MC 240, 246 and 247

  • MC 200-7

    Aluminium Housing for MC 240, 246 and 247

  • MC 200-8

    Aluminium Part with Extra Strong Magnet for MC 240, 246 and 247

  • MC 200-S11

    Plastic Flange for MC 240, 246, 247, 250, 255, 270, 272, 275

  • MC 200-S12

    Plastic Flange with Strong Magnet for MC 240, 246, 247 and 255

  • MC 200-S21

    Plastic Snap-in Flange for MC 240, 246, 247, 250, 255, 270, 272, 275

  • MC 200-S22

    Snap-in Flange with Strong Magnet for MC 240, 246, 247 and 255

  • MC 200-S3

    Plastic Housing for MC 240, 246 and 247

  • MC 200-S31

    Plastic Snap-in Flange for MC 240, 246, 247, 250, 255, 270, 272, 275

  • MC 200-S32

    Snap-in Flange with Strong Magnet for MC 240, 246, 247, 255
