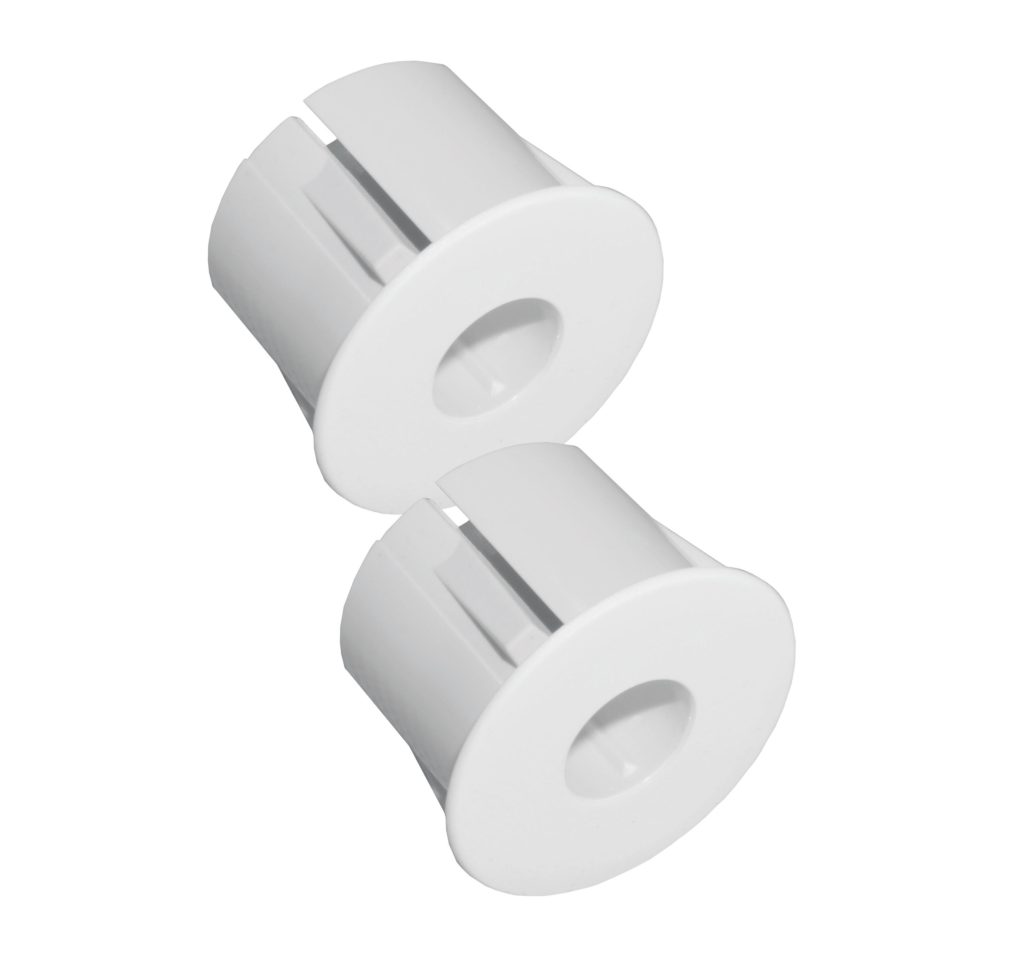

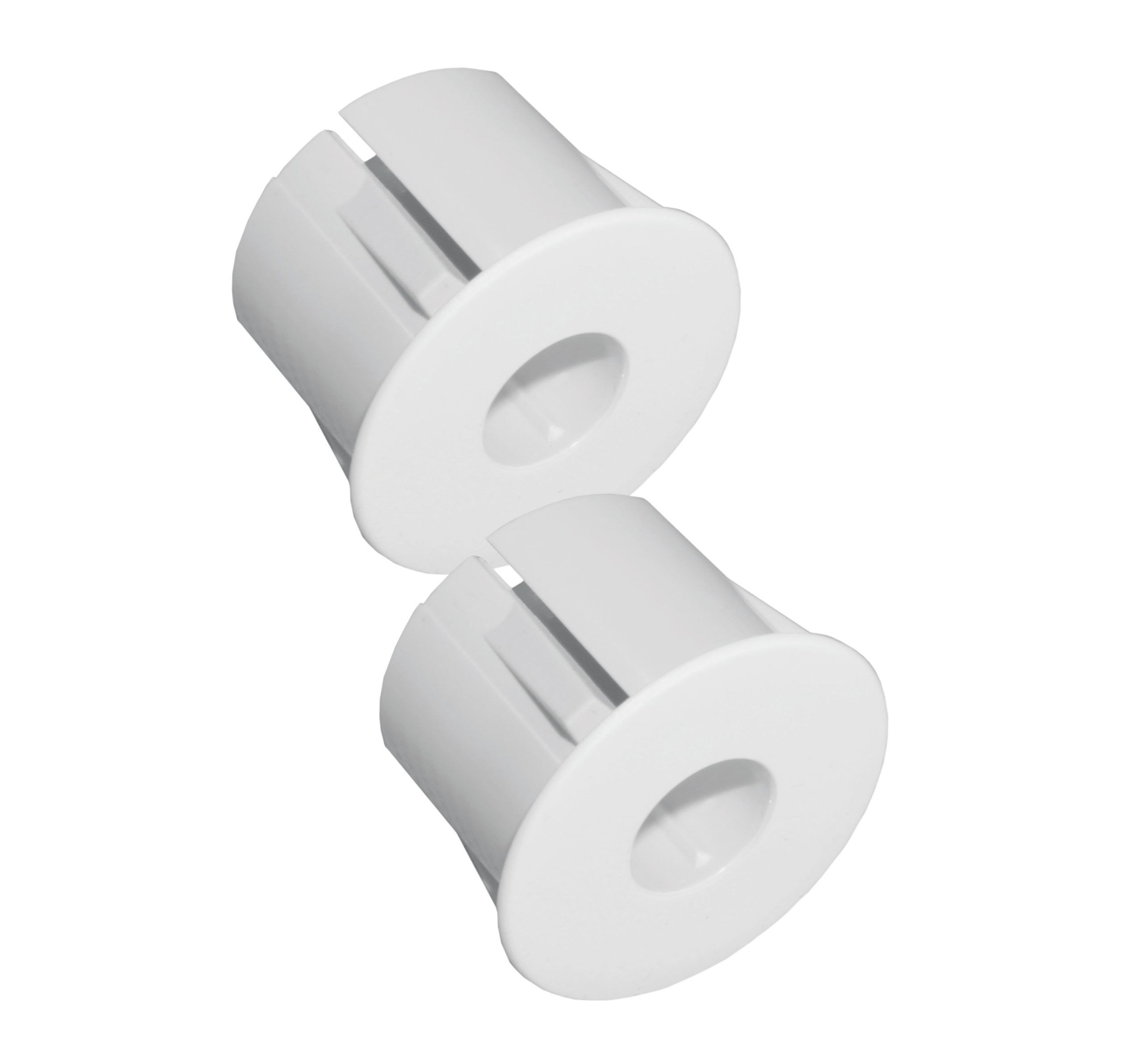

Plastic adapter for installation of recessed magnetic contacts into non-magnetic door and window frames.
Suitable for MC 240, 246, 247, 250, 255, 270, 272 and 275.
Contact and magnet are screwed into the flange, which allows for adjustment of the operation gap. With snap-in function for two different thickness dimensions, 1 and 1.5 mm.
| Drill diameter mm | 25 |
|---|---|

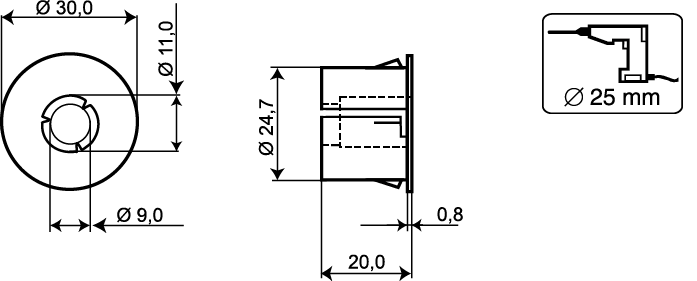

| Dimensions (L x Ø) mm | 20 x 30 |
