MC 240 with built-in resistors
Magnetic contact for recessed mounting, NC, with built-in resistors
E-NR: 6332724
Built-in resistors

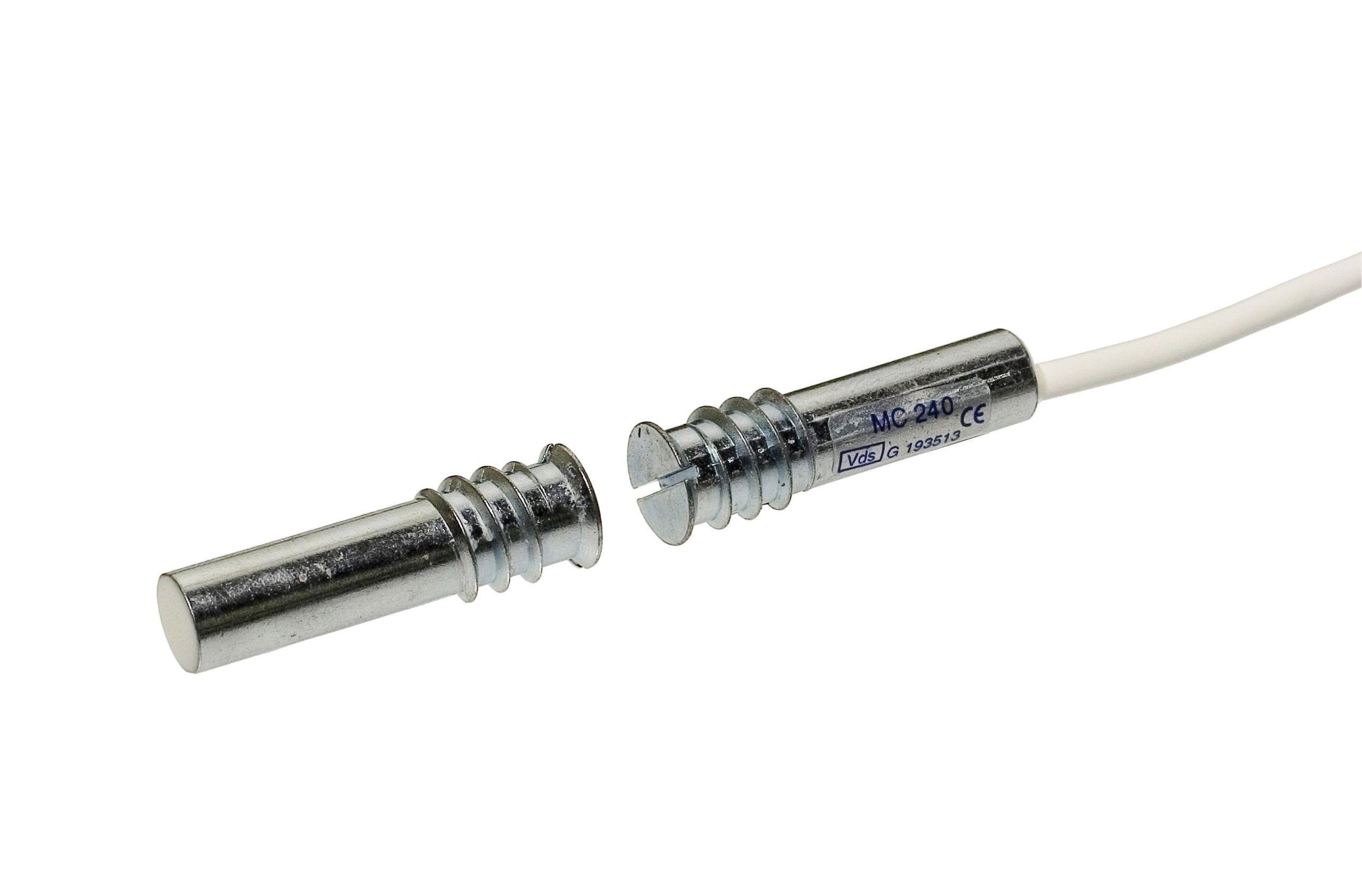

MC 240 universal magnetic contact with NC function and built-in resistors for a balanced loop that can be used both in alarms and access systems for monitoring e.g. doors, windows, doors and gates against unauthorized opening.
With built-in resistors, a lot of time is saved during installation with fewer connection points in the junction box and thus also fewer sources of error. You can also choose to connect the magnetic contact directly to the central unit and thus no junction box is needed. Choose between having only a parallel resistor across the reed switch or having parallel resistors and series resistors mounted with the reed switch.
| Attributes | Value |
|---|---|
| Built-in resistors | 1 x 1K, 1 x 2,2K, 1 x 3,3K, 1 x 4,7K, 2 x 1K, 2 x 2,2K, 2 x 3,3K, 2 x 4,7K, 2 x 5,6K |
| Approvals | Class 1/2,FG, Class IIIA, EN 50131-2-6 Grade 2, INCERT B-582-1003, NF&A2P, SBSC 9-196, VdS G 193513 Class B |
| Contact rating | 48 VDC / 500 mA / 10 VA |
| Housing protection class | IP 67 |
| Drill diameter mm | 9-10 |
| Make distance (wood) mm | 27 |
| Make distance (steel) mm | Depending from accessories used |
| Contact dimensions (L x Ø) mm | 37 x 11 |
| Magnet dimensions (L x Ø) mm | 37 x 11 |
| Mounting on steel | With accessories |
| Operating temperature | –40 – +70 °C |
| Grade | 2 |
| Product type | Detectors |
| Environment | Indoor, Outdoor |
| Product group | Magnetic contact |
| Product feature | Flush-mounted |
| Security certification and approval schemes | EN, F&P, FG, INCERT, NBU, NF&A2P, SBSC, VdS |
| Security class | 2, B |
| Environmental class | IIIA |
| Contact function | NC |
| Product name | E-nr | Description |
|---|---|---|
| MC 240-P1K | 6332724 | Magnetic contact, NC, 1K resistor in parallel with the reed switch, 2m cable |
| MC 240-P2,2K | 6332725 | Magnetic contact, NC, 2,2K resistor in parallel with the reed switch, 2m cable |
| MC 240-P3,3K | Magnetic contact, NC, 3,3K resistors in parallel with the reed switch, 2m cable | |
| MC 240-P4,7K | Magnetic contact, NC, 4,7K resistors in parallel with the reed switch, 2m cable | |
| MC 240-P1K0S1K0-6 | 6310413 | Magnetic contact, NC, 2x1K resistor in series and parallel with the reed switch, 6m cable |
| MC 240-P2K2S2K2-6 | 6310414 | Magnetic contact, NC, 2×2,2K resistors in series and parallel with the reed switch, 6m cable |
| MC 240-P3K3S3K3-6 | 6310415 | Magnetic contact, NC, 2×3,3K resistors in series and parallel with the reed switch, 6m cable |
| MC 240-P4K7S4K7-6 | 6310416 | Magnetic contact, NC, 2×4,7K resistors in series and parallel with the reed switch, 6m cable |
| MC 240-P5K6S5K6-6 | 6310417 | Magnetic contact, NC, 2×5,6K resistors in series and parallel with the reed switch, 6m cable |
