E-NR: 6310407

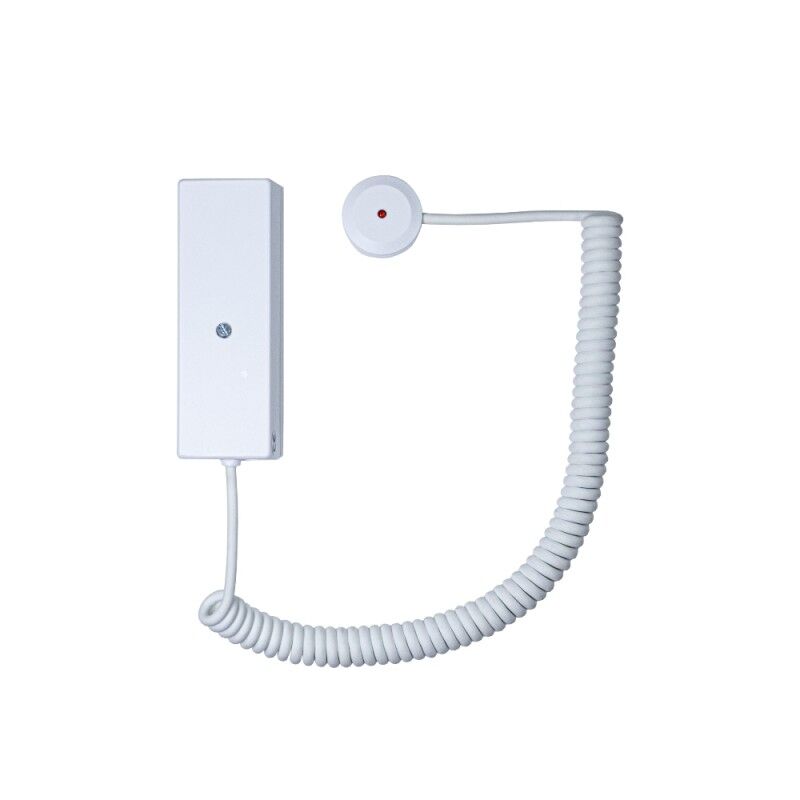

GD 470-SJ
Glass Break Detector for Laminated Glass with junction box, Glued, Relay output

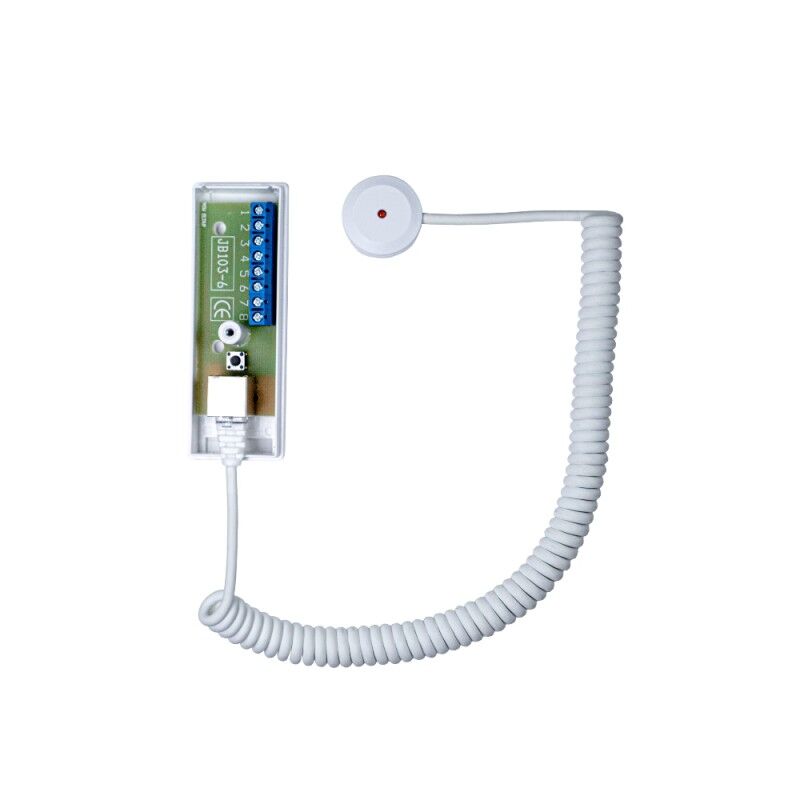

GD 470-S glass breaker detector with relay output has the same functions as GD 470 which can be connected directly to an input to the control panel. The detector has a spiral cable with modular contact which is connected in the junction box JB 103-6, which means that it can be easily and quickly disconnected from the detector loop at e.g. plastering a window.
| Attributes | Value |
|---|---|
| Alarm indication | LED |
| Maximum coverage | 2 m radio (up to 8 mm + P8B) |
| Approvals | EN 50131-2-7-2 Grade 2 (EN-ST-000290), VdS 2332 Klasse B (G122508), SBSC 22-95 (Class 2) |
| Supply voltage | 5-15 VDC |
| Current consumption | 1,5 mA (3 mA in alarm state) |
| Alarm output | Transistor output |
| Tamper protection | Yes |
| Alarm hold time | Latching |
| Connection | Spiral cable (35 cm – 70 cm) made of PUR with RJ10 contact |
| Housing material | ABS Plastic |
| Colour | White |
| Operating temperature | -40 – +70°C |
| Housing protection class | IP 67 |
| Dimensions (H x Ø) mm | 11 x 26 |
| Dimensions (L x W x H) mm | 91 x 31 x 23 (box) |
| Grade | 3 |
| Product type | Detectors |
| Environment | Indoor, Outdoor |
| Product group | Glass break |
| Product feature | Adhesive-mounted, Surface-mounted |
| Security certification and approval schemes | EN, F&P, FG, SBSC, VdS |
| Security class | 2, B |
| Environmental class | IIIA |
| Product name | E-nr | Description |
|---|---|---|
| GD 470-SJ | 6310407 | Glass breaker detector universal with relay output, glued spiral cable in quality PUR with RJ12 connector and junction box JB 103-6 |
