E-NR: 6309599
JB 370-2

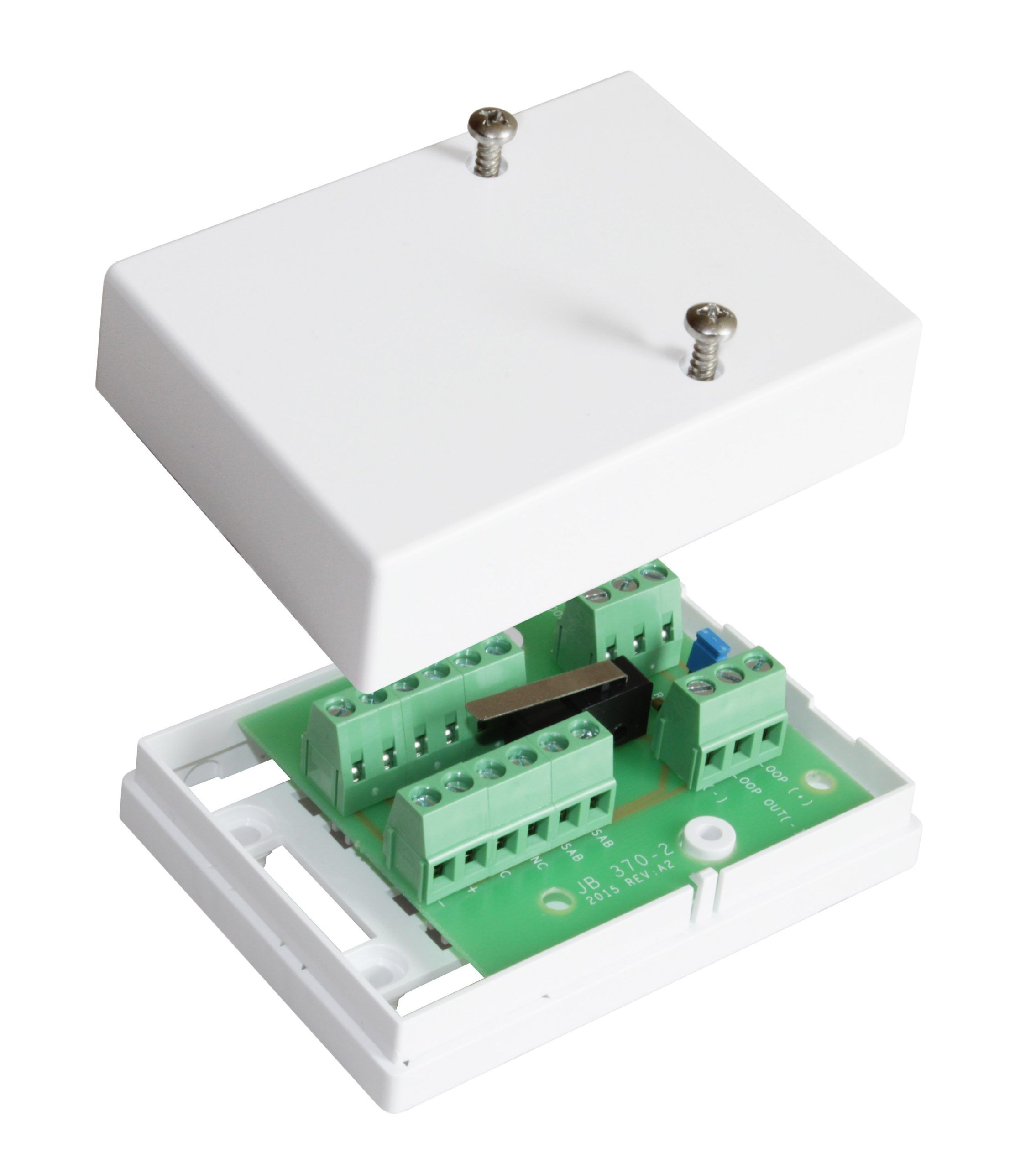

Junction Box for GD 370 and GD 470 Glass Break Detectors
JB 370-2 is a junction box which simplifies the installation of the GD 370 glass break detector. The junction box connects max 2 GD 370 with IU 370 and/or multiple JB 370/JB 370-2/JB 370-5. JB 370-2 is equipped with a built-in resistor for termination of glass break (optional with jumper). It also has tamper protection.
When installing multiple GD 370 in a location which allows for a common junction point JB 370-2 is an excellent choice of junction box.
| Attributes | Value |
|---|---|
| Contact rating | 48 VDC / 100 mA |
| Dimensions (L x W x H) mm | 90 x 66 x 30 |
| Product type | Connection accessories |
| Environment | Indoor |
| Connection terminal | Pairing, Tamper protection |
| Terminal type | Screw |
| Series | JB-Series |
| Enclosure | Plastic |
| Product line | Alarmtech |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| JB 370 | 6309599 | Junction box for GD 370 |
