Door loop with RJ 12 connection, spiral cable

E-NR: 6310768

Cable length
Colour

Overview

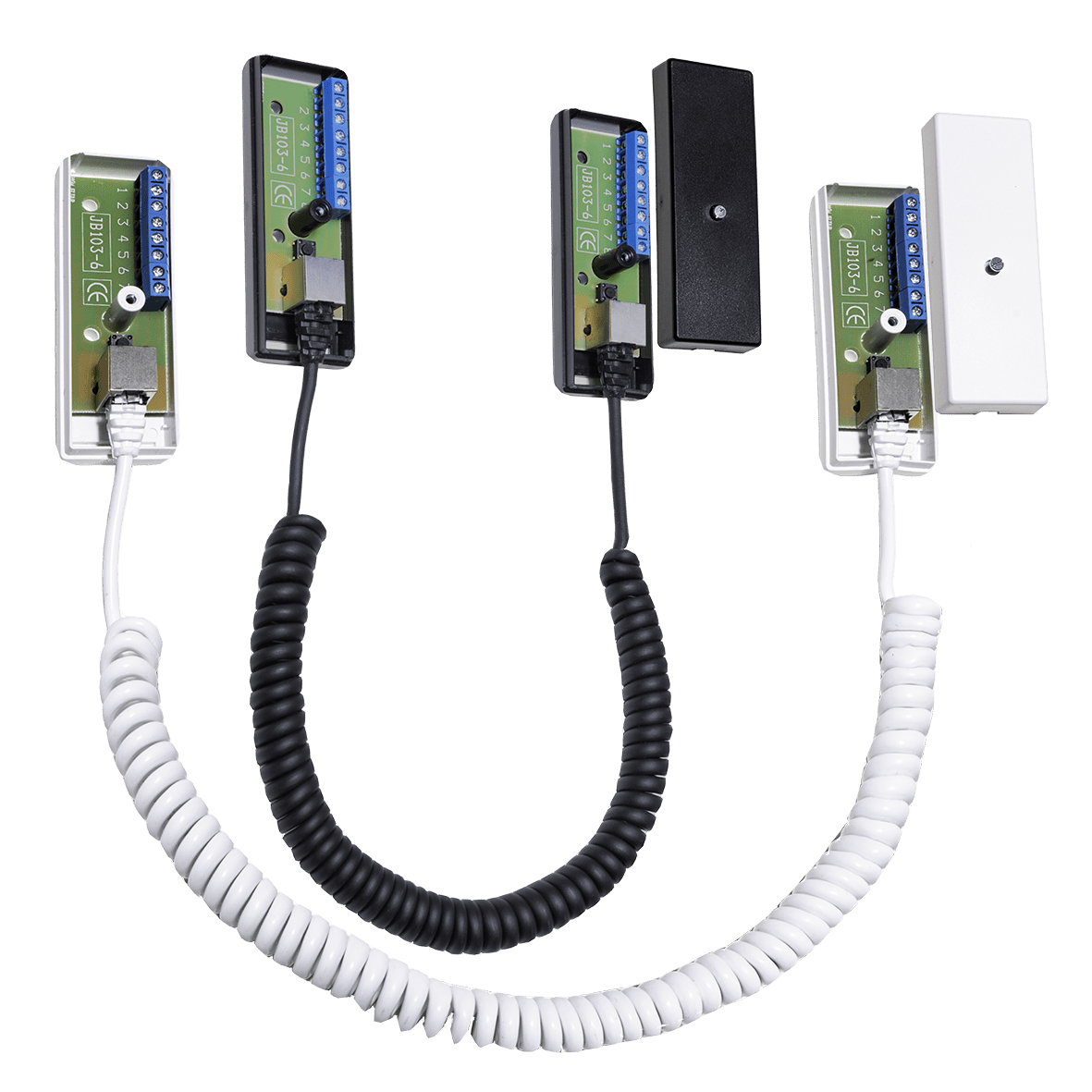

DL RJ12 is a door loop that consists of a 6-pole flexible spiral cable with RJ12 modular connector at both ends and two junction boxes (JB 103-6) with modular connector connection and 8 screw connections of which 2 are for the opening contact.

The door loop is intended for sliding doors, turning windows and other objects where a flexible cable is needed in alarms and access systems.

The junction box is equipped with cable relief protection for the modular connector by the cover locking the cable grooves against the base for secure installation. The screw connections have a lift function for safe mounting. The junction box has a tamper contact for protection against opening the enclosure. The cable is made of PUR, which means that it is more elastic and durable than a PVC cable. The cable is available in two sizes, 100 cm and 250 cm (recommended extended length). The box and the cable are available in black or white color. Connectable conductor area max 1.5 mm2

Details
Attributes Value
Colour

White, Black
Housing material

ABS Plastic
Connection

9 screw terminals, RJ12
Contact rating

30 VDC/50 mA
Dimensions (L x W x H) mm

91 x 31 x 23
Product type

Connection accessories
Environment

Indoor
Connection terminal

Pairing, Tamper protection
Frame transfer

Coiled cable
Product line

Alarmtech
Product feature

Surface-mounted

Order information
Product name E-nr Description
DL RJ12-50 6310767 Door loop with RJ12 connection, spiral cable, 50 cm
DL RJ12-100 6310768 Door loop with RJ12 connection, spiral cable, 100 cm
DL RJ12-250 6310769 Door loop with RJ12 connection, spiral cable, 250 cm
DL RJ12-50-BL 6310770 Door loop with RJ12 connection, spiral cable, 50 cm, black
DL RJ12-100-BL 6310771 Door loop with RJ12 connection, spiral cable, 100 cm, black
DL RJ12-250-BL 6310772 Door loop with RJ12 connection, spiral cable, 250 cm, black
