AD 800
Acoustic Glass Break Detector
AD 800 is a new generation of acoustic glass break detector meets the requirements for grade 2 of the new standard EN 50131-2-7-2:2013, corresponding to the recommendations for high security installations.
The detector is designed to acoustically detect intrusion attempts into a protected area by breakage of a window or glass pane. The detector is based on the latest microprocessor technology and has a number of advanced algorithms connected to the acoustics of the room (Digital Room Compensation, DRC). Thanks to these algorithms, the detector can distinguish a glass breakage signal from other interferences and boasts high immunity to false alarms.
Intended for indoor installation, the device can be mounted either on a ceiling or wall, opposite to the protected glass. The detection range spans 165°, which means that one detector can monitor multiple windows in a room. The detector is able to detect standard, tempered and laminated glass.
NOTE: Avoid mounting the detector in the corner of a room, close to louver windows and ventilation grills.
| Attributes | Value |
|---|---|
| Maximum coverage | 9-m radio/ 165° |
| Approvals | class B, EN 50131-2-7-1:2013 Grade 2, F&P, FG, SBSC 16-675 Klass 1/2,INCERT, VdS G117503 |
| Maximum glass surface | 6 x 6 m |
| Supply voltage | 7 – 30 VDC |
| Current consumption | 12 mA @ 12 V, 7.3 mA @ 24 V |
| Alarm output | 50 V DC/peak AC, NC 50 mA, Relay, Rs ≤30 Ω |
| Contact rating | 50 mA, 50 V DC/peak AC, Rs ≤30 Ω |
| Alarm indication | LED |
| Tamper protection / Rating | Yes / 48 VDC / 50 mA |
| Housing material, Colour | ABS Plastic, white |
| Operating temperature | +5°C – +40°C |
| Housing protection class | IP 31 |
| Dimensions (L x W x H) mm | 68 x 109 x 40 |
| Recommended glass surface | laminowane P2, P4 (4 mm + 4 mm), Standardowe (Float 4 mm) |
| Grade | 2 |
| Product type | Detectors |
| Environment | Indoor |
| Product group | Glass break |
| Product feature | Acoustic, Surface-mounted |
| Security certification and approval schemes | EN, F&P, FG, INCERT, SBSC, VdS |
| Security class | 2, B |
| Environmental class | I |
| Product name | E-nr | Description |
|---|---|---|

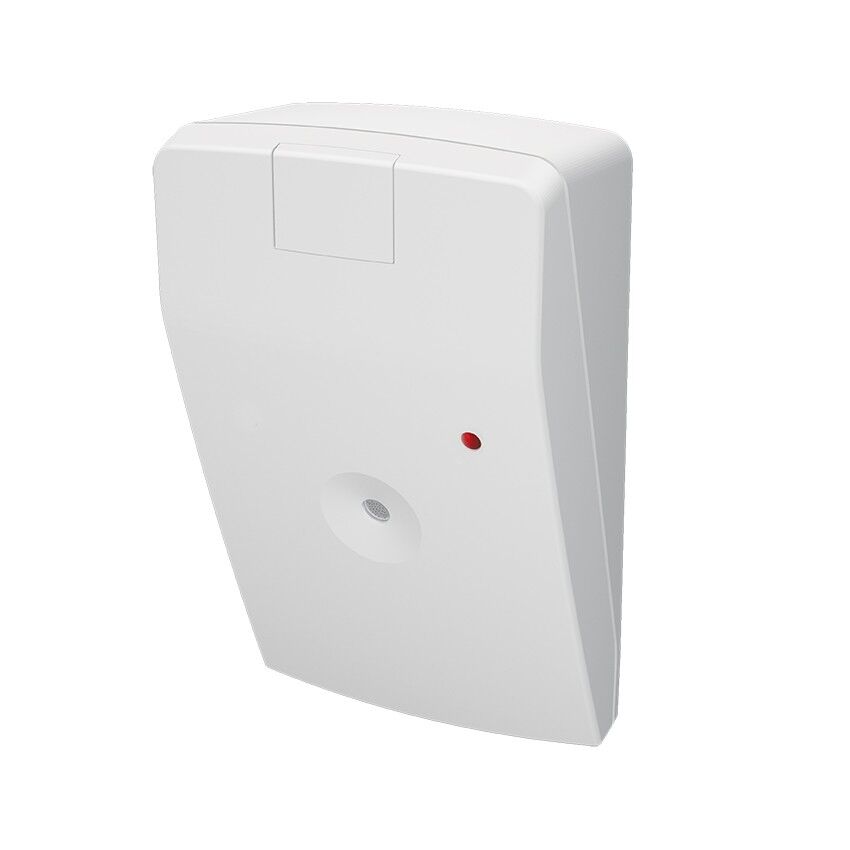

| AD 800 | 6309847 | Acoustic glass break detector |

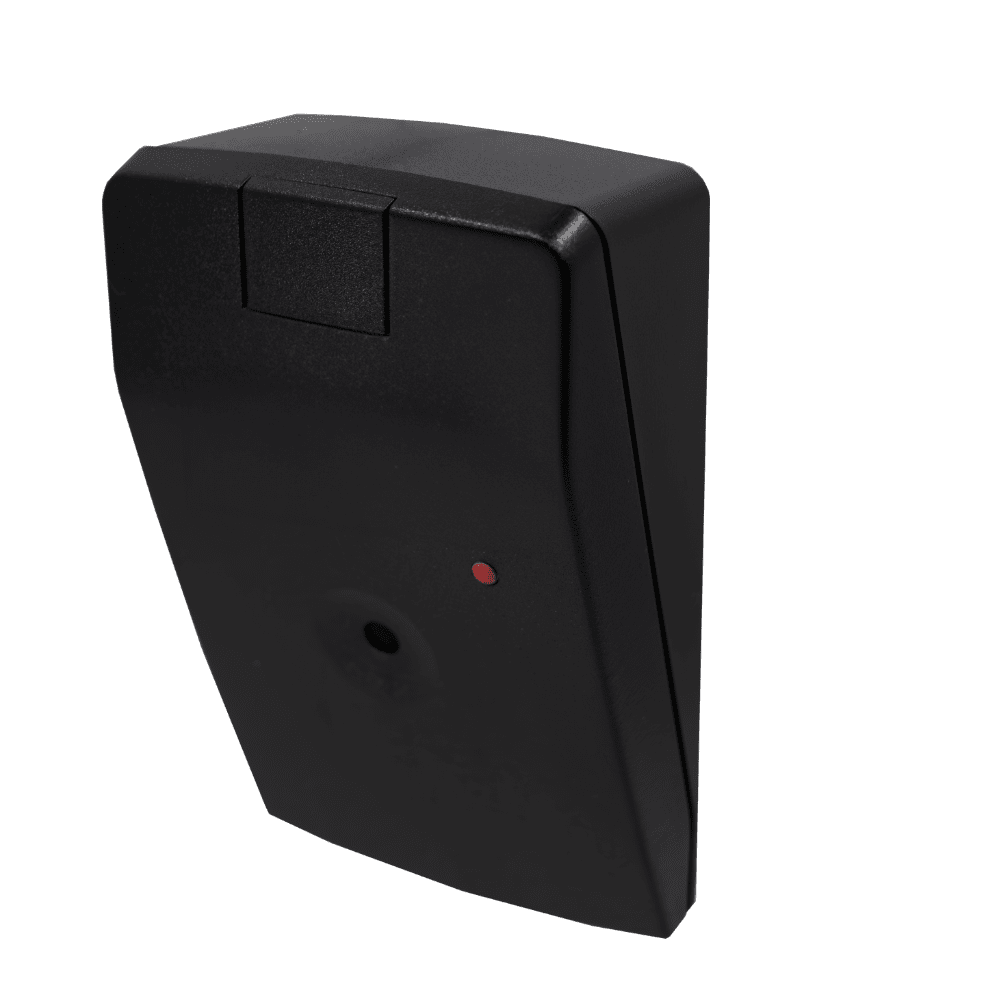

| AD 800-BL | 6310741 | Acoustic glass break detector, Black |
