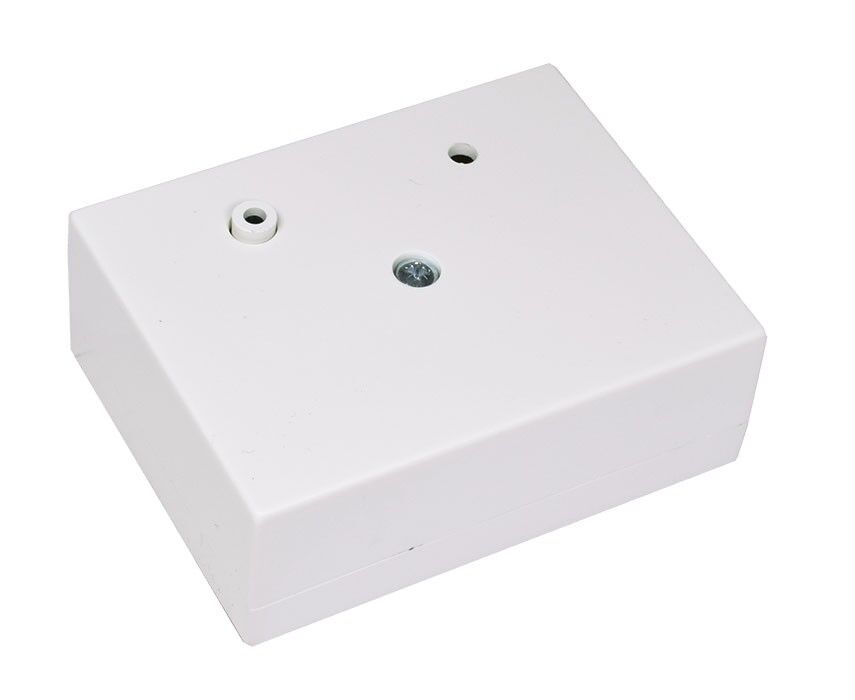

Complete junction box for installation of alarm and access systems.

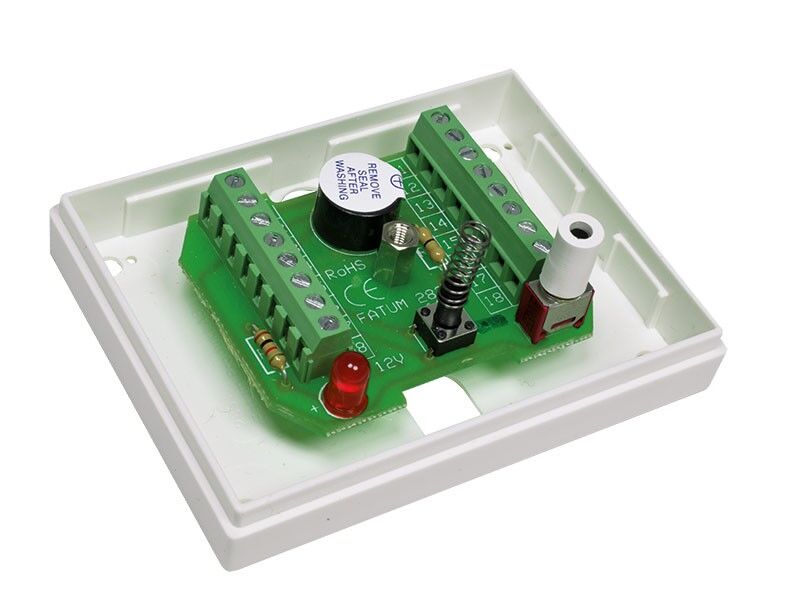

Anti-tampering protected reset junction box, with LED display, buzzer and switch which breaks its output when button is pushed, is used, for example, with advantage for resetting relay glass detectors.
The box is flame-retardant according to UL 94 V-0.
The terminal has screw connection with elevator function.
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
|---|---|
| Cable dimension - screw terminals | 0,14 - 1 mm2 |
| Input max. load | 60 V / 2 A |
| Tamper switch max. load | 50 mA |
