E-NR: 5015207
28319

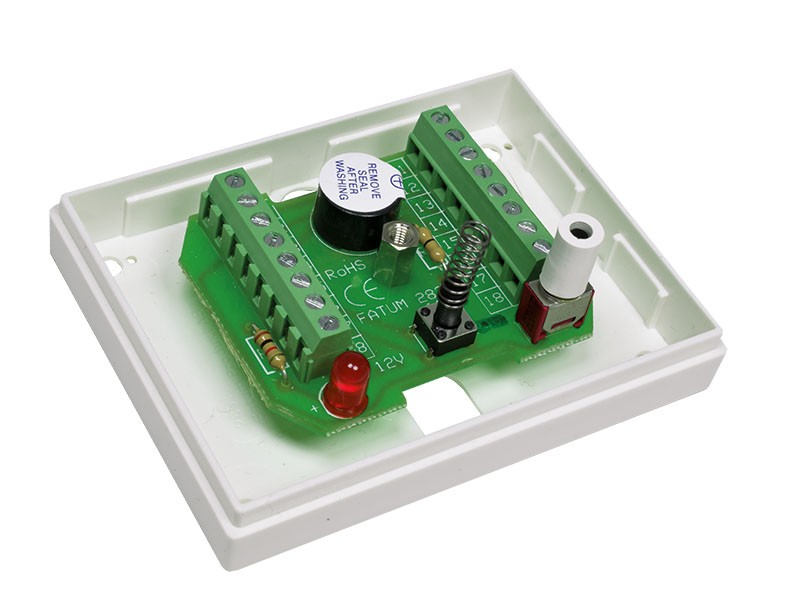

RESET BOX “MINI” 12 V
Complete junction box for installation of alarm and access systems.
Anti-tampering protected reset junction box, with LED display, buzzer and switch which breaks its output when button is pushed, is used, for example, with advantage for resetting relay glass detectors.
The box is flame-retardant according to UL 94 V-0.
The terminal has screw connection with elevator function.
| Attributs | Valeur |
|---|---|
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Section câble – borniers | 0,14 – 1 mm2 |
| Tension d’entrée max. | 60 V / 2 A |
| Intensité autoprotection max. | 50 mA |
| Type de produit | Matériel de raccordement |
| Environnement | Intérieur |
| Type de bornier | Vis/vis |
| Série | Mini-série |
| Boîtier | Plastique |
| Taille du boîtier | Mini |
| Gamme de produits | Fatum |
| Caractéristique du produit | En surface |
| Nom du produit | E-nr | Description |
|---|---|---|
| 28319.03 | 5015207 | Junction Box Mini; RJ 45; Tamper Protected; Screw |
