TIME RELAY BOX “MINI” WITH “FLIP-FLOP” FUNCTION
E-NR: 5010316
Terminal type

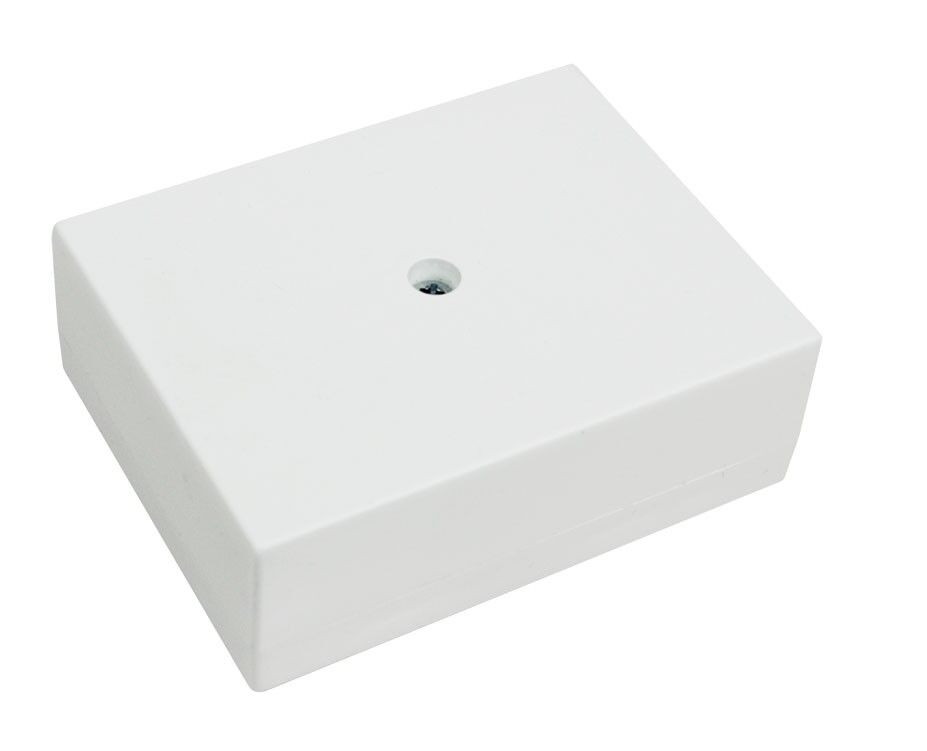

Complete junction box for installation of alarm and access systems.
Time relay that enables you to control loads up to 2A / 30V with a magnetic contact or low voltage detector.

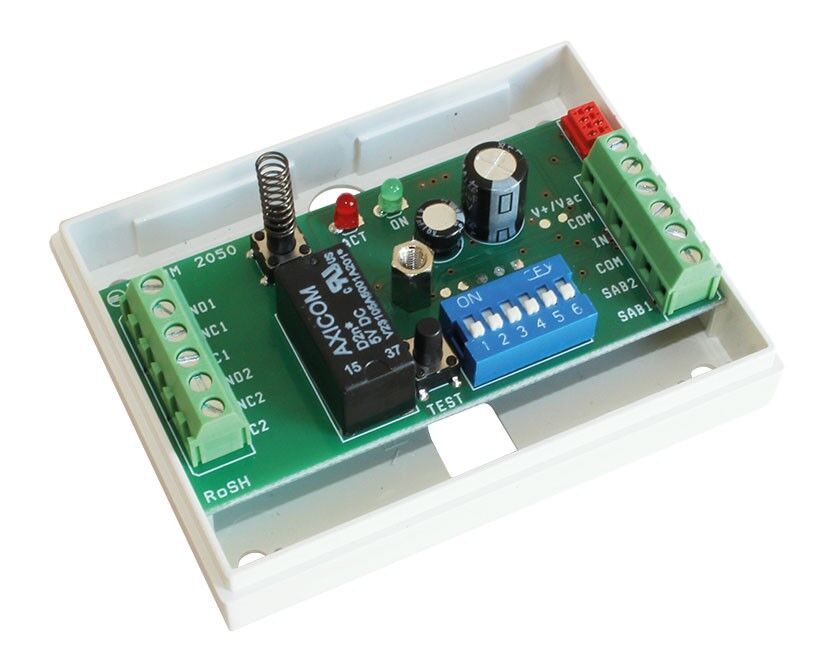

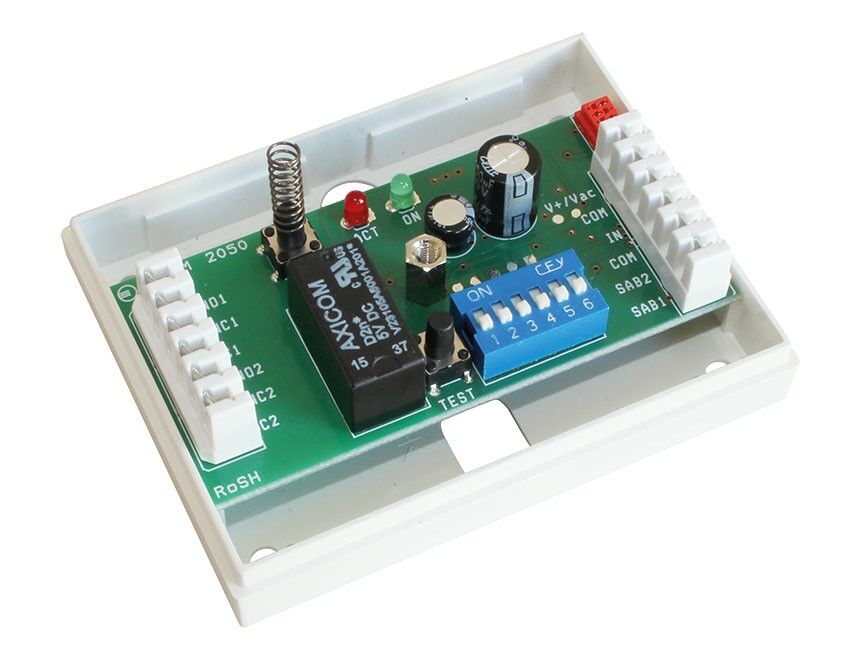

Built-in programmable timer circuit that controls switching on and off. Time control is set with a DIP switch from 0 seconds to 8 hours.
The terminal has a dual switching relay (NC / NO) function. Can be powered by either AC or DC.
Flip-flop function, that is, the relay output changes status after each change of input (also called asynchronous t flip-flop).
| Attributes | Value |
|---|---|
| Terminal type | LSA/LSA, Screw/screw |
| Supply voltage | AC 8-20 V, DC 7-30 V |
| Current consumption | @12 VDC – 18 mA, @24 VDC – 11mA |
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Cable dimension – LSA slots (mm) | Ø 0,4 – 0,7 |
| Cable dimension – screw terminals | 0,14 – 1 mm2 |
| Tamper switch max. load | 50 mA |
| Relay contact max. load | 30 V / 2 A |
| Product type | Connection accessories |
| Environment | Indoor |
| Accessory type | Relay board, Timer relay |
| Connection terminal | Contact configuration, Tamper protection |
| Series | Mini series |
| Enclosure | Plastic |
| Enclosure size | Mini |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 28050.01 | 5010316 | Time Relay Box; 2A/30V; Tamper Protected; LSA |
| 28050.03 | 5010317 | Time Relay Box; 2A/30V; Tamper Protected; Screw |
