28008
ALARM BOX “MINI” 8 PAIRS
E-NR: 5015200
Terminal type
Complete junction box for installation of alarm and access systems.
Anti-tampering protected 8 pairs junction box.

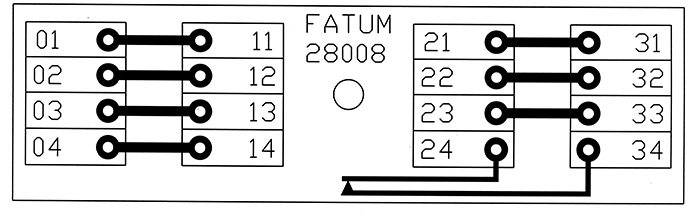

The terminal block has 8 parallel connected terminals, of which 1 pair is intended for anti-tamper switch connection. The box is flame-retardant according to UL 94 V-0.
Available in different options, slot (LSA) or screw connection with lift function.
| Attributes | Value |
|---|---|
| Terminal type | LSA/LSA, LSA/screw, Screw/screw |
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Cable dimension – LSA slots (mm) | Ø 0,4 – 0,7 |
| Cable dimension – screw terminals | 0,14 – 1 mm2 |
| Input max. load | 60 V / 2 A |
| Tamper switch max. load | 50 mA |
| Product type | Connection accessories |
| Environment | Indoor |
| Connection terminal | Pairing |
| Series | Mini series |
| Enclosure | Plastic |
| Enclosure size | Mini |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|

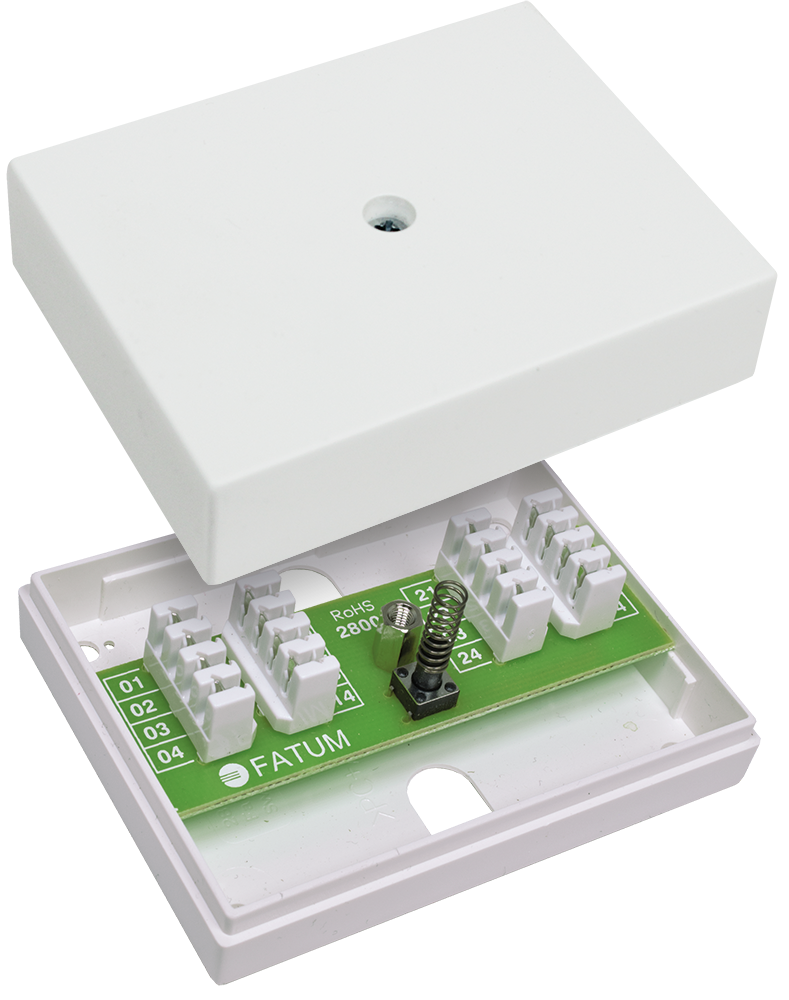

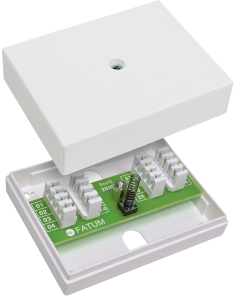

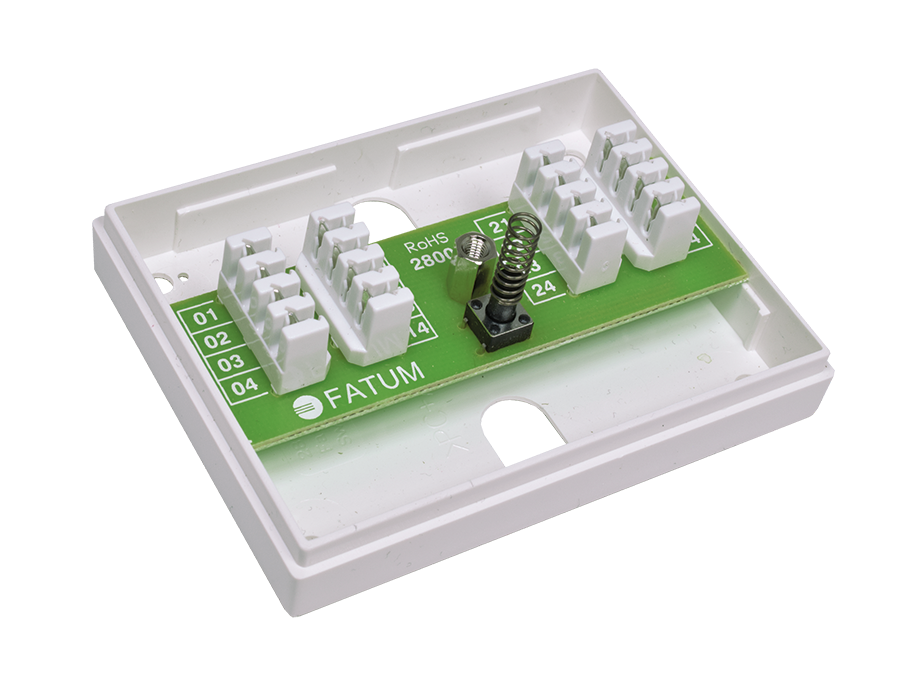

| 28008.01 | 5015200 | Alarm Box Mini; 8 pairs; Tamper Protected; LSA / LSA |

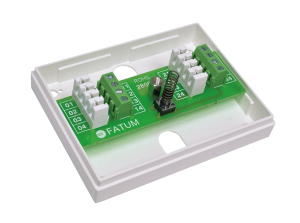

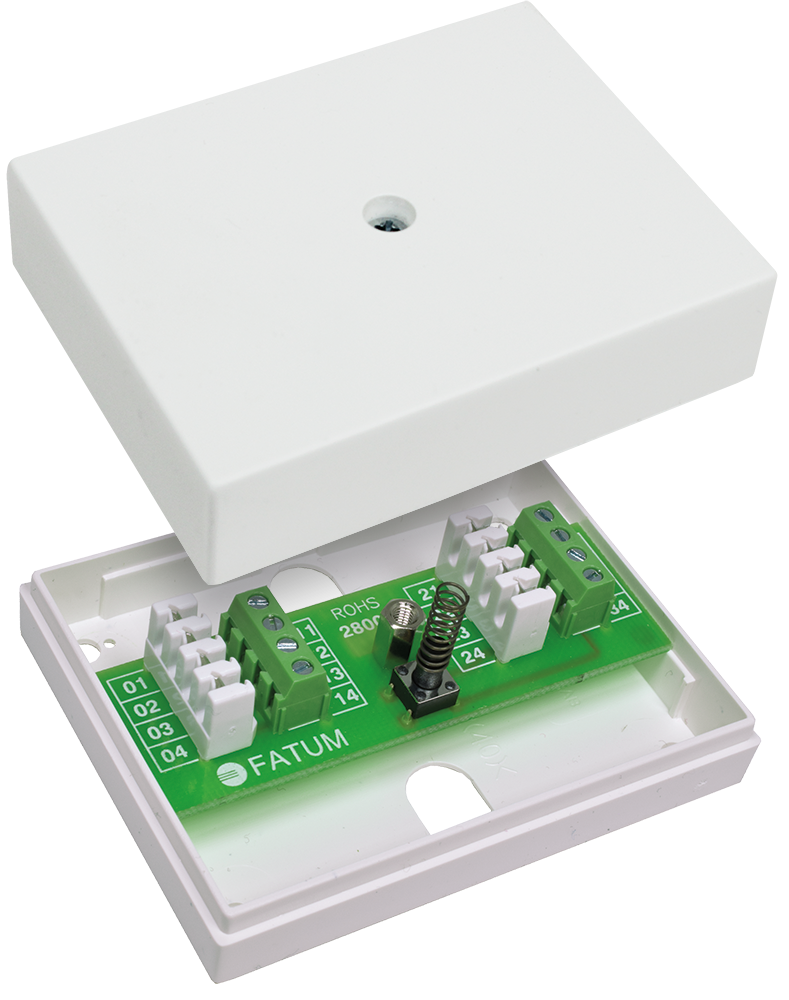

| 28008.02 | 5015202 | Alarm Box Mini; 8 pairs; Tamper Protected; LSA / Screw |

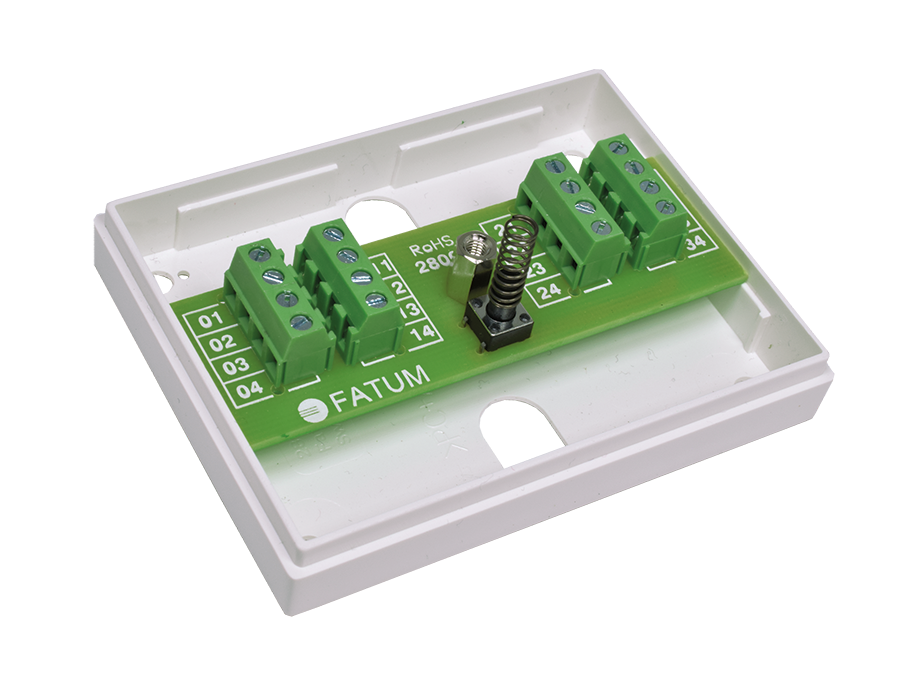

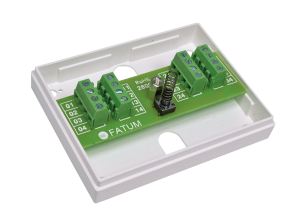

| 28008.03 | 5015204 | Alarm Box Mini; 8 pairs; Tamper Protected; Screw / Screw |
