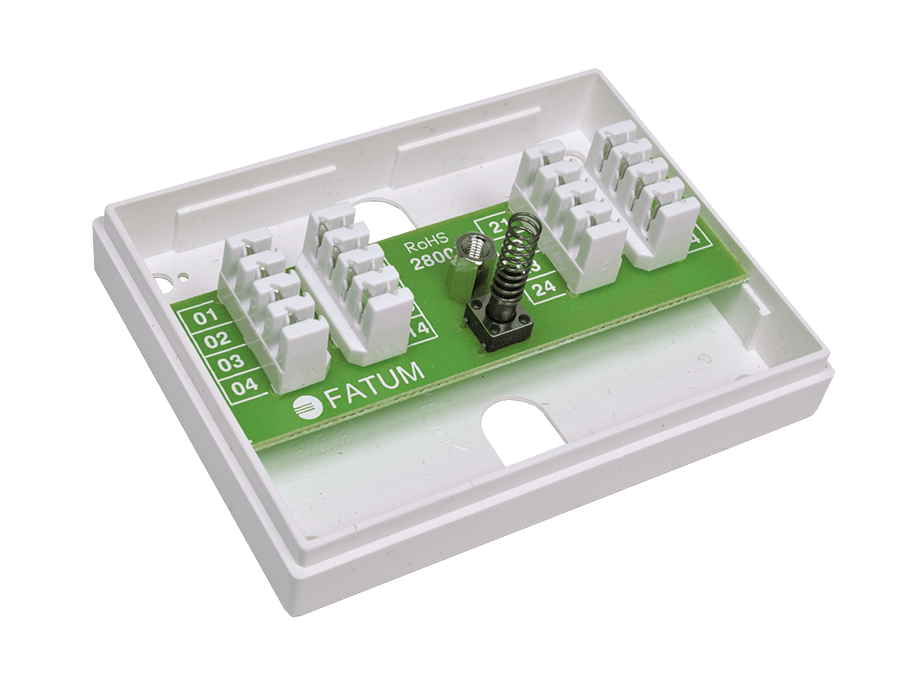

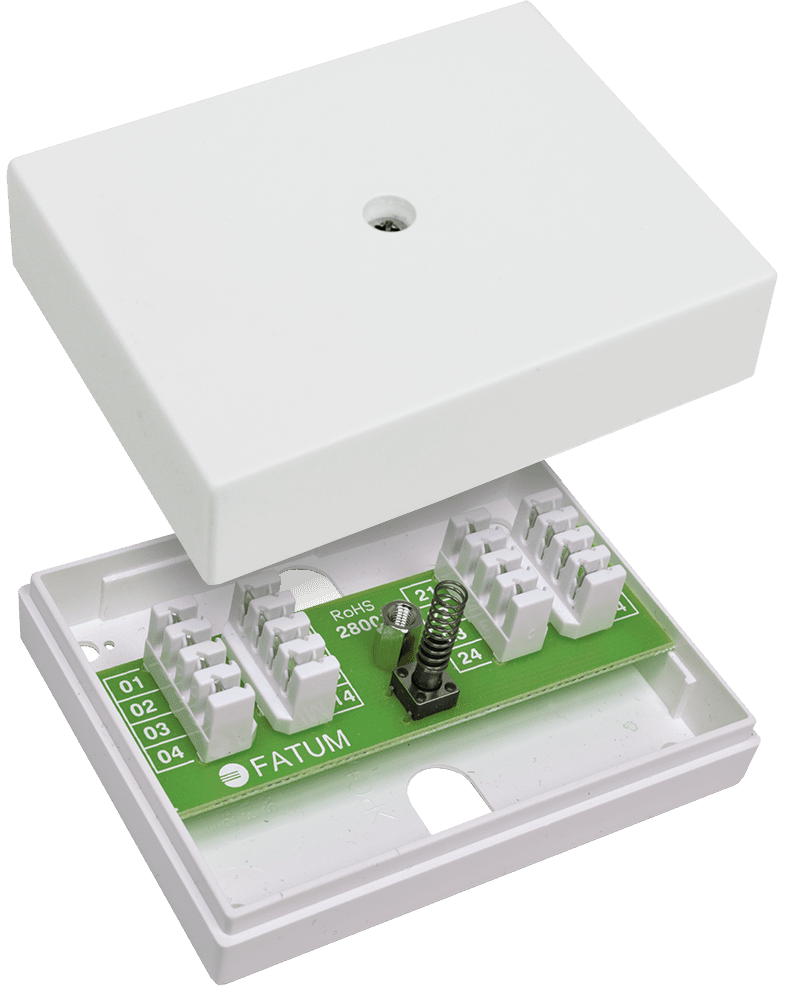

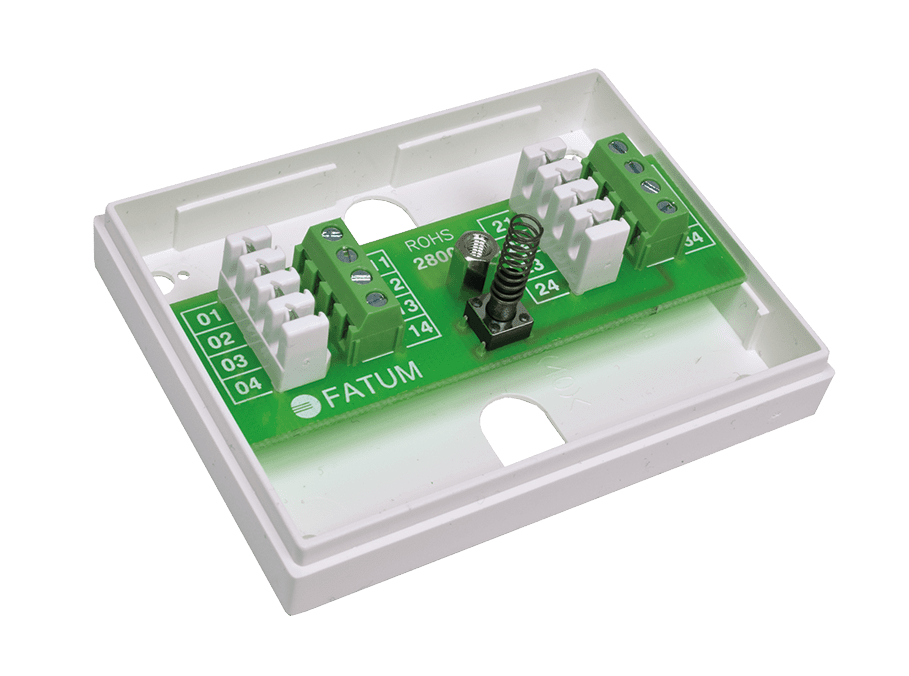

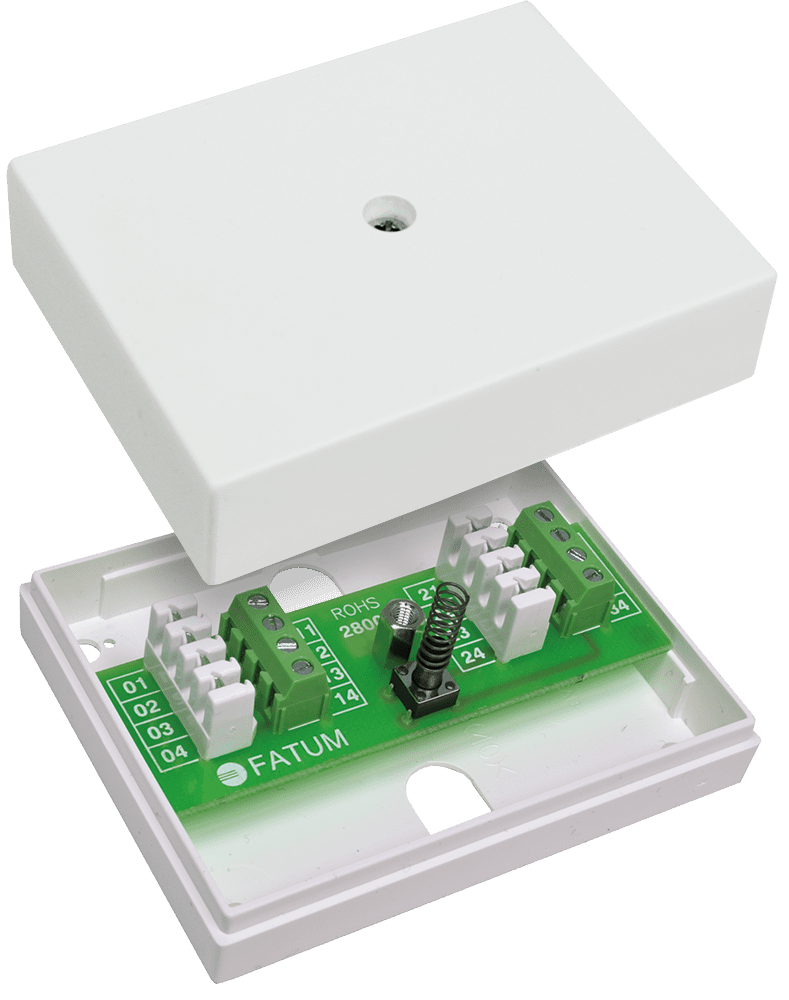

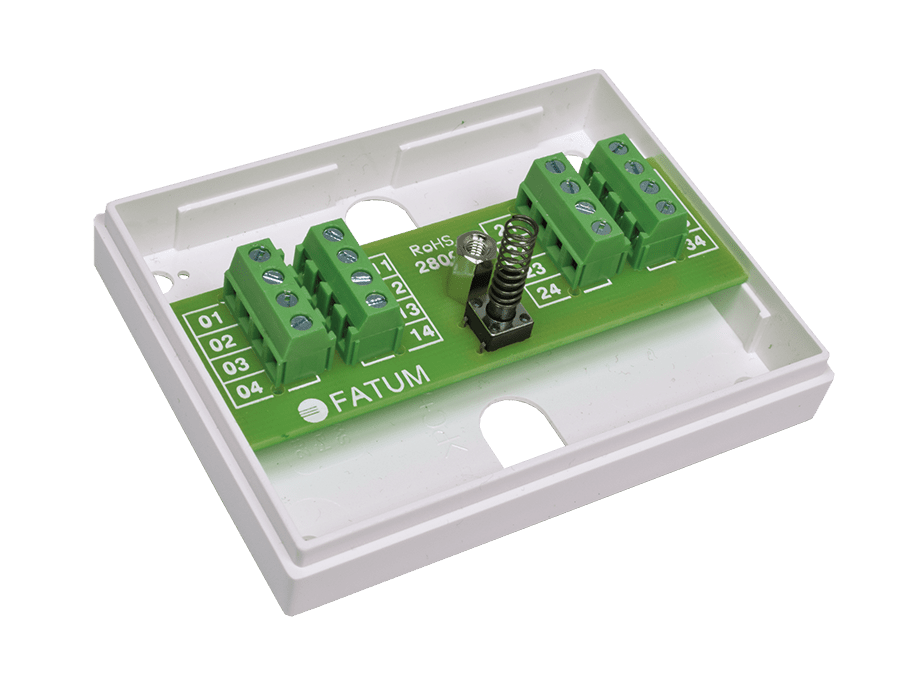

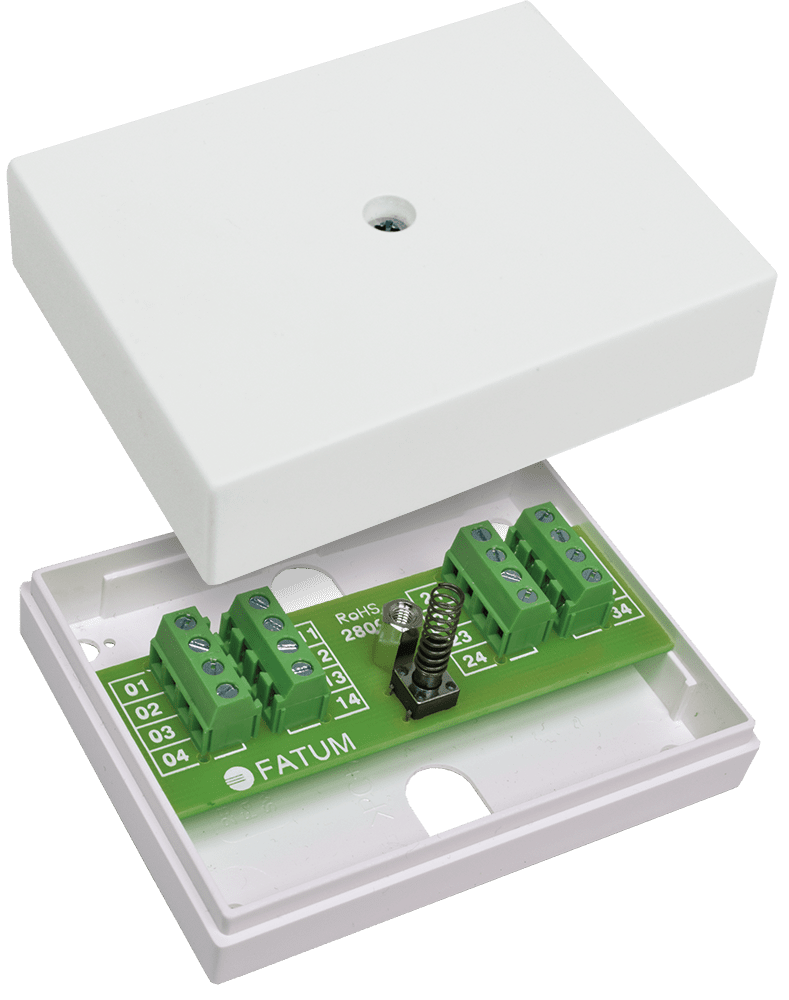

ALARM BOX “MINI” 8 PAIRS
E-NR: 5015200
Complete junction box for installation of alarm and access systems.
Anti-tampering protected 8 pairs junction box.
The terminal block has 8 parallel connected terminals, of which 1 pair is intended for anti-tamper switch connection. The box is flame-retardant according to UL 94 V-0.
Available in different options, slot (LSA) or screw connection with lift function.
| Attributs | Valeur |
|---|---|
| Type de bornier | LSA/LSA, LSA/vis, Vis/vis |
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Section câblage – bornier LSA (mm) | Ø 0,4 – 0,7 |
| Section câble – borniers | 0,14 – 1 mm2 |
| Tension d’entrée max. | 60 V / 2 A |
| Intensité autoprotection max. | 50 mA |
| Type de produit | Matériel de raccordement |
| Environnement | Intérieur |
| Bornier de connexion | Appairage |
| Série | Mini-série |
| Boîtier | Plastique |
| Taille du boîtier | Mini |
| Gamme de produits | Fatum |
| Caractéristique du produit | En surface |
| Nom du produit | E-nr | Description |
|---|---|---|
| 28008.01 | 5015200 | Alarm Box Mini; 8 pairs; Tamper Protected; LSA / LSA |
| 28008.02 | 5015202 | Alarm Box Mini; 8 pairs; Tamper Protected; LSA / Screw |
| 28008.03 | 5015204 | Alarm Box Mini; 8 pairs; Tamper Protected; Screw / Screw |
