E-NR: 6309844
RCM 2

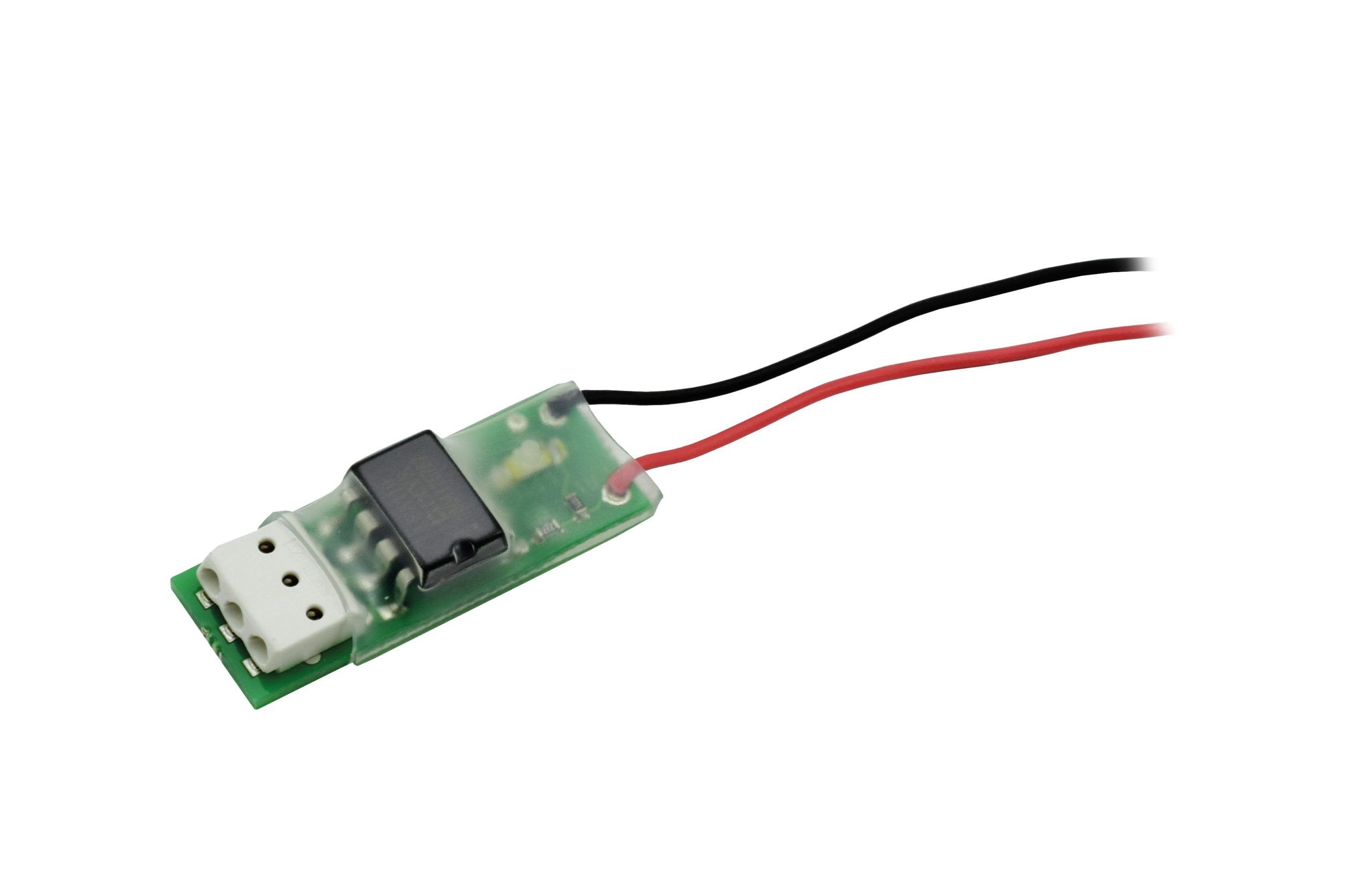

Relay card, 30 V, 1 A
RCM 1 is very small universal relay cards that fit most types of security installations (burglar alarm, passage system, fire alarm, etc.). RCM 1 has alternating relay with wire connection for relay control. The out-put terminals are of “push-in” type. When the voltage is applied, the relay is activated and this is indicated by the LED that is switched on.
| Attributes | Value |
|---|---|
| Supply voltage | 8 – 30 V DC |
| Contact rating | 1 A, 30 V |
| Product type | Connection accessories |
| Dimensions (L x W x H) mm | 31 x 12 x 7 |
| Environment | Indoor |
| Accessory type | Relay board |
| Connection terminal | Contact configuration |
| Product line | Alarmtech |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| RCM 2 | 6309844 |
