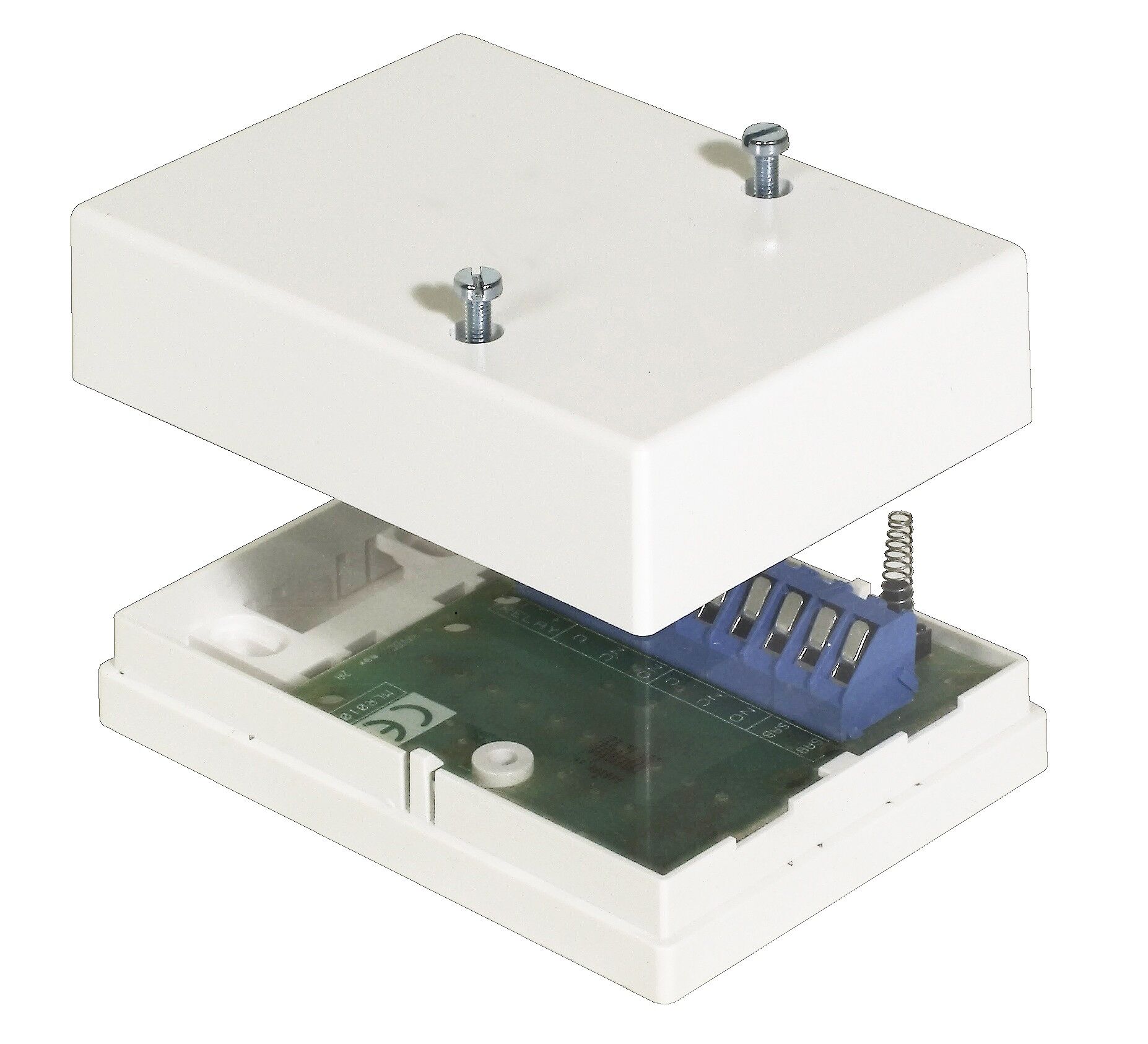

RB 010
Relay box
The RC 010 is a relay card with a dual (2x) alternating (NC / NO) function. Connection is provided via screw terminal with wire protection. Active relay is indicated by LED. The card also has an anti-tamper switch to protect against unauthorised opening if the card is installed, for example, in a JB 200 box.
| Attributes | Value |
|---|---|
| Current consumption | 16 mA @12 VDC / 38 mA @28 VDC |
| Contact rating | 48 VDC / 1 A / 48 VA |
| Tamper protection / Rating | 48 VDC / 50mA |
| Operating temperature | -40 – +70°C |
| Dimensions (L x W x H) mm | 90 x 66 x 35 |
| Relay output | 2 x NC/NO |
| Product type | Connection accessories |
| Environment | Indoor |
| Accessory type | Relay board |
| Connection terminal | Contact configuration |
| Enclosure | Plastic |
| Product line | Alarmtech |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| RB 010 | 6332875 |
