MC 746-E
Magnetic Contact, Surface mount, NC/NO
E-NR: 6310042
Cable length

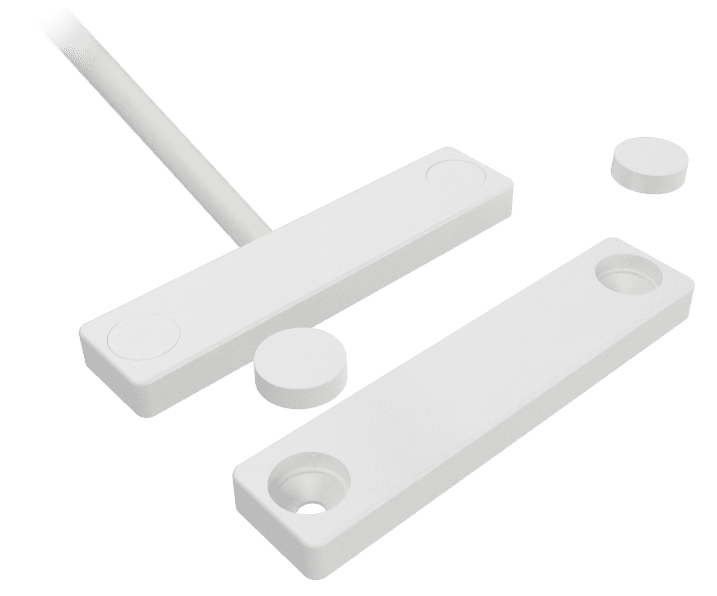

The MC 746-E is a small and thin magnetic contact with change-over (NC/NO) function that can be used in both alarm and access control systems for monitoring e.g. doors and windows against unauthorized opening.
Both the contact and the magnet part are in a water proof (IP 67) plastic housing. The small and thin format makes it especially easy to install in limited spaces, e.g. on shutters and drawers. With lid for the screw holes.
| Attributes | Value |
|---|---|
| Cable length | 2m, 6m, 10m |
| Contact rating | 48 VDC / 250 mA / 5 VA |
| Operating temperature | -40°C – +70°C |
| Housing protection class | IP 67 |
| Make distance (wood) mm | 37 |
| Make distance (steel) mm | X |
| Contact dimensions (L x W x H) mm | 60 x 14 x 5 |
| Magnet dimensions (L x W x H) mm | 60 x 14 x 5 |
| Grade | 2 |
| Product type | Detectors |
| Environment | Indoor, Outdoor |
| Product group | Magnetic contact |
| Product feature | Surface-mounted |
| Security class | 2 |
| Contact function | NC/NO |
| Mounting on steel | With accessories |
| Product name | E-nr | Description |
|---|---|---|
| MC 746-E | 6310042 | Magnetic contact, NC, surface mount, 2 m cable |
| MC 746-E-6 | 6310044 | Magnetic contact, NC, surface mount, 6 m cable |
| MC 746-E-10 | 6310043 | Magnetic contact, NC, surface mount, 10 m cable |
