MC 740 BL
This product has been discontinued and replaced with: MC 740-E
E-NR: –
Cable length

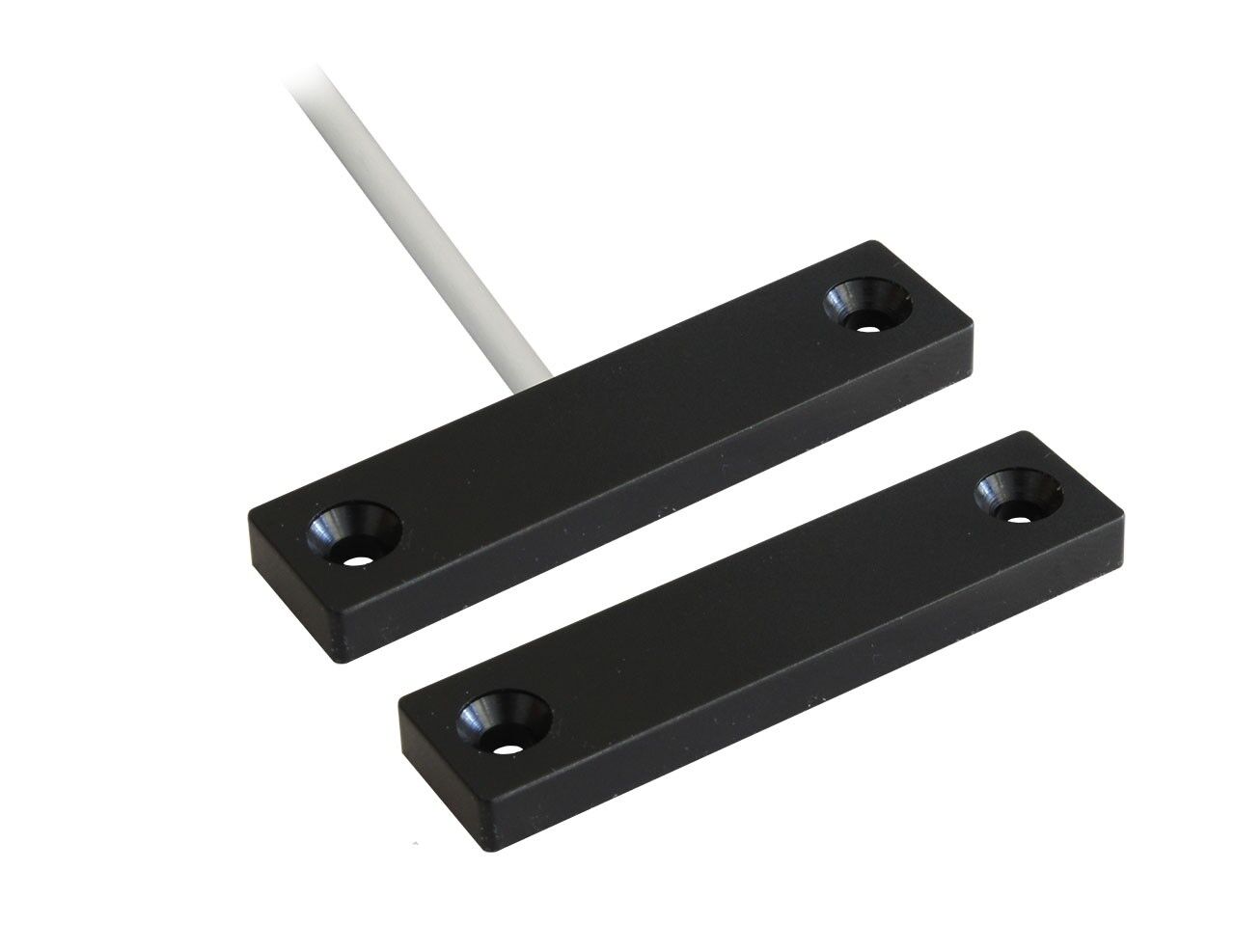

MC 740 is a small and thin magnetic contact with NC function that can be used in both alarm and access control systems for monitoring e.g. doors and
windows against unauthorized opening.
Both the contact and the magnet part are in a water proof (IP 67) plastic housing.
The small and thin format makes it especially easy to install in limited spaces, e.g. on shutters and drawers.
| Attributes | Value |
|---|---|
| Cable length | 2m, 6m |
| Approvals | Class 1/2,F&P, class B, Class IIIA, EN 50131-2-6 Grade 2, FG, INCERT B-582-0013, SBSC 9-216, VdS G 116504 |
| Contact rating | 48 VDC / 500 mA / 10 VA |
| Operating temperature | -40°C – +70°C |
| Housing protection class | IP 67 |
| Magnet type | Alnico 5 |
| Make distance (wood) mm | 37 |
| Make distance (steel) mm | 7 |
| Contact dimensions (L x W x H) mm | 58 x 14 x 5 |
| Magnet dimensions (L x W x H) mm | 58 x 14 x 5 |
| Security certification and approval schemes | EN, F&P, FG, INCERT, SBSC, VdS |
| Security class | 2, B |
| Environmental class | IIIA |
| Product name | E-nr | Description |
|---|---|---|
| MC 740-2BL | Magnetic contact, black, surface mount, NC, 2 m cable | |
| MC 740-6BL | Magnetic contact, black, surface mount, NC, 6 m cable |
