E-NR: 6332823
MC 640-5

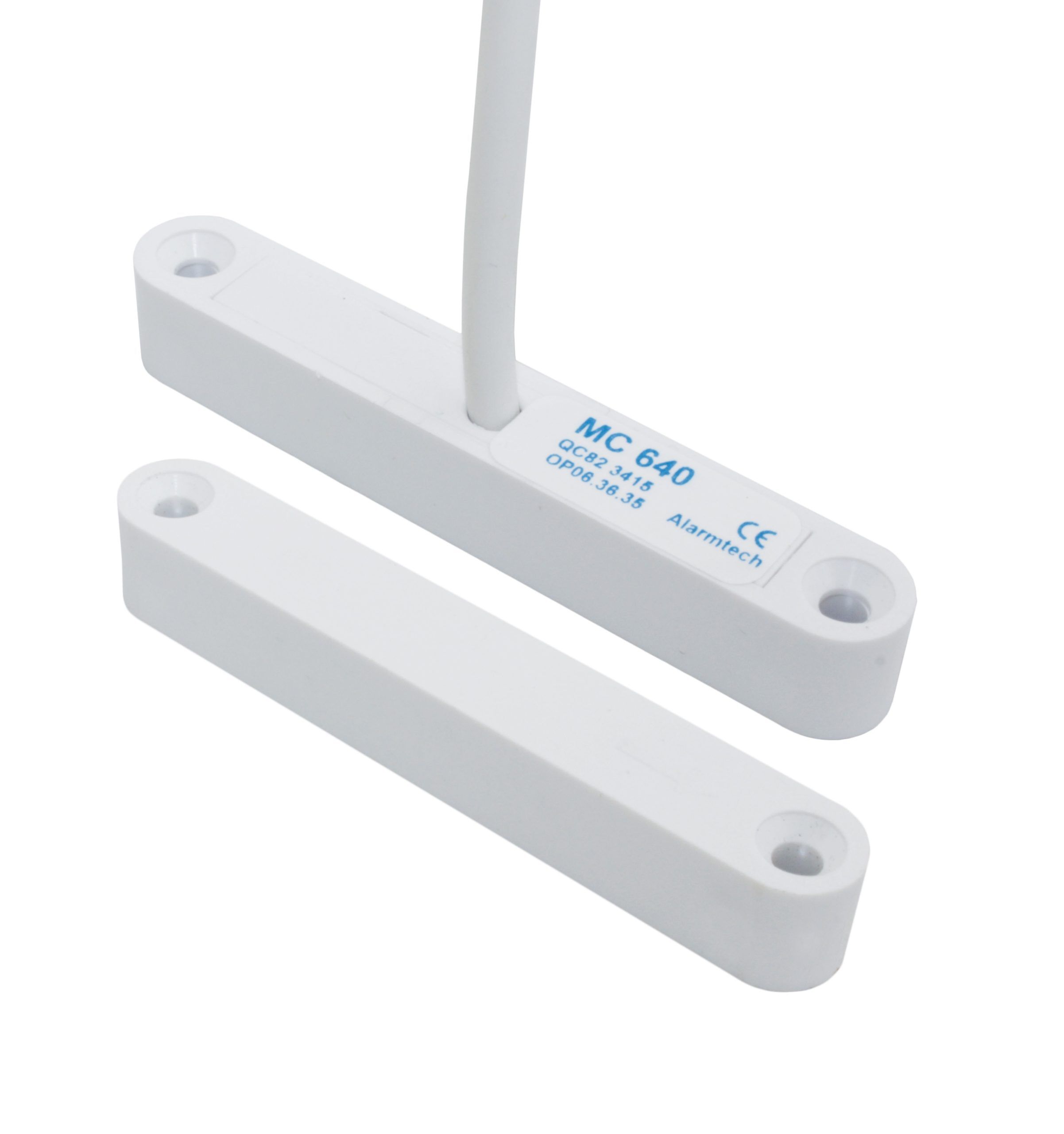

Magnetic contact, Recessed and surface mount, NC
MC 640-5 is a magnetic contact with NC function that can be used in both alarm and access control systems for monitoring e.g. doors and windows against unauthorized opening. Both the contact and the magnet part are in a water proof (IP 67) plastic housing for recessed and surface installation. The accessory MC 600-1 is a flange for installation in hollow profiles or window frames.
| Attributes | Value |
|---|---|
| Approvals | Class IIIA VdS G 199523 Class B, EN-ST-000093 Grade 2, F&P, FG, INCERT B-582-1003 SBSC 9-215 Class 2 |
| Contact rating | 48 VDC / 500 mA / 10 VA |
| Housing material, Colour | ABS Plastic |
| Housing protection class | IP 67 |
| Make distance (wood) mm | 24 |
| Make distance (steel) mm | 6 |
| Contact dimensions (L x W x H) mm | 61 x 9 x 9 |
| Product type | Detectors |
| Magnet dimensions (L x W x H) mm | 61 x 9 x 9 |
| Environment | Indoor, Outdoor |
| Product group | Magnetic contact |
| Product feature | Flush-mounted |
| Security certification and approval schemes | EN, FG, INCERT, SBSC, VdS |
| Security class | 2, B |
| Environmental class | IIIA |
| Contact function | NC |
| Mounting on steel | With accessories |
| Product name | E-nr | Description |
|---|---|---|
| MC 640-5 | 6332823 | Recessed magnetic contact, NC, 5 m cable |

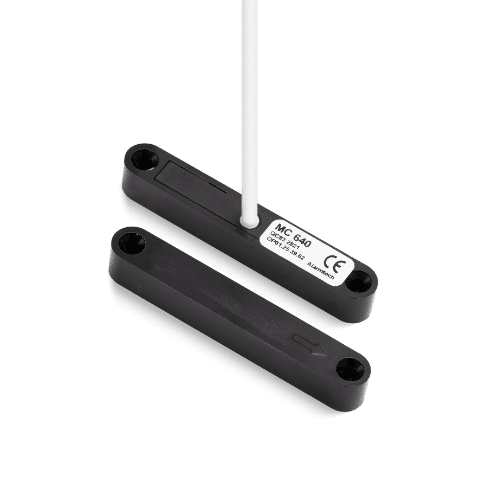

| MC 640-5-BL | Recessed magnetic contact, NC, 5 m cable, black |
