E-NR: 6332820
MC 472
High Security Contact, Surface mount, NC/NO

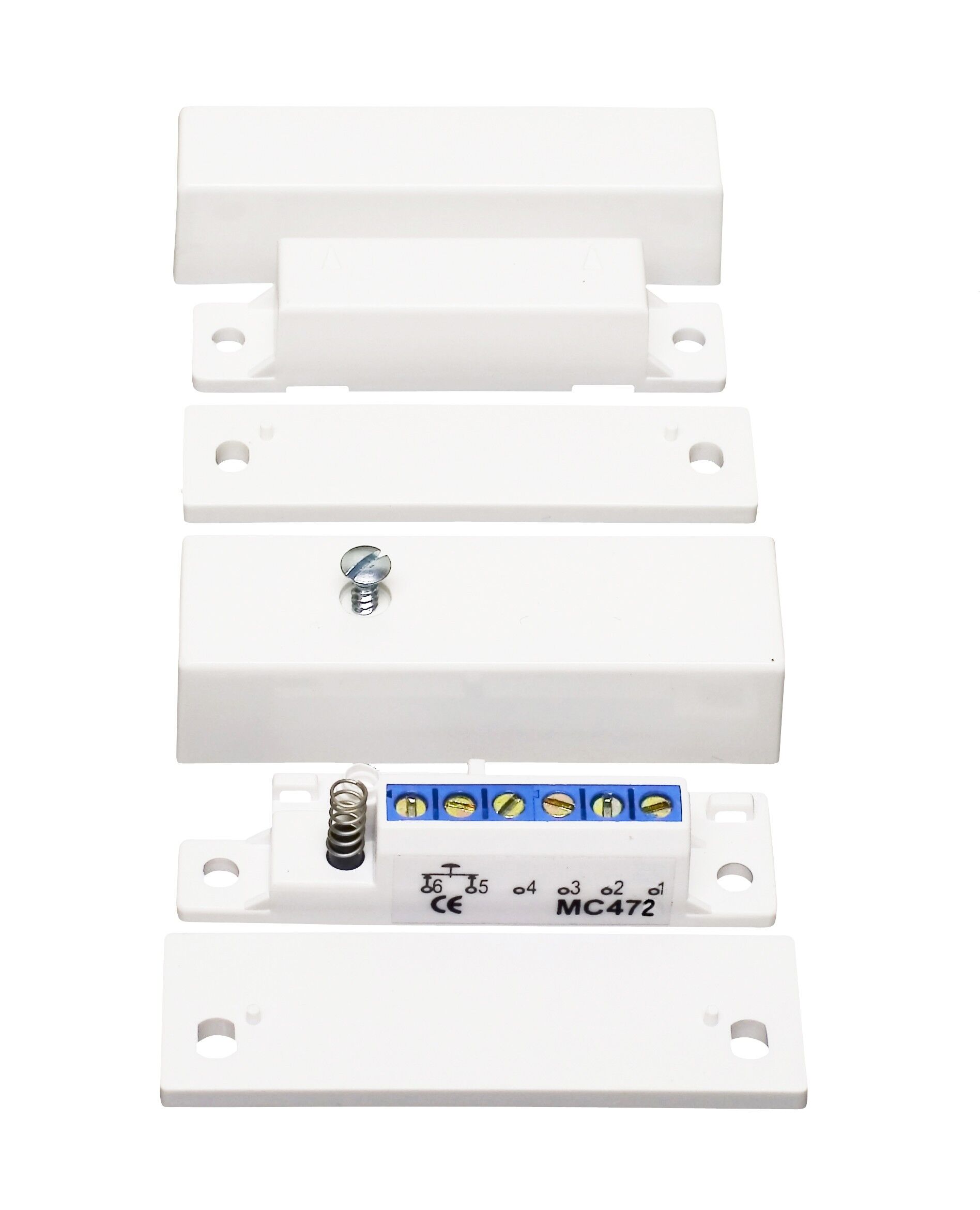

MC 472 is a surface mount high security contact with change over NC/NO function with 6 screw terminals and sabotage contact. The contact is specially designed for use in banks, museums, art galleries, stores, etc.
It has screw terminals with wire protection and a sabotage contact. Enclosed are plastic spacers for installation on steel.
The contact can be supplemented with different accessories such as brackets and extra strong magnets.
| Attributes | Value |
|---|---|
| Approvals | Class 3/4,NBÚ CZ Typ 3, class II, SBSC 9-217 |
| Contact rating | 48 VDC / 250 mA / 5 VA |
| Operating temperature | -40°C – +70°C |
| Housing protection class | IP 43 |
| Make distance (wood) mm | 21 |
| Make distance (steel) mm | 5 |
| Contact dimensions (L x W x H) mm | 65 x 20 x 15 |
| Magnet dimensions (L x W x H) mm | 65 x 14 x 10 |
| Sabotage distance (wood) mm | 10 |
| Product type | Detectors |
| Environment | Indoor |
| Product group | Magnetic contact |
| Product feature | Surface-mounted |
| Contact function | NC/NO |
| Mounting on steel | With accessories |
| Product name | E-nr | Description |
|---|---|---|
| MC 472 | 6332820 | High security contact, NC/NO, Surface mount |
| MC 472-B | 6332892 | High security contact, NC/NO, Surface mount, brown |
