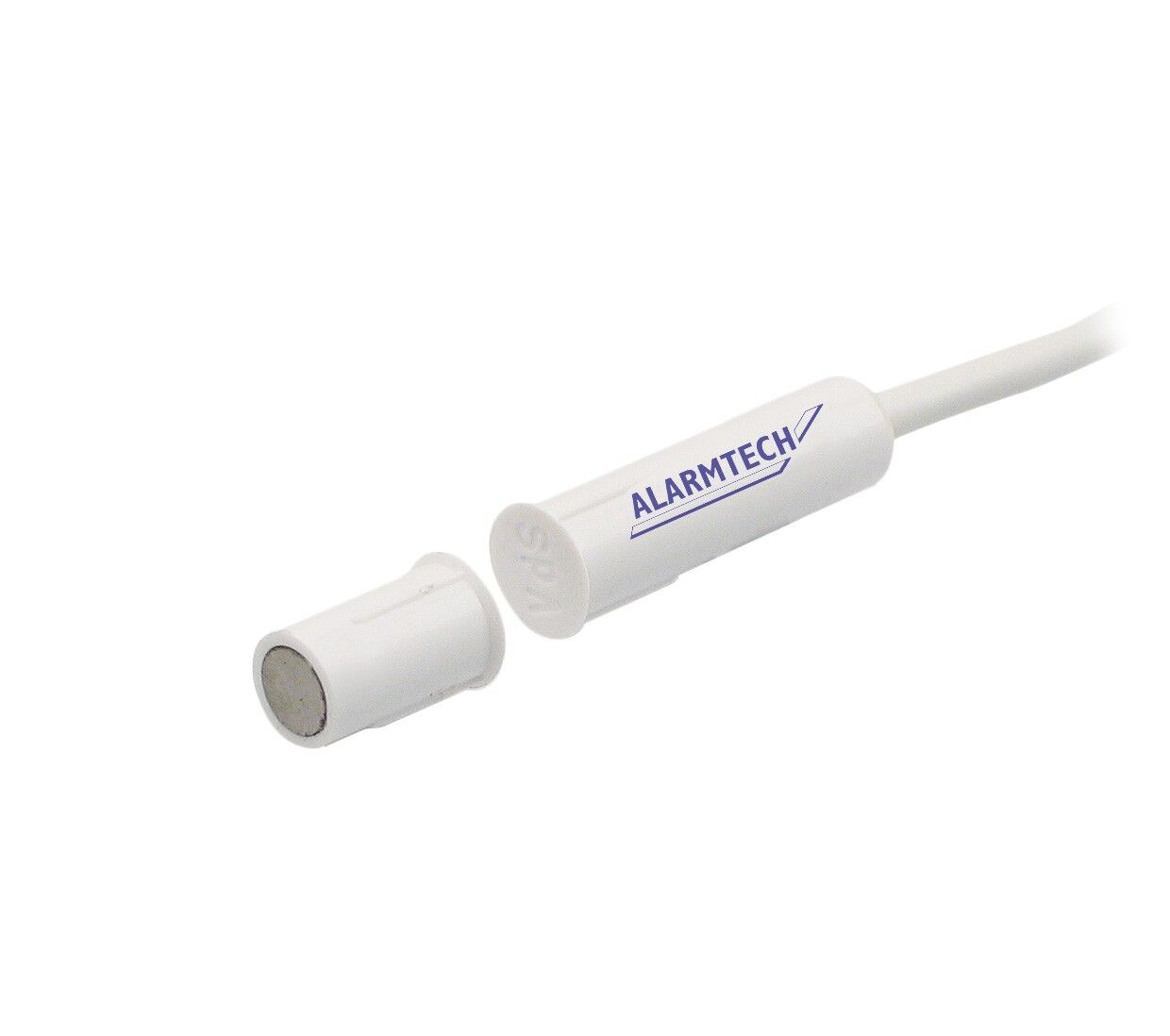

MC 340S
Magnetic Contact, Recessed mounting, NC
E-NR: 6332764
Cable length
MC 340S is a universal magnetic contact with NC function and an extra short magnet that can be used in both alarm and access control systems for
monitoring e.g. doors and windows against unauthorized opening.
Both the contact and the magnet part are in a water proof (IP67) plastic housing, which enables easy installation into wood without additional accessories.
| Attributes | Value |
|---|---|
| Cable length | 2m, 5m, 10m |
| Approvals | Class IIIA, EN 50131-2-6 Grade 2, INCERT B-582-1003, SBSC 9-200, VdS G 196670 Class B |
| Contact rating | 48 VDC / 500 mA / 10 VA |
| Operating temperature | -40°C – +70°C |
| Housing protection class | IP 67 |
| Drill diameter mm | 8 |
| Make distance (wood) mm | 18 |
| Make distance (steel) mm | X |
| Contact dimensions (L x Ø) mm | 26 x 9 |
| Magnet dimensions (L x Ø) mm | 14 x 9 |
| Grade | 2 |
| Environment | Outdoor |
| Contact function | NC |
| Mounting on steel | With accessories |
| Product name | E-nr | Description |
|---|---|---|
| MC 340S | 6332764 | Recessed high security contact, NC, 2 m cable |
| MC 340S-5 | 6332765 | Recessed high security contact, NC, 5 m cable |
| MC 340S-10 | 6332766 | Recessed high security contact, NC, 10 m cable |
