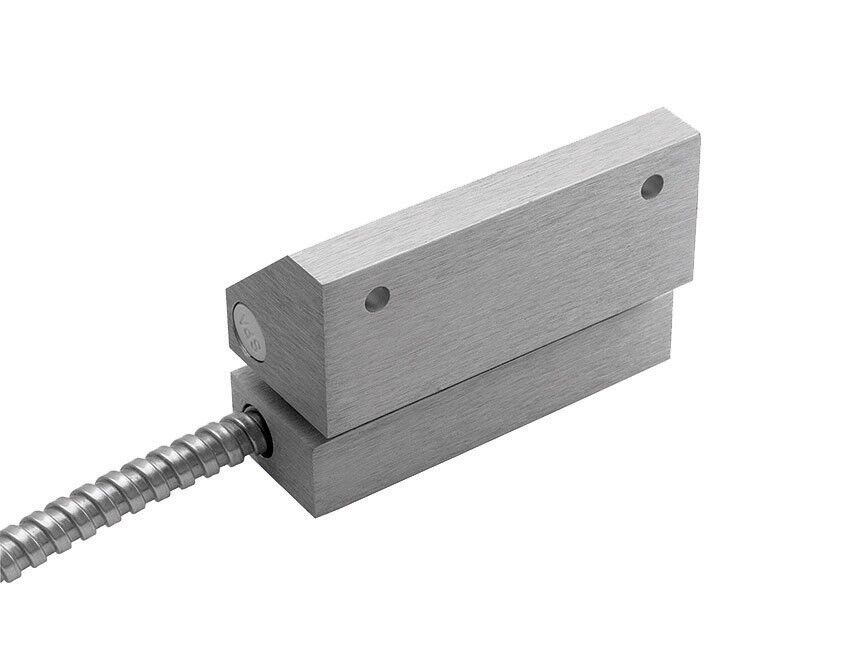

The MC 270-S48 set is intended for use in exposed environments where a more durable high security contact is needed, such as garage doors, industrial gates, etc.
The set consists of MC 270-C contact part with NC contact function installed in MC 200-4 Al housing and an extra strong magnet in MC 200-8 Al housing, which allows for a wide opening gap.MC 270-S48 set contains a 1 m long stainless steel Flexi-tube protection (MC T4). Contact and magnet are paired. To ensure proper functionality, do not replace the contact or magnet alone.
With appropriate accessories, the contact can even be installed in steel doors, safety valves, garage doors, etc.
The contact part is sealed with special epoxy, making it water resistant.
| Approvals | Class 3/4,F&P, Class IIIA, EN 50131-2-6 Grade 3, INCERT B-582-0013, NBÚ CZ Typ 3, NBÚ SK Typ 3, SBSC 9-205, VdS G 116028 Class C |
|---|---|
| Contact rating | 48 VDC / 500 mA / 10 VA |
| Operating temperature | -40°C – +70°C |
| Housing protection class | IP 67 |
| Make distance (wood) mm | 33 |
| Housing material | Aluminium |
| Contact dimensions (L x W x H) mm | 74 x 25 x 15 |
| Magnet dimensions (L x Ø) mm | 74 x 30 x 30 |
| Sabotage distance (wood) mm | 20 |
| Grade | 3 |
