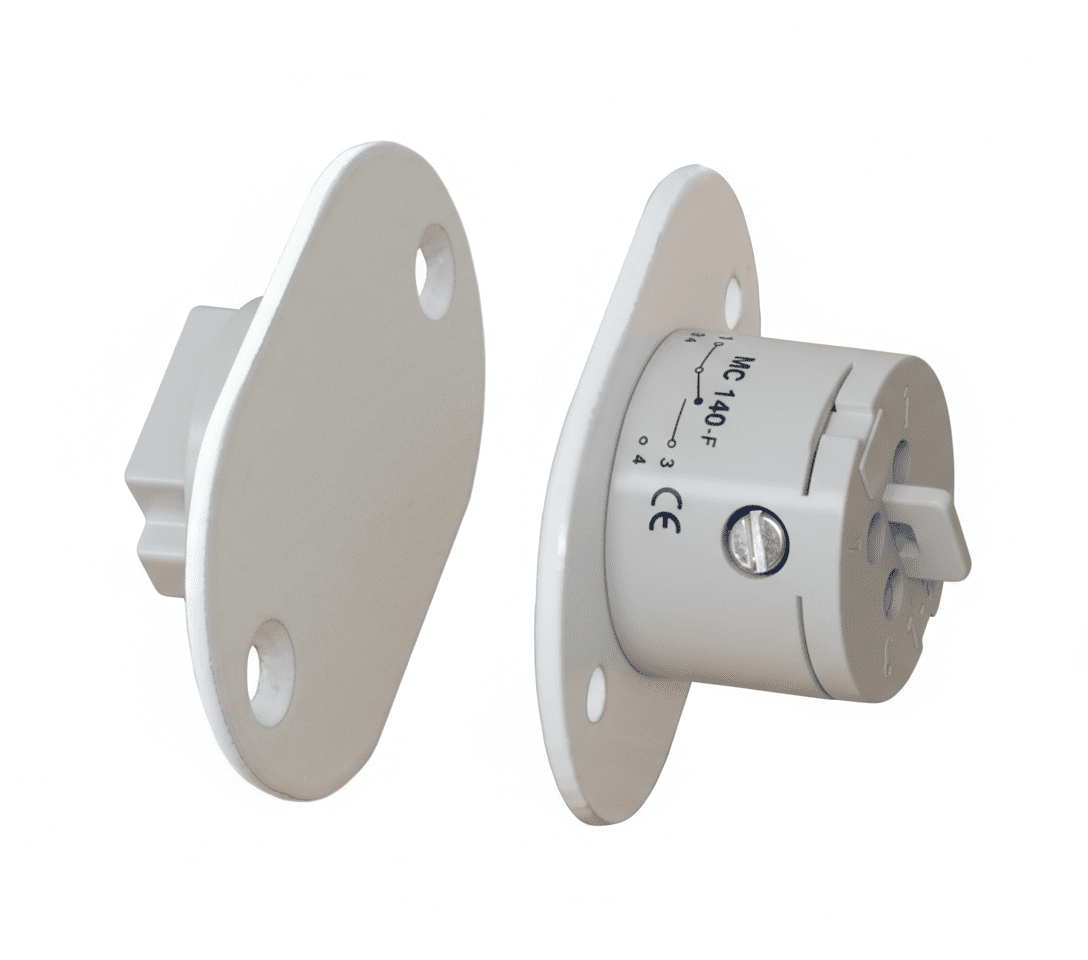

MC 140-F is a magnetic contact with NC function that can be used both in alarm and access control systems for recessed installation in doors and windows.
It is made of brass and designed for installations with high demands on durability and security.
Its small size and screw terminal connection makes it easy to install in most locations.
| Contact rating | 48 VDC / 500 mA / 10 VA |
|---|---|
| Operating temperature | –40 – +70 °C |
| Housing protection class | IP 41 |
| Drill diameter mm | 19-20 |
| Magnet type | Neodymium (NdFeB) |
| Make distance (wood) mm | 20 |
| Make distance (steel) mm | 8 |
| Colour | White |
