E-NR: 6309549
JB 24WH
Junction Box in Metal

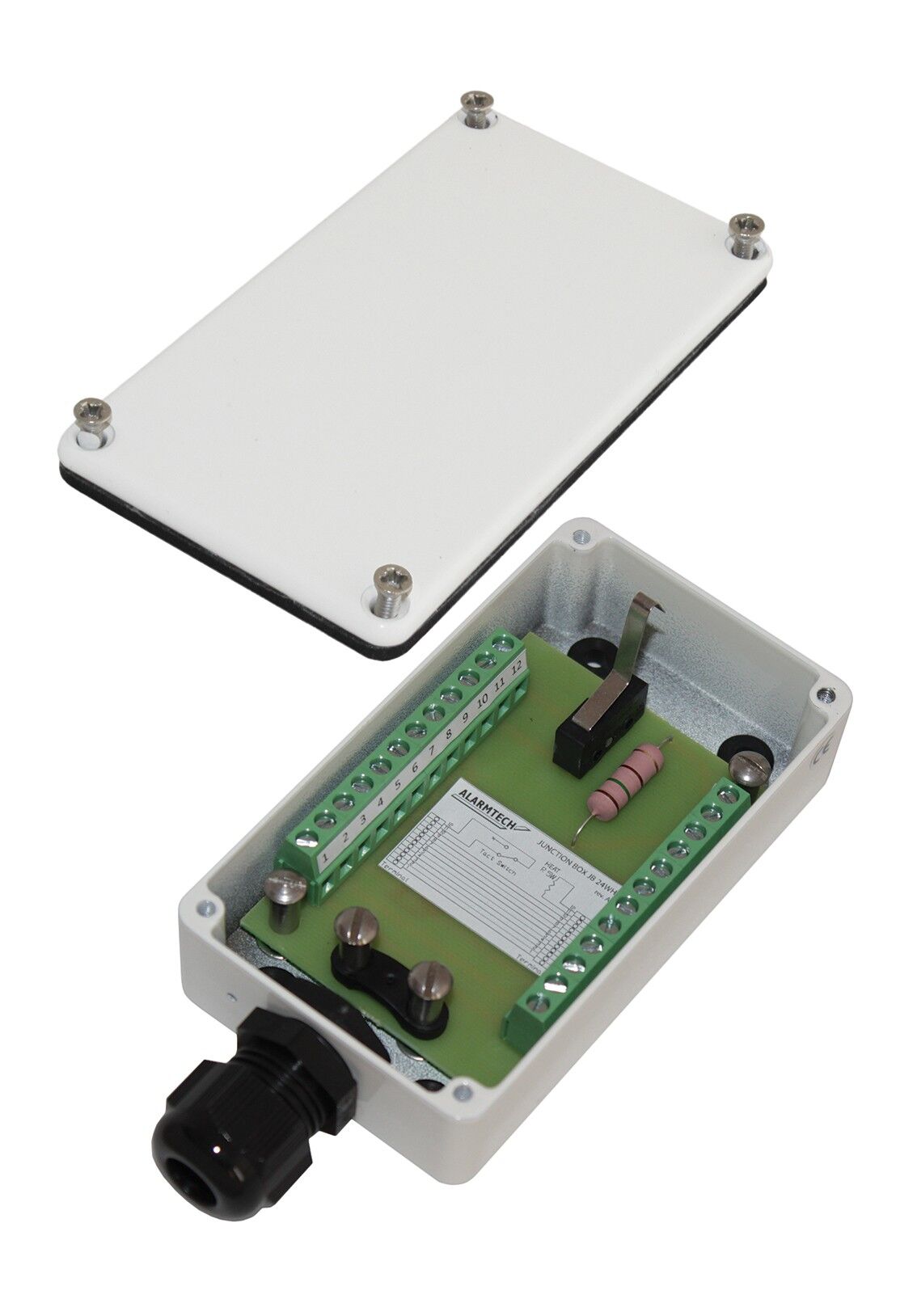

JB 24WH is a 24 terminal junction box in metal designed for use outside or in cold environments.
It is equipped with an internal heating element and tamper switch. The junction box is intended for alarm and access control systems where a more durable and safe box is needed. The cable entry is made of UV resistant plastic and allows for a cable diameter of 4.5–10 mm.
| Attributes | Value |
|---|---|
| Current consumption | 1 W/ 80 mA (12 V AC/DC), 4 W / 160 mA (24 V AC/DC) |
| Housing protection class | IP 43 |
| Product type | Connection accessories |
| Dimensions (L x W x H) mm | 115 x 65 x 28 |
| Environment | Indoor, Outdoor |
| Connection terminal | Pairing, Tamper protection |
| Terminal type | Screw |
| Series | JB-Series |
| Enclosure | Metal |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| JB 24WH | 6309549 |
