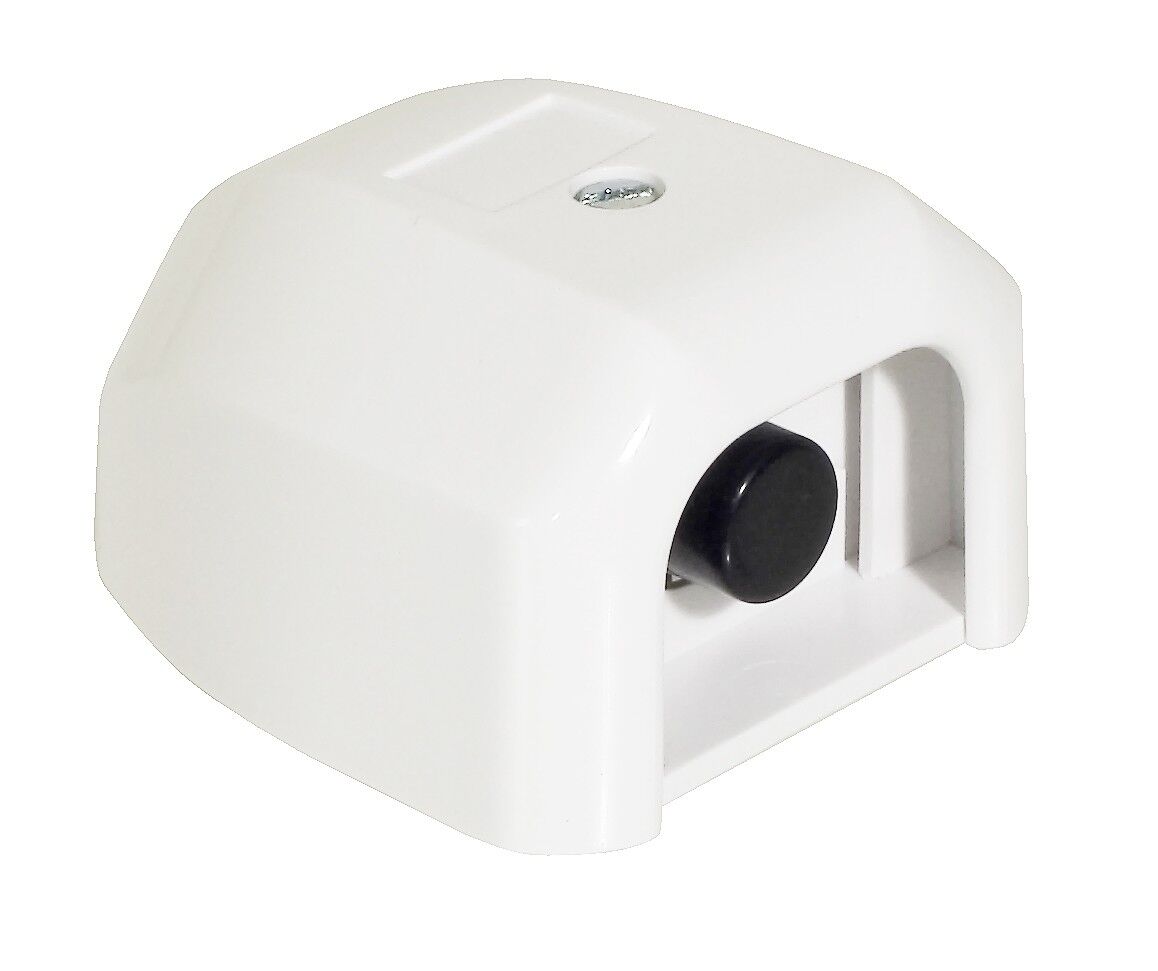

The HB 205-L is a personal attack button with NC function and latching push-button.
The button is reset to its initial state after a further button push. There is also an input to control the built-in LED and an anti-tamper switch to protect against unauthorised opening.
| Alarm output | NC |
|---|---|
| Contact rating | 30 VDC / 100 mA |
| Alarm indication | 12 VDC |
| Operating temperature | -10 - +55°C |
| Housing protection class | IP 31 |
| Dimensions (L x W x H) mm | 62 x 50 x 35 |
| Tamper protection | 12 VDC / 50 mA, NC |
