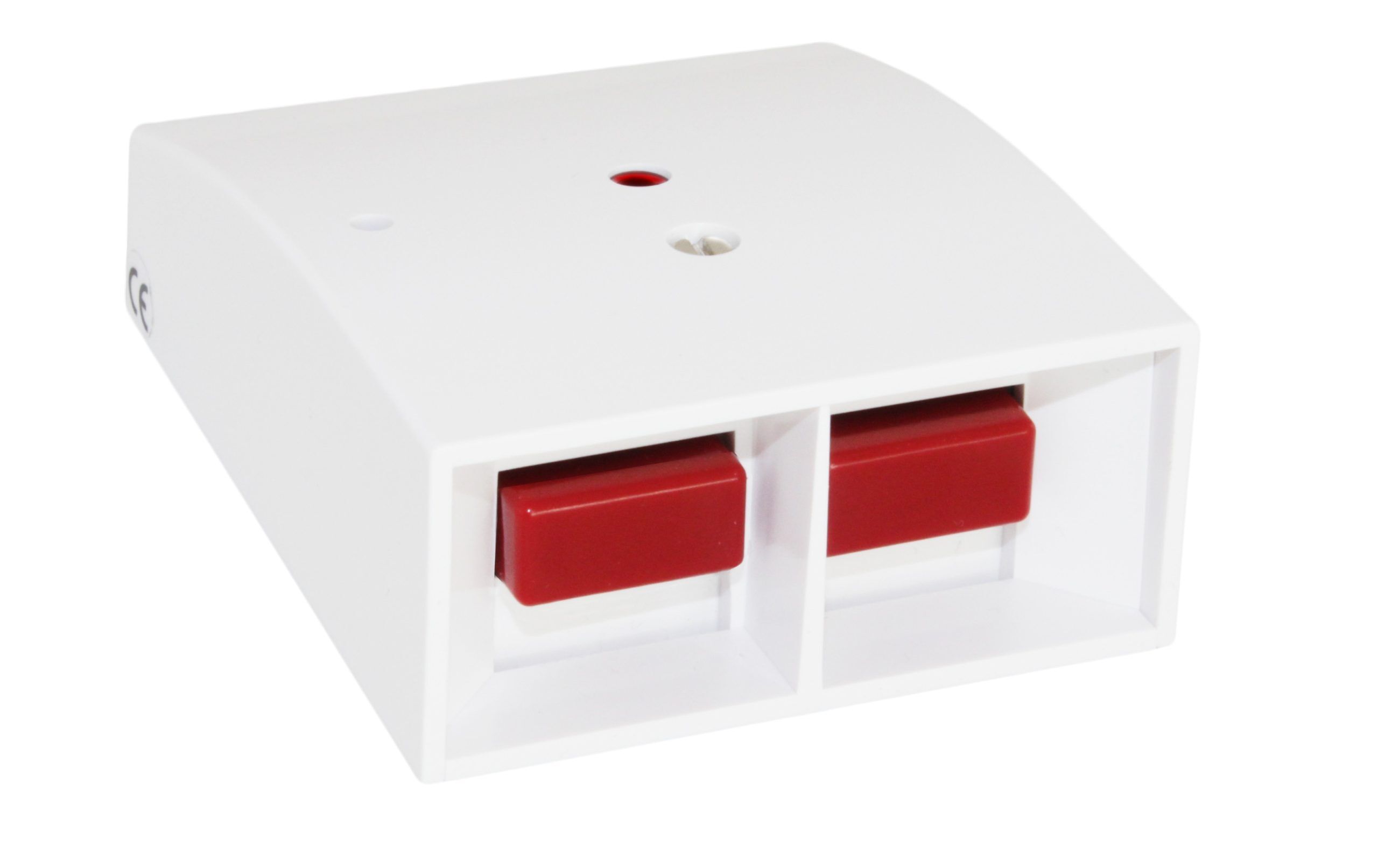

HB 120-SW
Electronic Personal Attack Button with delay function
The HB 120-SW is an advanced electronic personal attack button that can be used for various functions within in an alarm system.

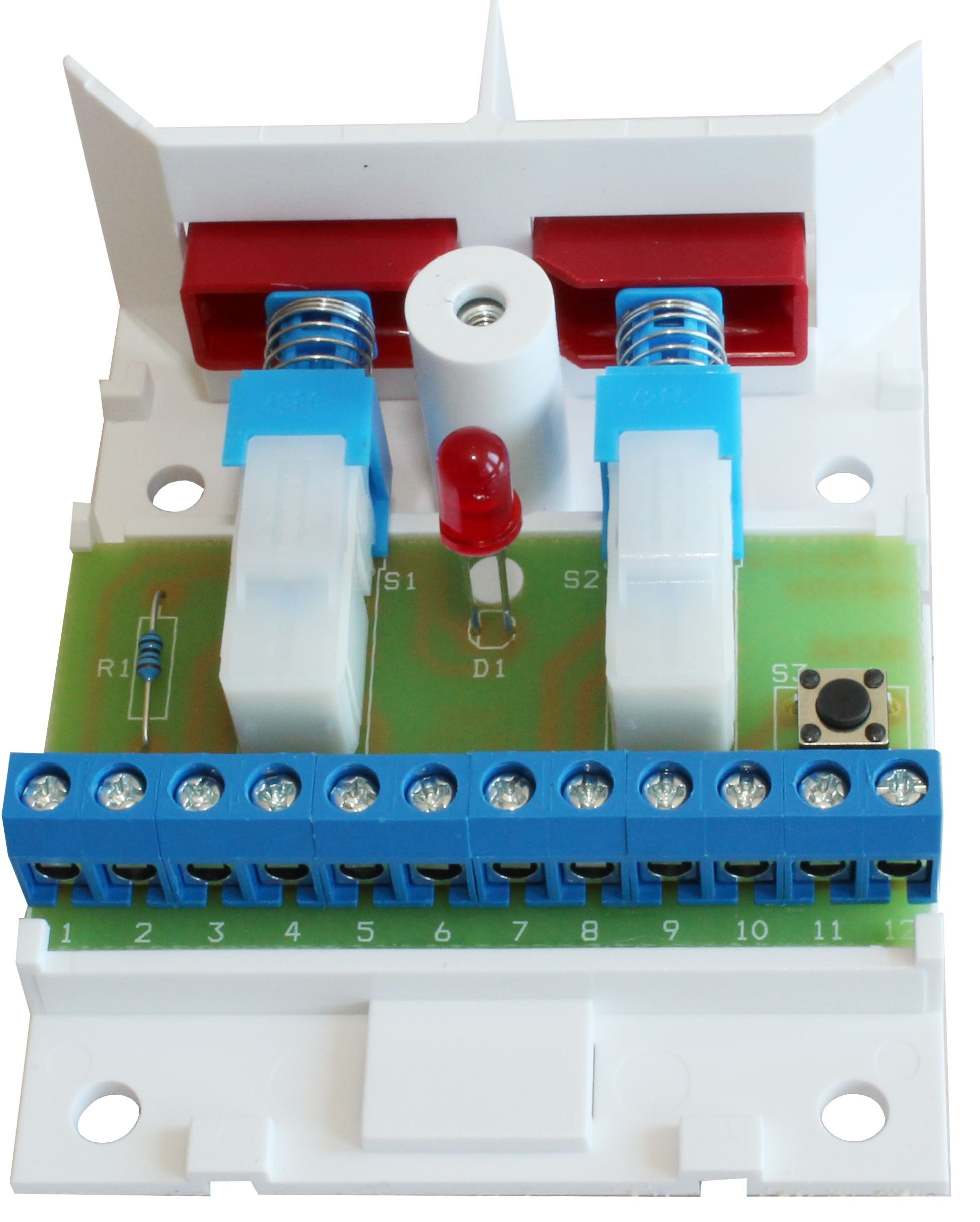

The HB 120-SW has two push buttons that allow for two separate alarm features. Alarm 1 is activated by a dual button function (red LED indicator) and Alarm 2 by a single button function (green LED indicator).
HB 120-SW has a delay function which triggers when the buttons are pressed as follows:
1 button pressed independently with 300 millisecond delay
2 buttons pressed together with 2000 millisecond delay
It has an anti-tamper switch to protect against unauthorised opening. With its flat and compact size it is discreet and easy to install in most types of environments.
| Attributes | Value |
|---|---|
| Supply voltage | 8 – 15 VDC |
| Alarm output | NC |
| Contact rating | 50 VDC / 100 mA |
| Alarm indication | LED |
| Housing protection class | IP 31 |
| Dimensions (L x W x H) mm | 80 x 65 x 30 |
| Current draw (standby) | 7 mA |
| Current draw (alarm) | 24 mA |
