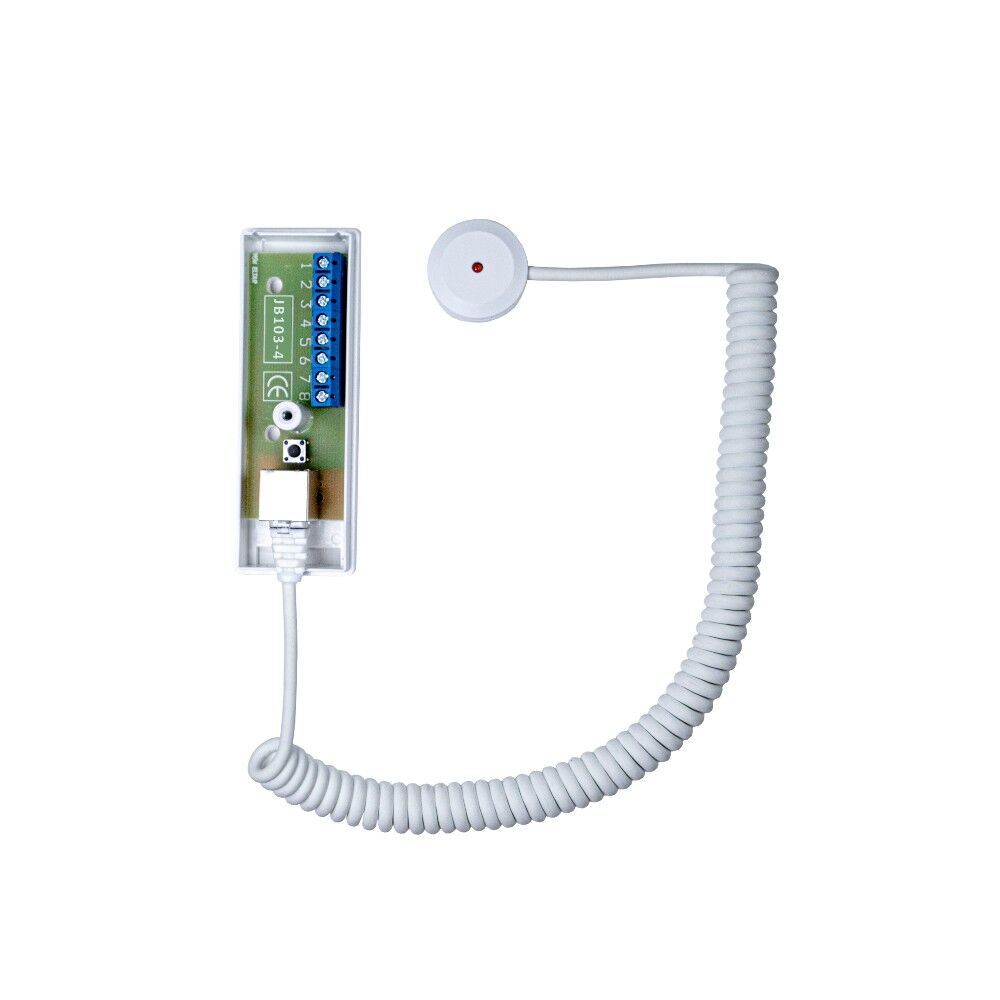

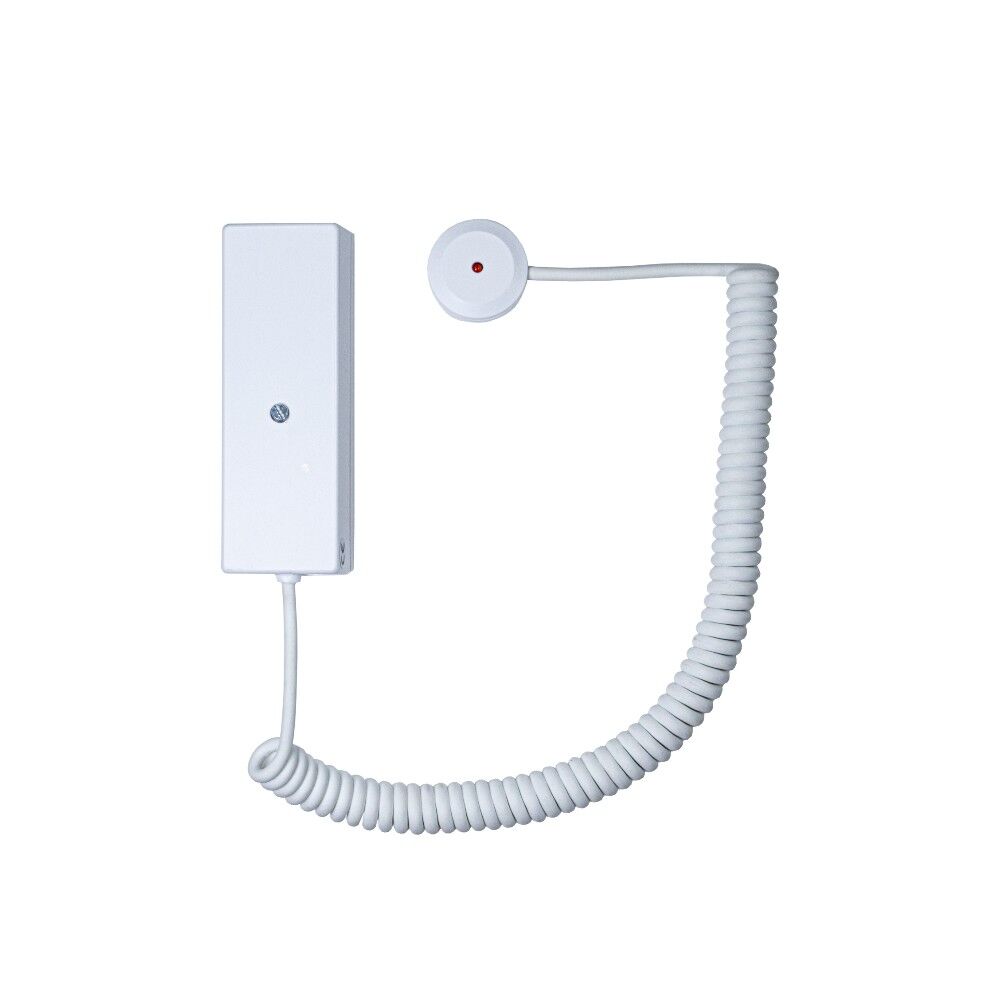

The GD 475-S has the same functions as the GD 475 with transistor output and must be connected to the control panel via an IU 400 interface/analyser unit. The detector has a coiled cable with a modular contact which is connected to the junction box JB 103-4, which allows it to be quickly and easy disconnected from the detector loop when, for example, cleaning windows. The signals from the detector comes on pin 5 & 6 in JB 103-4. Which is connected polarity independent to IU 400 pin 3 & 4.
| Approvals | F&P, FG, VdS G 121503 Class B |
|---|---|
| Supply voltage | 5-15 VDC |
| Alarm indication | LED |
| Operating temperature | -40 - +55°C |
| Housing protection class | IP 67 |
| Dimensions (H x Ø) mm | 11 x 26 |
| Grade | 3 |
