E-NR: 6332523
GD 330-S
Glass Break Detector, Glued
The GD 330-S has the same features as the GD 330 with relay output and can be directly connected to a control panel via the junction box JB 103-6.

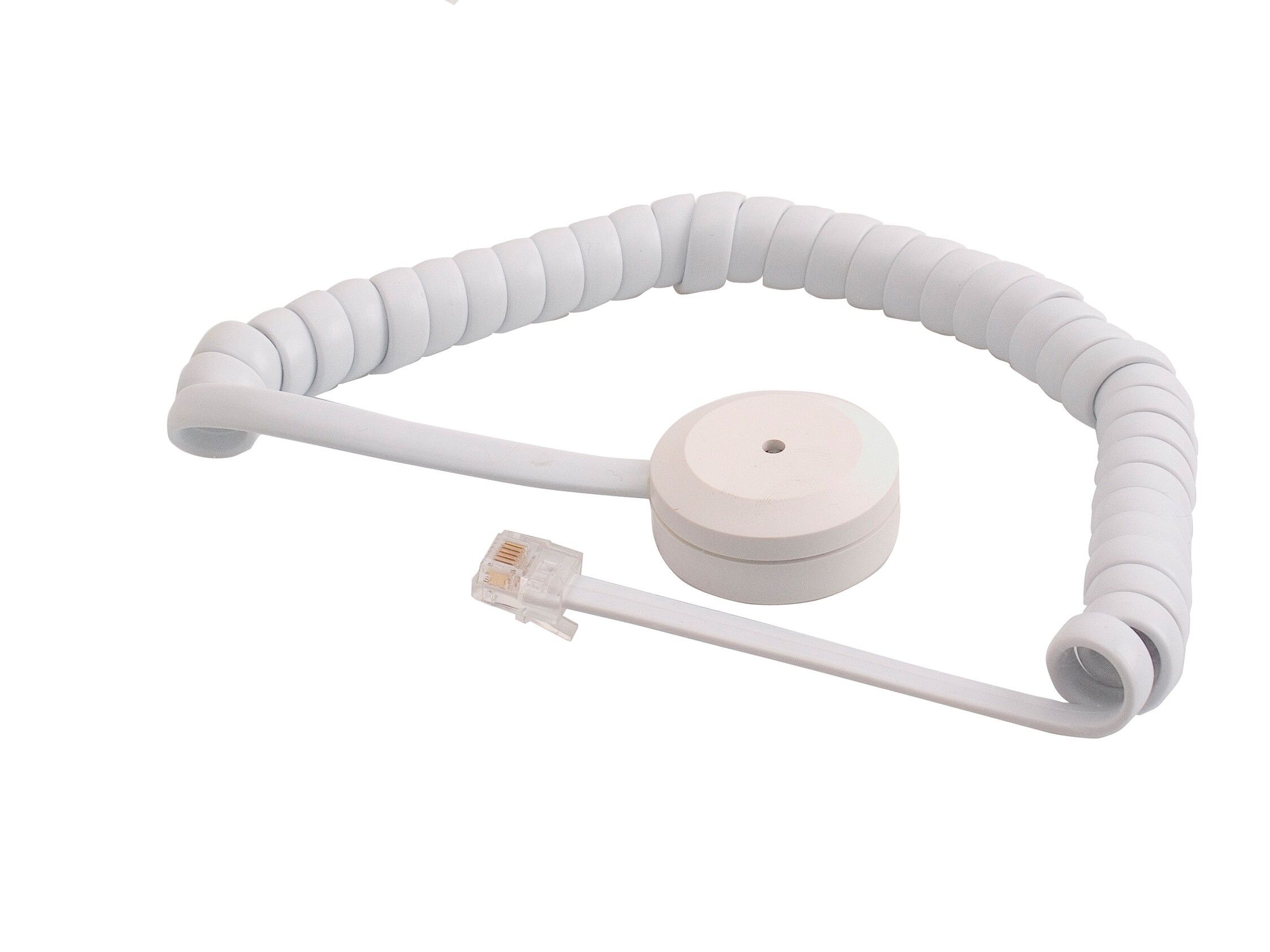

The detector has a coiled cable with modular connector that plugs into the junction box JB 103-6, which allows it to be quickly and easily disconnected from the detector loop when, for example, cleaning windows.
For laminated and tempered glass please use GD 370 or GD 470.
| Attributes | Value |
|---|---|
| Approvals | EN 50131-2-7-2:2013 Grade 2, VdS class B – G192531 |
| Supply voltage | 8-15 VDC |
| Alarm output | NC |
| Contact rating | 50 VDC / 100 mA |
| Alarm indication | LED |
| Housing protection class | IP 67 |
| Product type | Detectors |
| Dimensions (L x W x H) mm | 91 x 31 x 23 |
| Environment | Indoor, Outdoor |
| Dimensions (H x Ø) mm | 16 x 35 |
| Product group | Glass break |
| Product feature | Adhesive-mounted, Surface-mounted |
| Security certification and approval schemes | EN, FG, SBSC, VdS |
| Security class | 2, B |
| Environmental class | IIIA |
| Product name | E-nr | Description |
|---|---|---|
| GD 330-S | 6332523 | Glass break detector with relay output, glued, coiled cable with 6-pin modular connector pluge |
| GD 330-SJ | 6332524 | Glass break detector with relay output, glued, coiled cable with 6-pin modular connector plug and junction box JB 103-6 |
