DL RJ45
Door loop with RJ 45 connection, spiral cable
DL 6A
Door loop with RJ 12 connection, spiral cable
E-NR: 6303478
Cable length
Colour

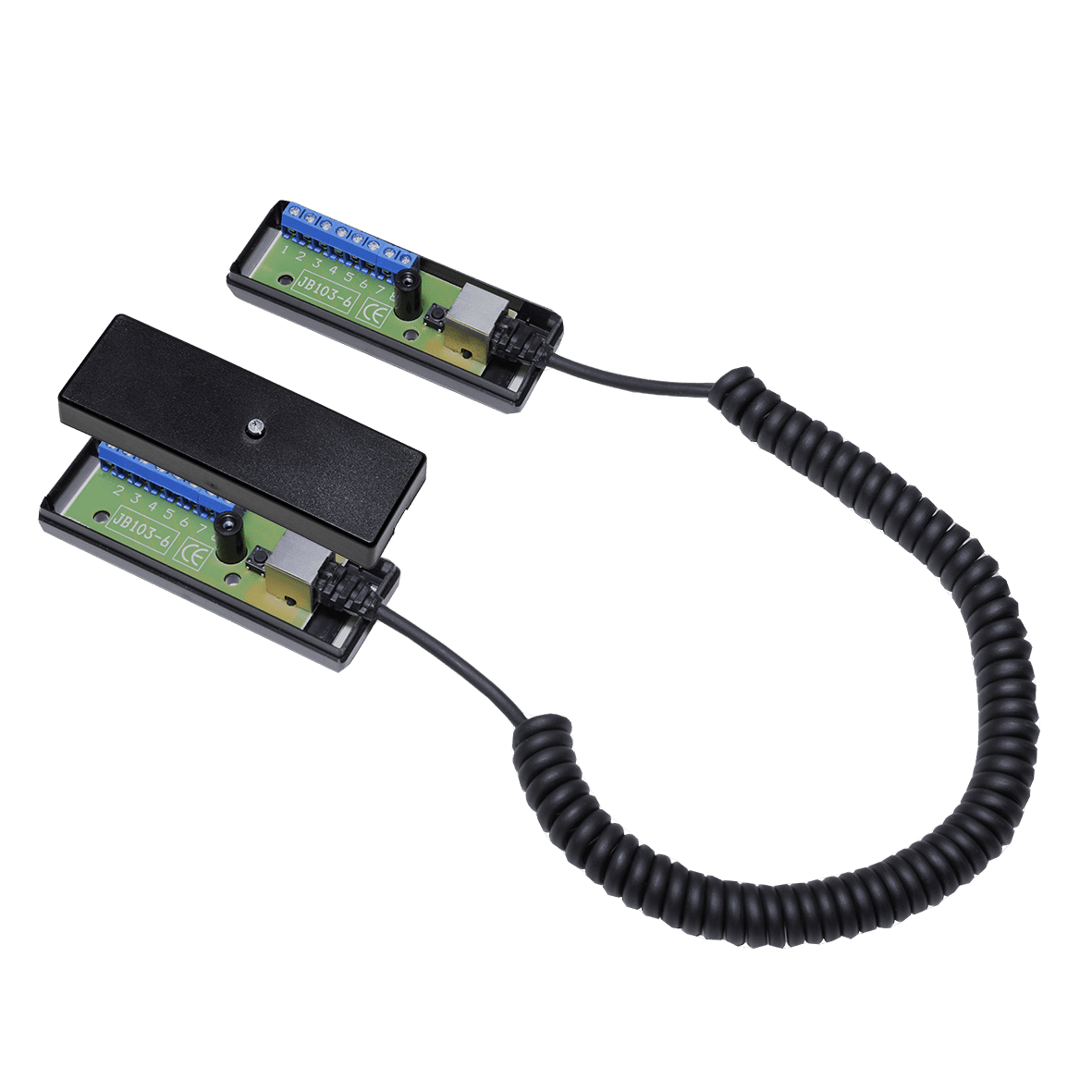

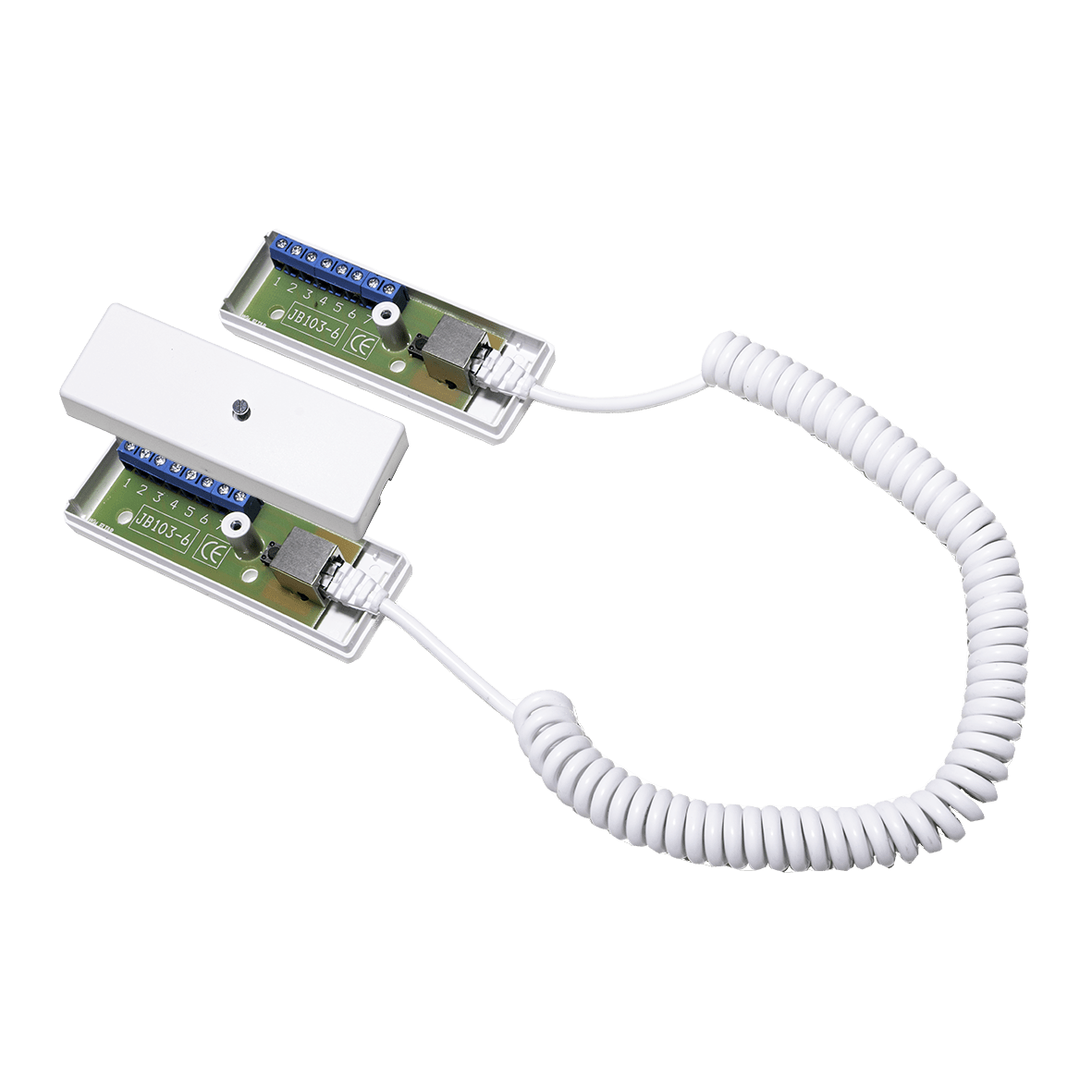

DL 6A is a door loop that consists of a 6-pole flexible spiral cable with RJ12 modular connector at both ends and two junction boxes (JB 103-6) with modular connector connection and 8 screw connections of which 2 are for the opening contact.
The door loop is intended for sliding doors, turning windows and other objects where a flexible cable is needed in alarms and access systems.

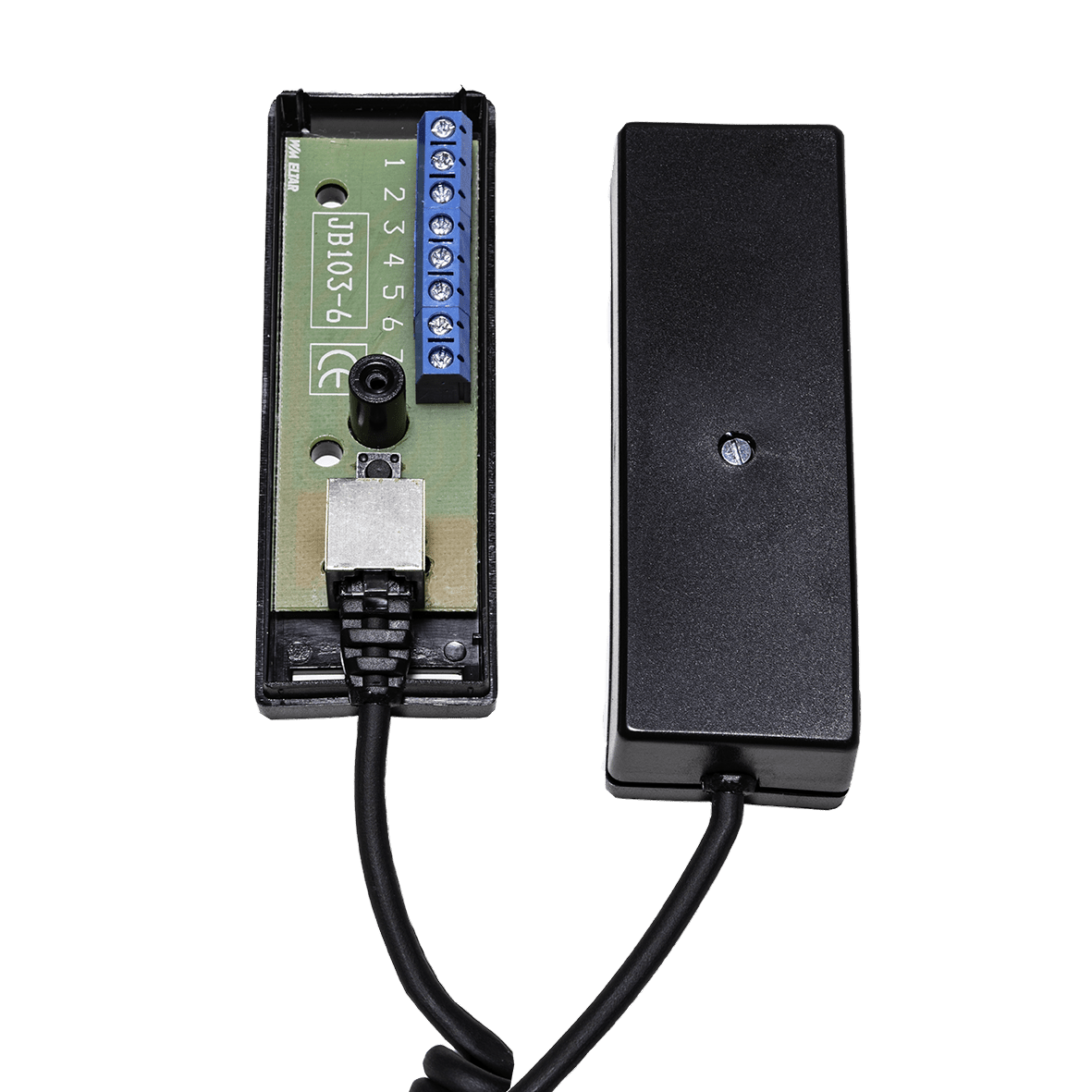

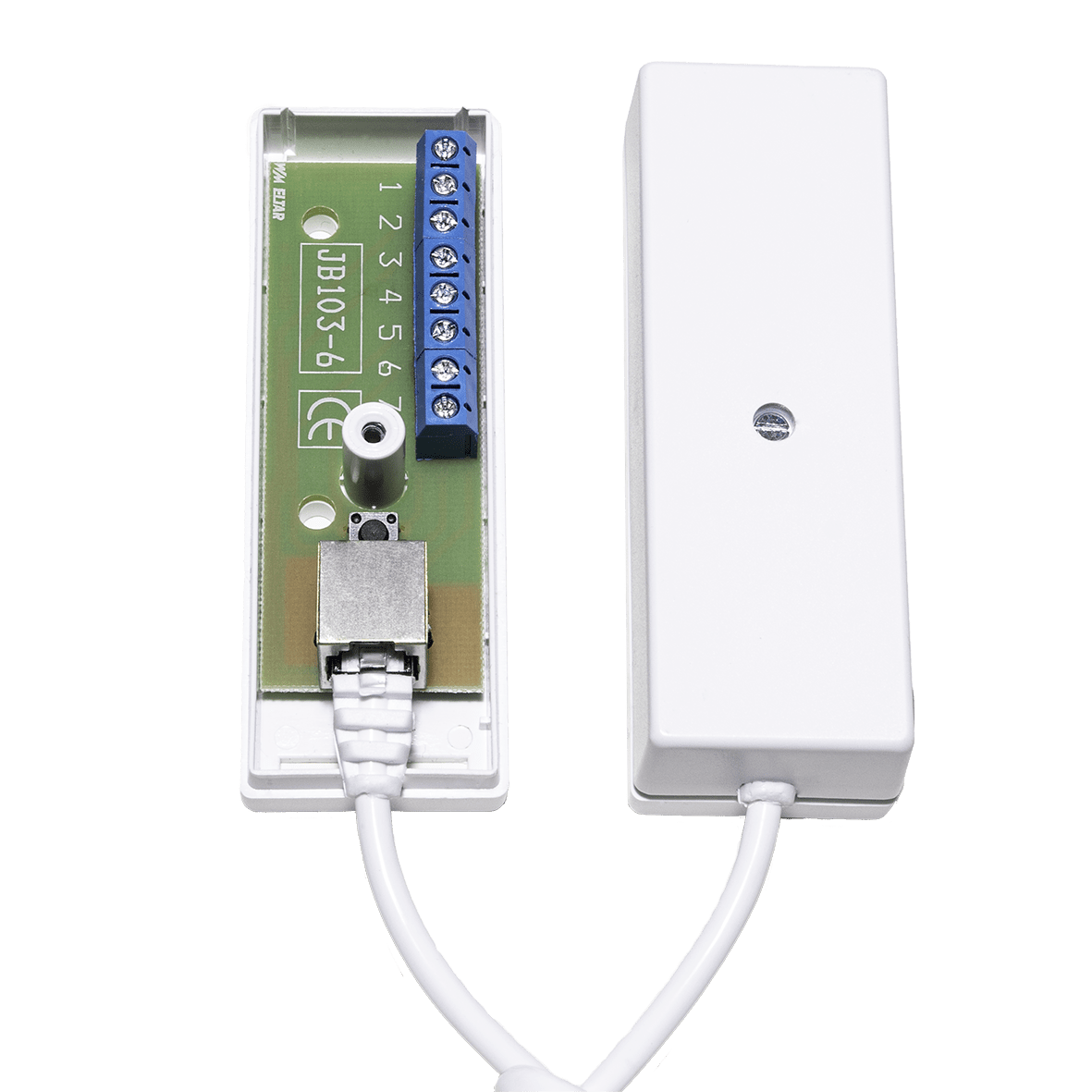

The junction box is equipped with cable relief protection for the modular connector by the cover locking the cable grooves against the base for secure installation. The screw connections have a lift function for safe mounting. The junction box has a tamper contact for protection against opening the enclosure. The cable is made of PUR, which means that it is more elastic and durable than a PVC cable. The cable is available in two sizes, 100 cm and 250 cm (recommended extended length).
The box and the cable are available in black or white color.
Connectable conductor area max 1.5 mm2.
| Attributes | Value |
|---|---|
| Colour | White, Black |
| Product type | Connection accessories |
| Environment | Indoor |
| Frame transfer | Cable protection |
| Product line | Alarmtech |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| DL 6A-100 | 6303478 | Door loop with RJ12 connection, spiral cable, 100 cm |
| DL 6A-250 | 6303479 | Door loop with RJ12 connection, spiral cable, 250 cm |
| DL 6A-100-BL | 6303481 | Door loop with RJ12 connection, spiral cable, 100 cm, black |
| DL 6A-250-BL | 6303482 | Door loop with RJ12 connection, spiral cable, 250 cm, black |
