DL 14
Door Loop
The DL 14 series of Door loops are used to simplify and protect transmission of signals with a cable from window and doors to the frame. The loops consist of a long and stainless steel flexi-tube, with two end caps with locking grooves to secure the flexi-tube and provide a safe installation.
The stainless steel flexi-tube is available in 2 lengths – 400 mm and 600 mm.

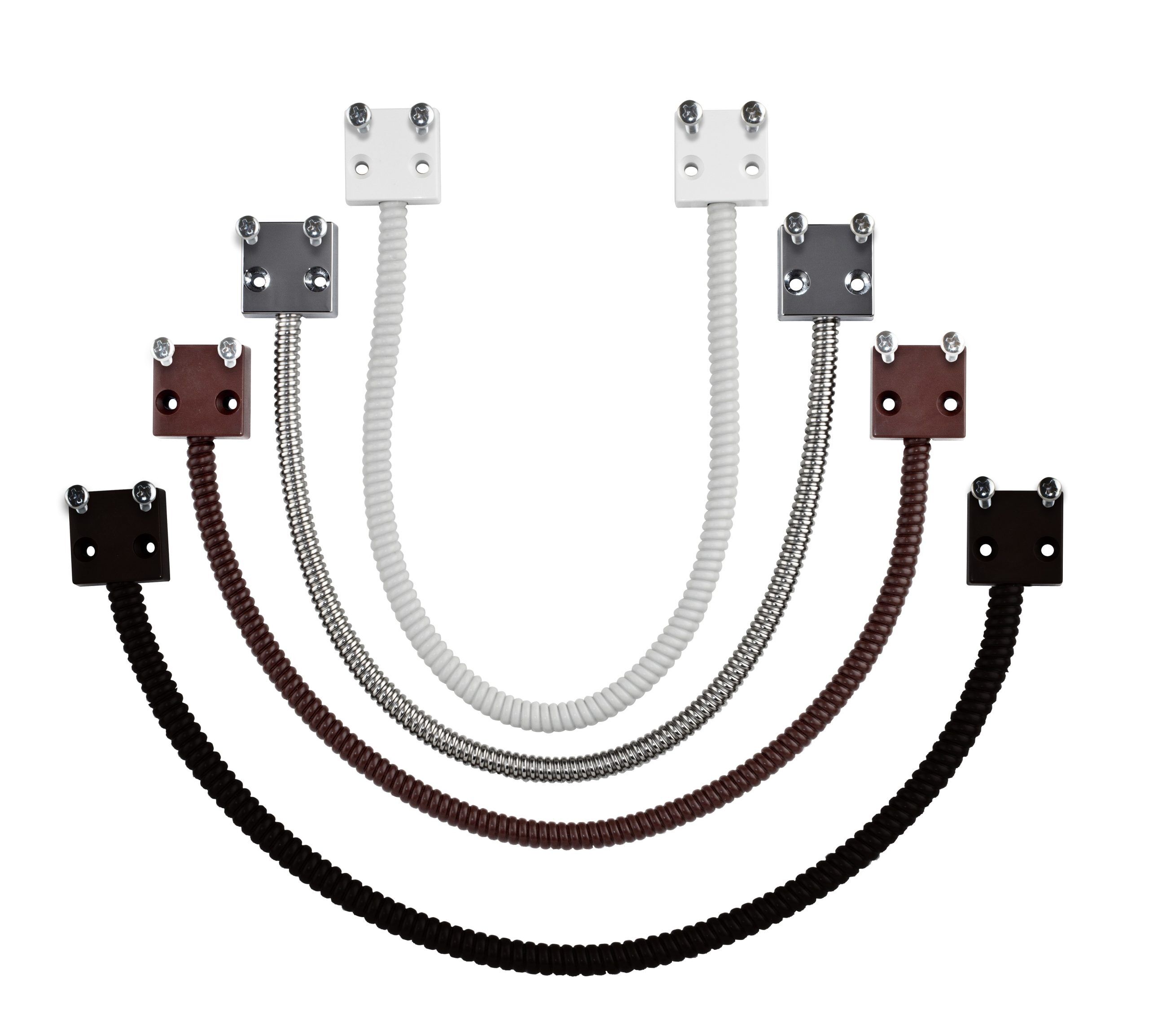

The cable is protected against the sharp edges of the metal flexi-tube at each end with a plastic end caps that allows a maximum cable diameter of 8.8 mm. The metal flexi-tube has an outer diameter of 14 mm and an inner diameter of 10.5 mm. The door loops are available in a nickel-plated design or an either white or brown plastic coating.
Delivered complete with 4 screws.
| Attributes | Value |
|---|---|
| Colour | White, Black, Brown |
| Outer diameter mm | 14 |
| Inner diameter mm | 10,5 |
| Length (mm) | DL 14-40 – 400 mm, DL 14-60 – 600 mm |
| Mounting plate dimensions mm | 36 x 36,5 x 17,7 |
| Max cable diameter (mm) | 8,8 |
| Product name | E-nr | Description |
|---|---|---|
| DL 14-40 | 6309089 | Door loop, 400 mm, stainless steel |
| DL 14-40W | 6309090 | Door loop, 400 mm, white |
| DL 14-40B | 6309091 | Door loop, 400 mm, brown |
| DL 14-40BL | Door loop, 400 mm, black | |
| DL 14-60 | 6309092 | Door loop, 600 mm, stainless steel |
| DL 14-60W | 6309093 | Door loop, 600 mm, white |
| DL 14-60BL | Door loop, 600 mm, black | |
| DL 14-60B | 6309094 | Door loop, 600 mm, brown |
