3035

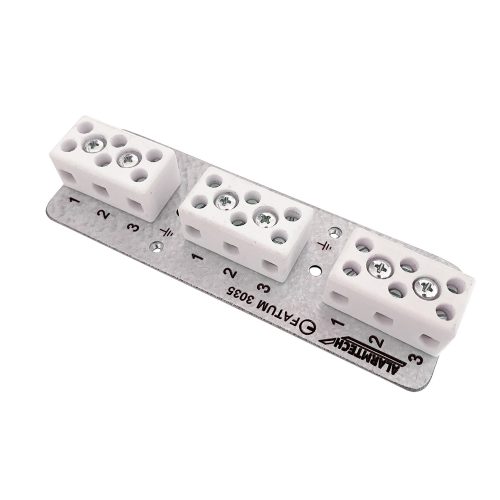

Connection module, ceramic 9-pole pair screw connection for voice / fire alarm installations.
Ceramic terminal block with wire guard for 600 V, 20 A, 4.0 mm2 wire.
Ceramic terminal block with wire guard intended for installations such as evacuation alarms, fire installations, industrial applications or other installations where a ceramic terminal block that can withstand high temperatures is required. 3 pole pairs with screw connections and wire guard in each terminal for safe installation. The terminal block is attached to the base with 2 screws. Cable area max 4.0 mm2.
| Attributes | Value |
|---|---|
| Dimensions (L x W x H) mm | 31.5 x 17.6 x 15.6 |
| Input max. load | 600 V / 20 A |
| Product type | Connection accessories |
| Operating temperature | max. 250°C |
| Environment | Indoor |
| Connection terminal | Contact configuration, Tamper protection |
| Terminal type | Screw/screw |
| Product line | Fatum |
| Product feature | Accessory, Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| CTB.03 | 5010432 | CTB Ceramic terminal block with wire guard |
Connection module, ceramic 9-pole pair screw connection for voice / fire alarm installations.
