E-NR: 5015498
8174
FUSE TERMINAL 24 VDC FOR MOUNTING ON DIN RAIL
Fuse terminal DIN for installation of alarm and access systems.

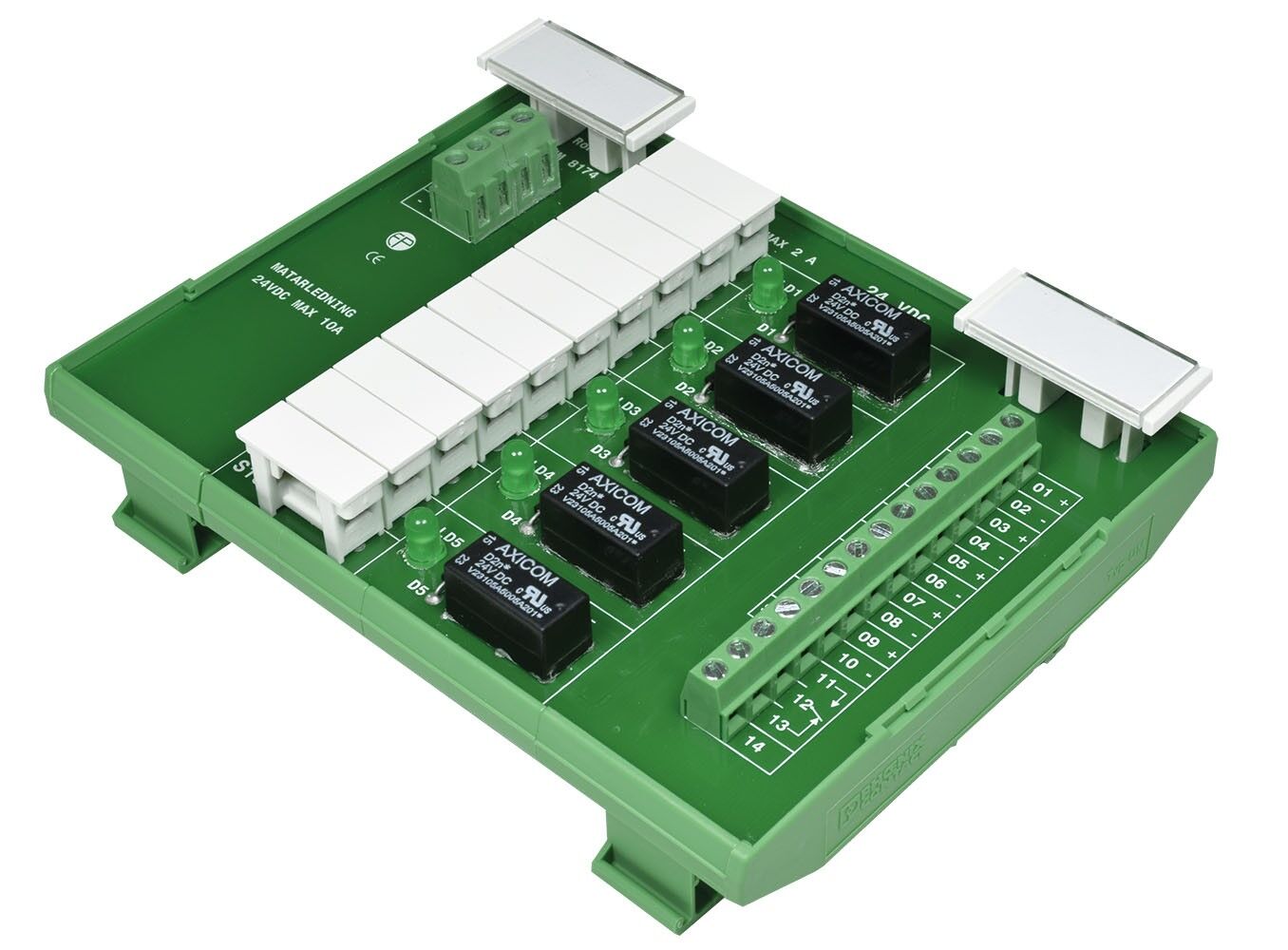

Fuse terminal 24 VDC for power distribution, 10A to 5 sections, each fused with 2A. Relay in series with LED for indication of unbroken fuse, applies both + and -.
Summary alarm, NC or NO.
Separate terminal for incoming power cord and separate connection terminal for outgoing distribution cables.
2 labels for marking incoming and outgoing cables are mounted on the terminal (labels included).
Fire class according to UL 94 V-0.
The terminal has up to 2.5 mm2 screw connection with a lift function for input and 1.5 mm2 for output.
| Attributes | Value |
|---|---|
| Current consumption | 30 mA @24 VDC |
| Cable dimension – input | 0,2 – 2,5 mm2 |
| Cable dimension – output | 0,14 – 1,5 mm2 |
| Product type | Connection accessories |
| Output max. load | 24 V / 2 A |
| Environment | Indoor |
| Accessory type | Fuse board |
| Connection terminal | Fused |
| Terminal type | Screw/screw |
| Series | Module series |
| Enclosure | DIN |
| Product line | Fatum |
| Product feature | Rack-mounted, Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 8174.03 | 5015498 | Fuse terminal, 24 VDC, DIN, screw terminals |
