E-NR: 6301742
62904R
JUNCTION SET RECESSED, 8 PAIRS RED COLORED, FOR WALLBOX
Complete junction set with 2,5 mm2 connection for installation of fire systems.
Recessed junction set with 8 pairs.

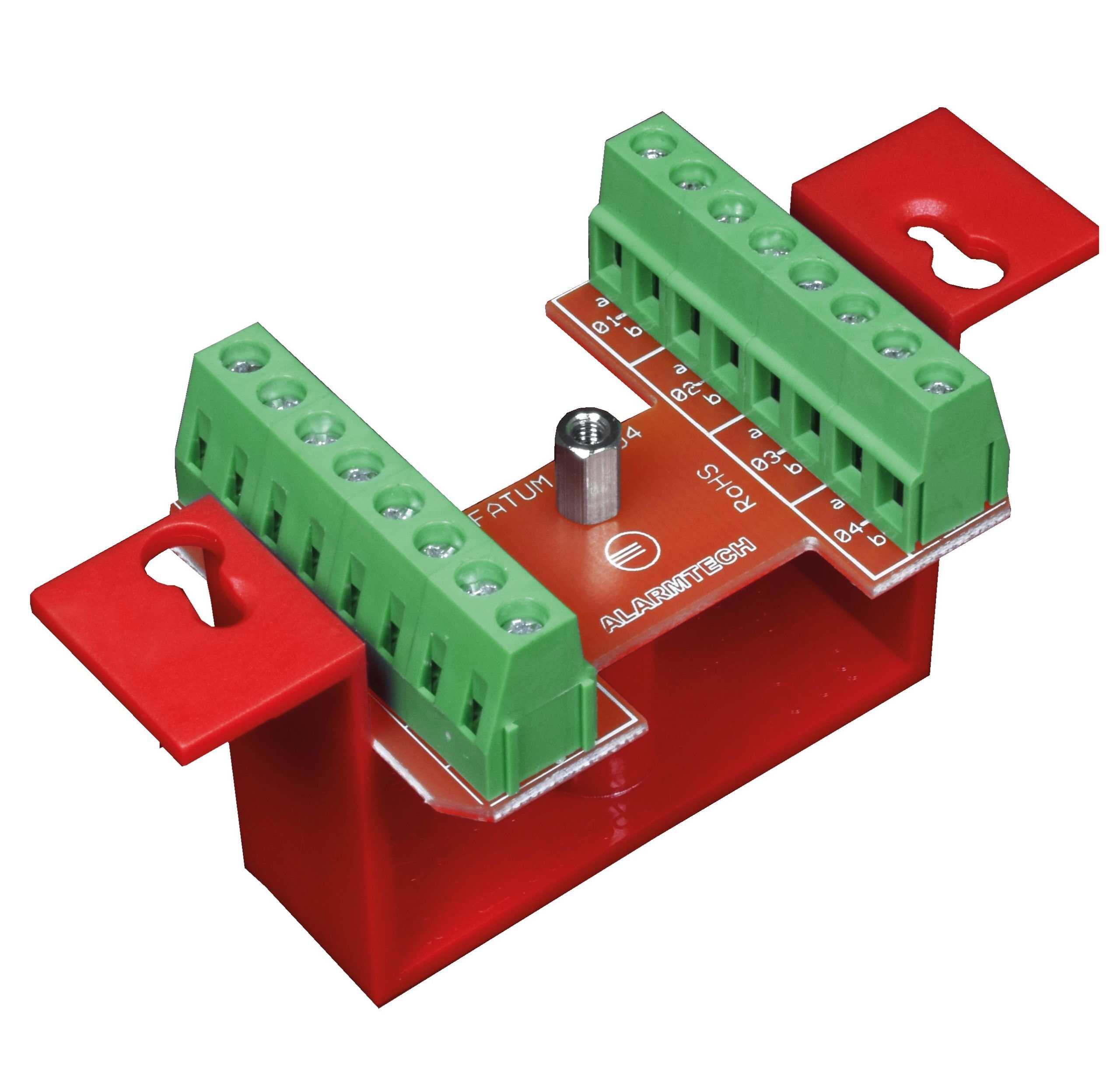

The terminal block is adapted to easily connect peripherals such as Alarmtech’s magnetic contacts and glass break detectors.
The terminal block has 8 parallel connected terminals with up to 2.5 mm2 screw connection with lift function for, for example, coarser fire cables.
Suitable for 75 mm wall box with 67 mm hole spacing.
The box is flame-retardant according to UL 94 V-0.

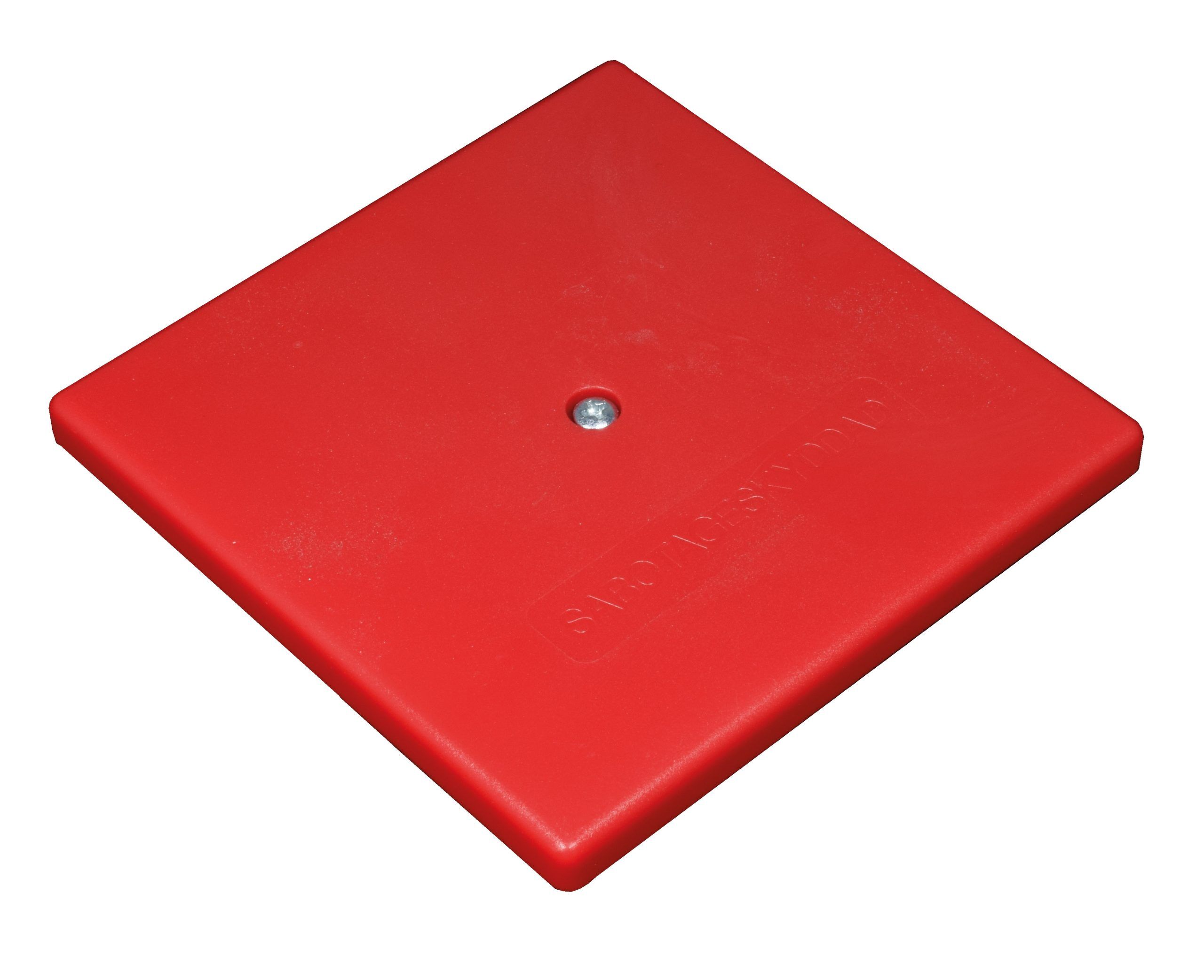

Cover (92×92 mm) included.
| Attributes | Value |
|---|---|
| Dimensions (L x W x H) mm | 92 x 92 x 42 |
| Cable dimension – screw terminals | 2,2 – 2,5mm2 |
| Input max. load | 60 V / 2A |
| Tamper switch max. load | 50 mA |
| Product type | Connection accessories |
| Environment | Indoor |
| Connection terminal | Fire, Pairing |
| Terminal type | Screw/screw |
| Product line | Fatum |
| Product feature | Flush-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 62904.03R | 6301742 |
