4101R
REDLINE MODULE BOX, PLASTIC
E-NR: 6301735
Label window

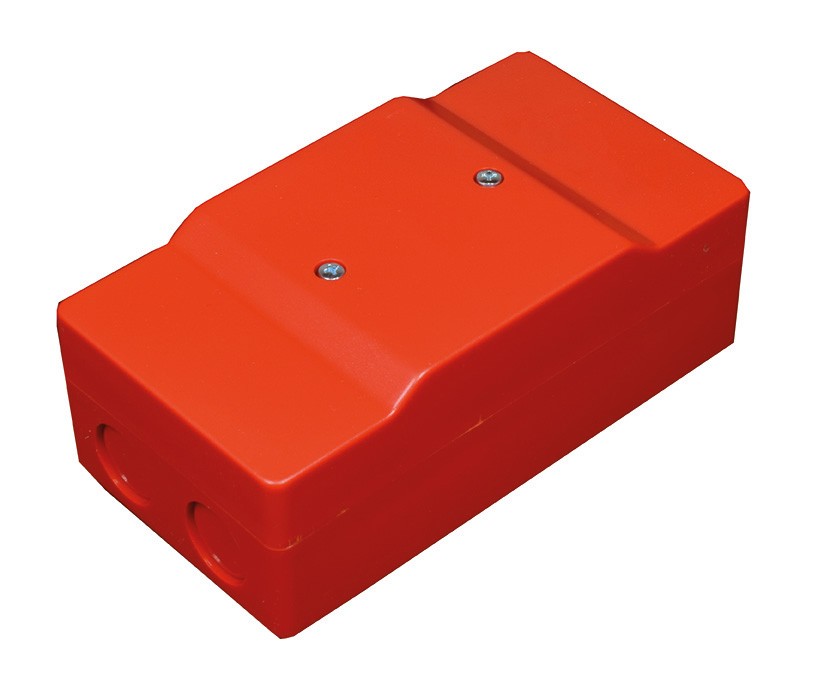

Empty module box for installation of fire systems.
Empty box in red with visible or hidden label window.
Suitable for fire installations.
Customized to fit all our terminal blocks eg.
- 1 pcs Terminal block with dimensions 116×40 mm.

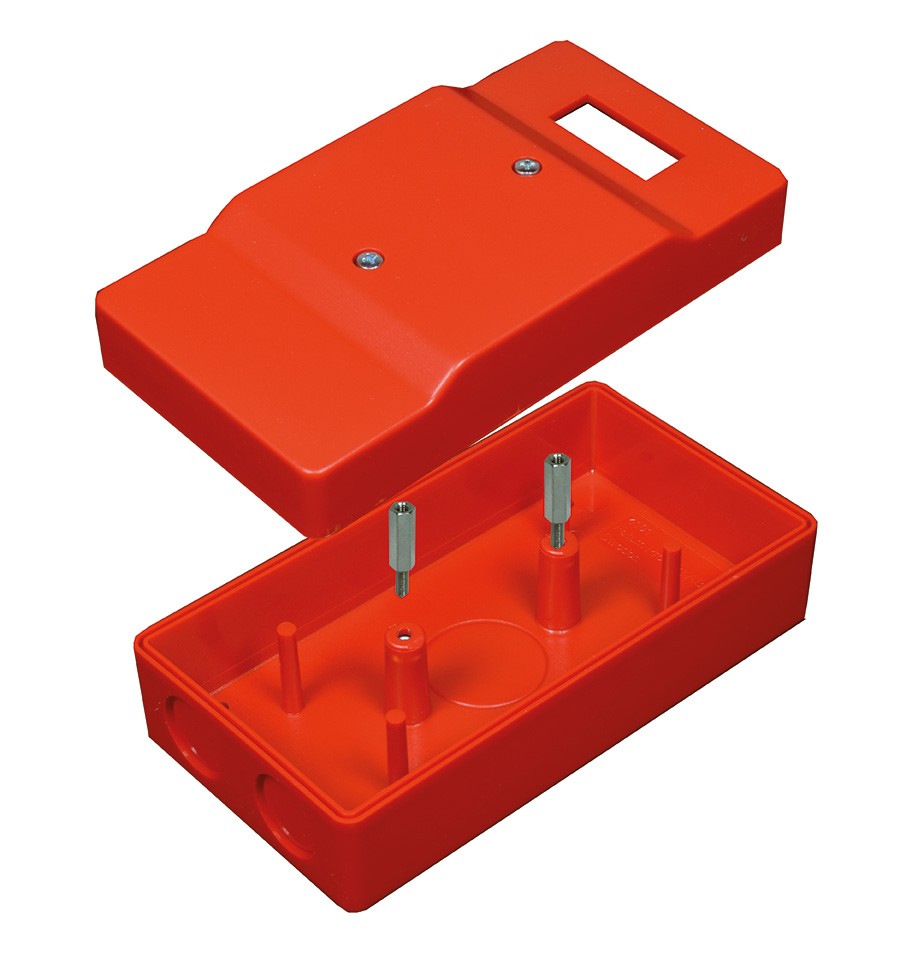

Incl. 2 spacers for mounting our terminal blocks.
The box is flame-retardant according to UL 94 V-0.
4101.02R: IP44
4101.03R: IP4X
| Attributes | Value |
|---|---|
| Label window | No, Yes |
| Dimensions (L x W x H) mm | 134 x 72 x 50 |
| Product type | Connection accessories |
| Environment | Indoor |
| Series | Module series |
| Enclosure | Plastic |
| Enclosure size | Module with 1 terminal block |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Accessory type | Module series (Empty) |
| Product name | E-nr | Description |
|---|---|---|
| 4101.02R | 6301734 | REDLINE MODULE BOX, PLASTIC; IP44; 1 plint |
| 4101.03R | 6301735 | REDLINE MODULE BOX, PLASTIC; IP4X; 1 plint |
