3066
RELAY MODULE WITH 2 RELAYS, 24 VDC
E-NR: 5015334
Terminal type
Terminal block for installation of tele and access systems.
Anti-tampering protected Relay module with 2 relays, 12 VDC.
LED connected in parallel with relay coil. Protection Diode.
2 separate relays with 2 pole SPDT contacts.
4 separate connections, of which 2 connections are intended for anti-tamper switch connection and 2 for cable shield.
Available in different options, slot (LSA) or screw connection with lift function.
| Attributes | Value |
|---|---|
| Terminal type | LSA/LSA, Screw/screw |
| Current consumption | 15 mA @24 VDC |
| Cable dimension – LSA slots (mm) | Ø 0,4 – 0,7 |
| Cable dimension – screw terminals | 0,14 – 1 mm2 |
| Input max. load | 60 V / 2 A |
| Tamper switch max. load | 50 mA |
| Min. relay voltage | 19, 2 V |
| Dimensions (L x W) | 116 x 40 |
| Product type | Connection accessories |
| Environment | Indoor |
| Accessory type | Relay board |
| Connection terminal | Contact configuration, Tamper protection |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|

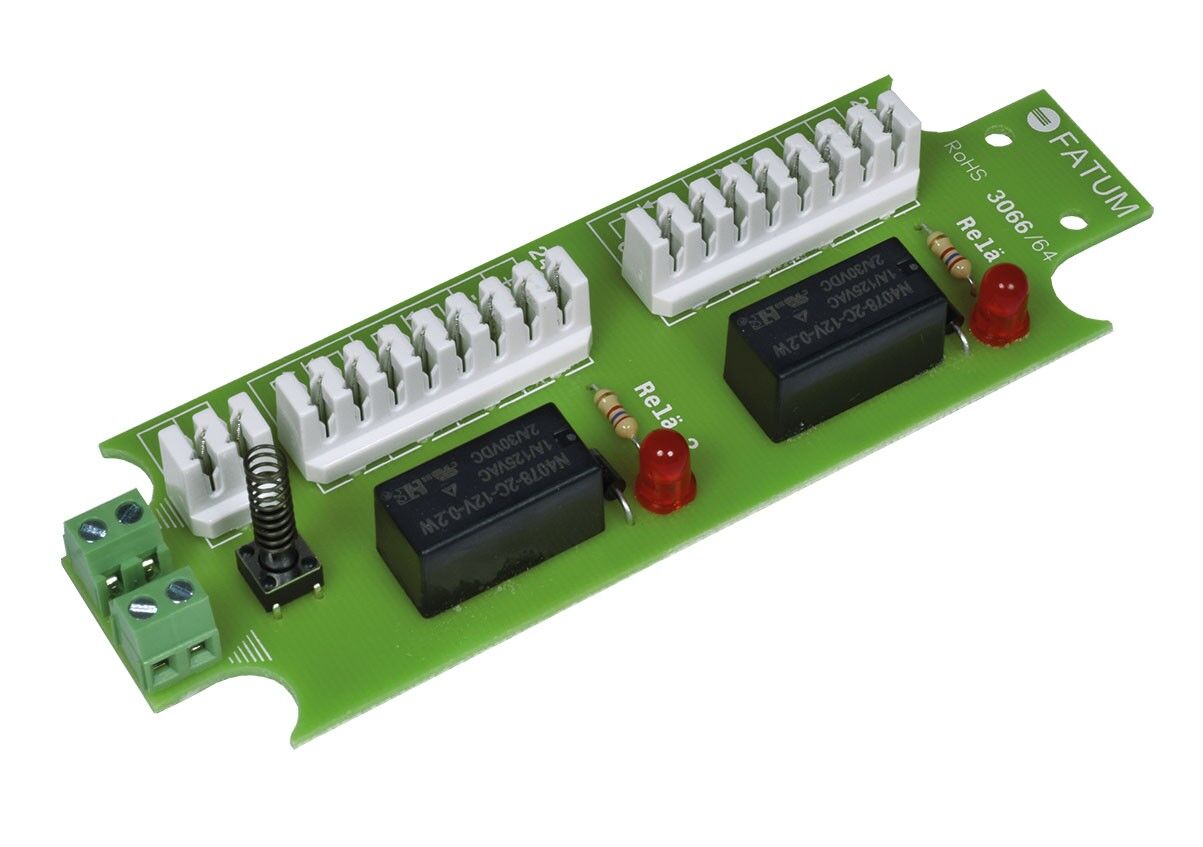

| 3066.01 | 5015334 | Relay module 24 VDC, 2 Relays, Tamper protected, LSA |

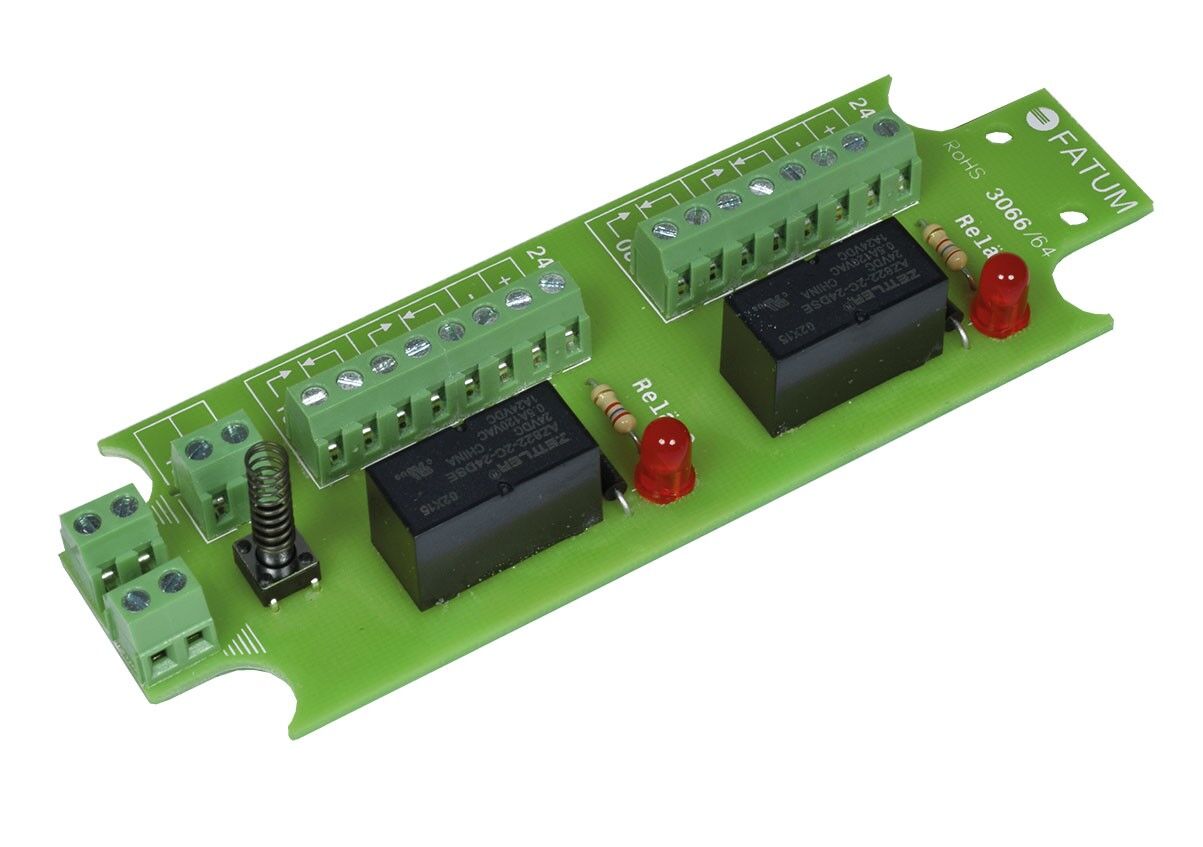

| 3066.03 | 5015336 | Relay module 24 VDC, 2 Relays, Tamper protected, Screw |
