E-NR: 6301811
28912R
REDLINE JUNCTION BOX “MINI” 12 PAIRS
Complete junction box with 2,5 mm2 connection for installation of fire systems.
Anti-tampering protected junction box with 12 pairs.
Suitable for fire installations.

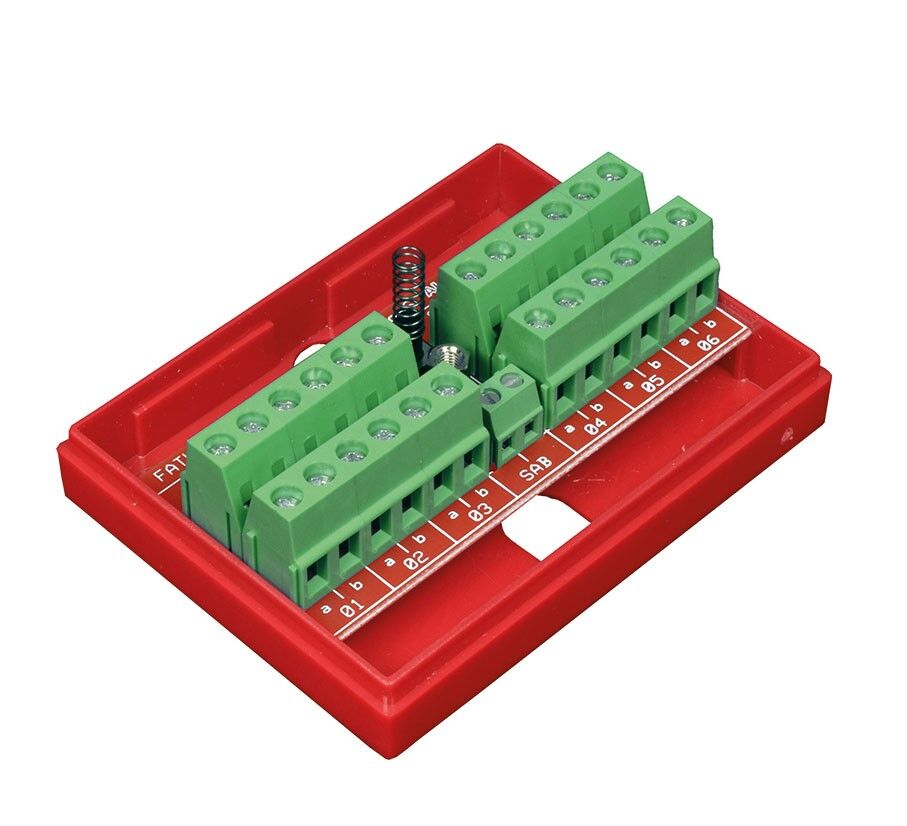

The terminal block has 12 parallel connected terminals with up to 2.5 mm2 screw connection with lift function for, for example, coarser fire cables as well 2 separate connections that are intended for anti-tamper switch connection.
The box is flame-retardant according to UL 94 V-0.

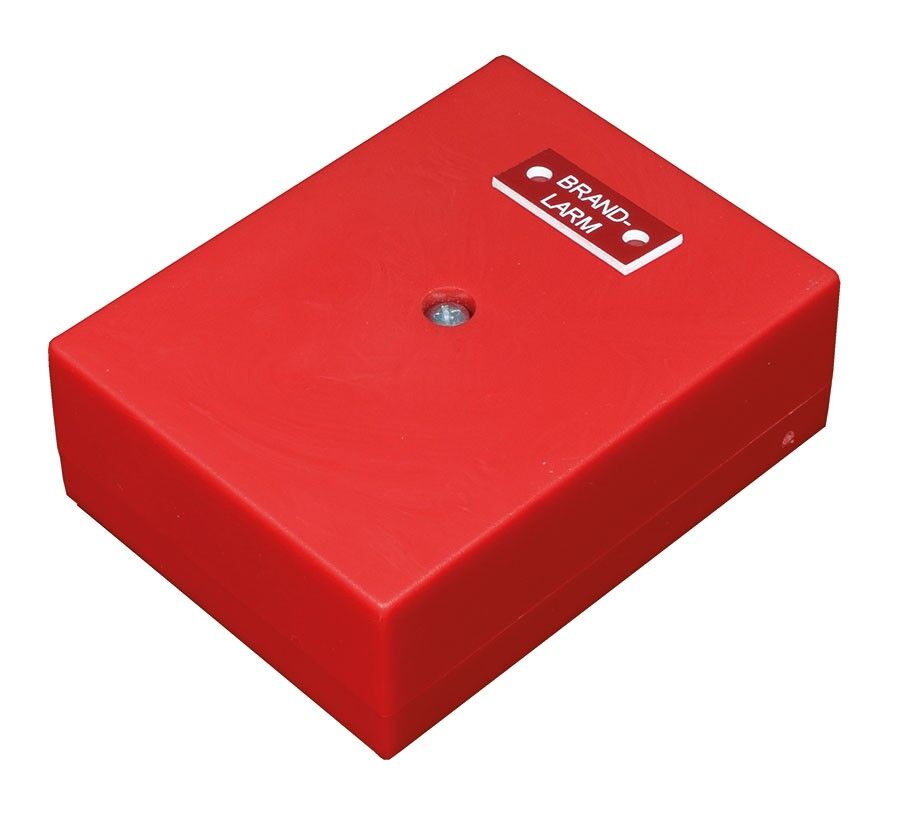

(The fire sign is not included)
| Attributes | Value |
|---|---|
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Cable dimension – screw terminals | 2,2 – 2,5mm2 |
| Input max. load | 60 V / 2 A |
| Tamper switch max. load | 50 mA |
| Product type | Connection accessories |
| Environment | Indoor |
| Connection terminal | Pairing, Tamper protection |
| Terminal type | Screw/screw |
| Series | Mini series |
| Enclosure | Plastic |
| Enclosure size | Mini |
| Product line | Fatum |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 28912.03R | 6301811 |
