DL RJ45
Door loop with RJ 45 connection, spiral cable
E-NR: 6310066
Długość kabla (m)

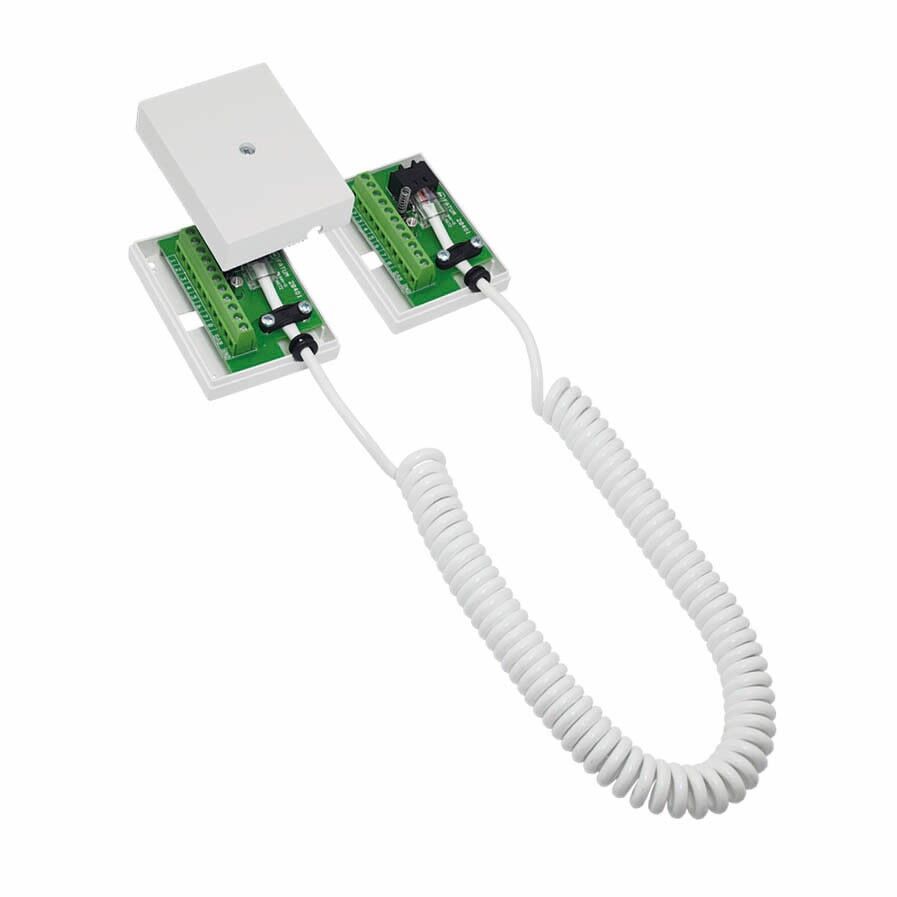

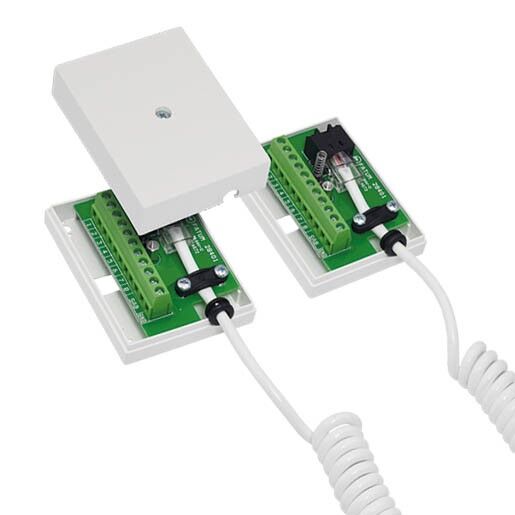

DL RJ45 is a door loop with spiral cable and RJ45 connector at each end. The door loop is intended for sliding doors, garage doors and other objects where a flexible cable is needed. The door loop consists of two junction boxes (28401) with RJ45 connectors and 10 screw terminals, 2 of which are for the tamper contact. The box is also provided with cable relief protection for the RJ45 connector. The box has also an anti-tamper protection. The screw terminals have built in self lift wire guard clamp for safe mounting.
The cable is made of PUR which means it is more elastic and durable than a PVC cable.
The cable is available in 3 sizes, 50 cm, 10 and 250 cm (recommended extended length).
| Atrybuty | Wartość |
|---|---|
| Długość kabla (m) | 0,5m, 1m, 2,5m |
| Podłączenie | RJ 45 |
| Typ produktu | Materiały przyłączeniowe |
| Środowisko | Wewnętrzny |
| Listwa zaciskowa | Ochrona przed sabotażem, Parowanie |
| Przejście przez ościeżnicę | Kabel spiralny |
| Linia produktów | Alarmtech |
| Właściwość produktu | Natynkowy |
| Nazwa produktu | E-nr | Opis |
|---|---|---|
| DL RJ45-50 | 6310054 | Door loop with RJ 45 connection, spiral cable, 50 cm |
| DL RJ45-100 | 6310066 | Door loop with RJ 45 connection, spiral cable, 100 cm |
| DL RJ45-250 | 6310067 | Door loop with RJ 45 connection, spiral cable, 250 cm |
