E-NR: 5213171
PSV 24130-40
Power supply unit, ViP, 24 V 13 A
Power supply unit with ViP (Voltage in Parallel) function, 24 VDC 13 A.

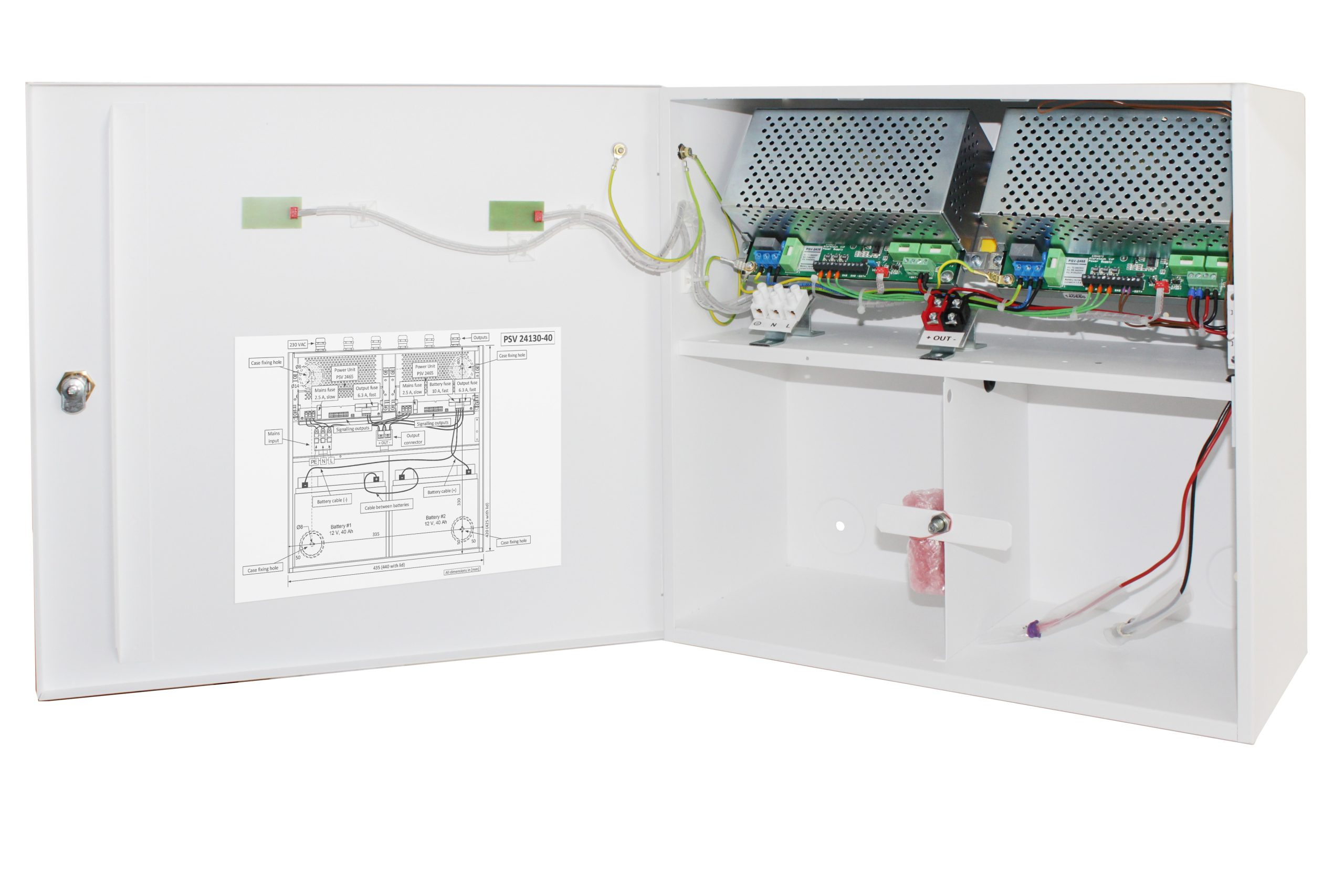

Power supply unit with ViP function can be connected in parallel to provide more power and redundancy and compensate for voltage drop in the cables. Space is provided for two 12 V/40 Ah accumulators in the metal box which also has opening and pry- off switches. The unit is protected against short-circuiting and overload. Mains failure, low output voltage, battery and fuse failure is indicated via LED and activates separate outputs with relays.
| Attributs | Valeur |
|---|---|
| Certifications | CB TEST, EN 60950-1:2006+A11+A1+A12+A2, EN 61000-6-1:2007, EN 61000-6-3:2007 +A1 |
| Tension de l’alimentation | 230 VAC |
| Dimensions (L x W x H) mm | 440 x 425 x 200 |
| Tension de sortie | 27,6 VDC |
| Intensité de sortie | 13 A |
| Certification de sécurité et schémas d’agrément | EN, F&P, FG, SBSC |
| Classe de sécurité | 3 |
| Classe environnementale | II |
| Nom du produit | E-nr | Description |
|---|---|---|
| PSV 24130-40 | 5213171 |
