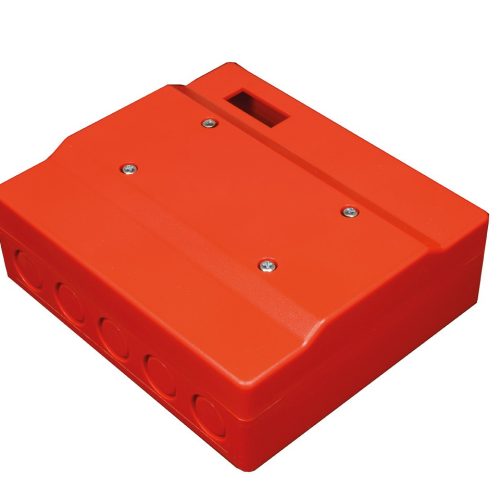

FIRE MODULE 10 PAIRS, Tamper contact
Terminal block for installation of alarm, access and fire systems.
Anti-tampering protected terminal module with 10 pairs.

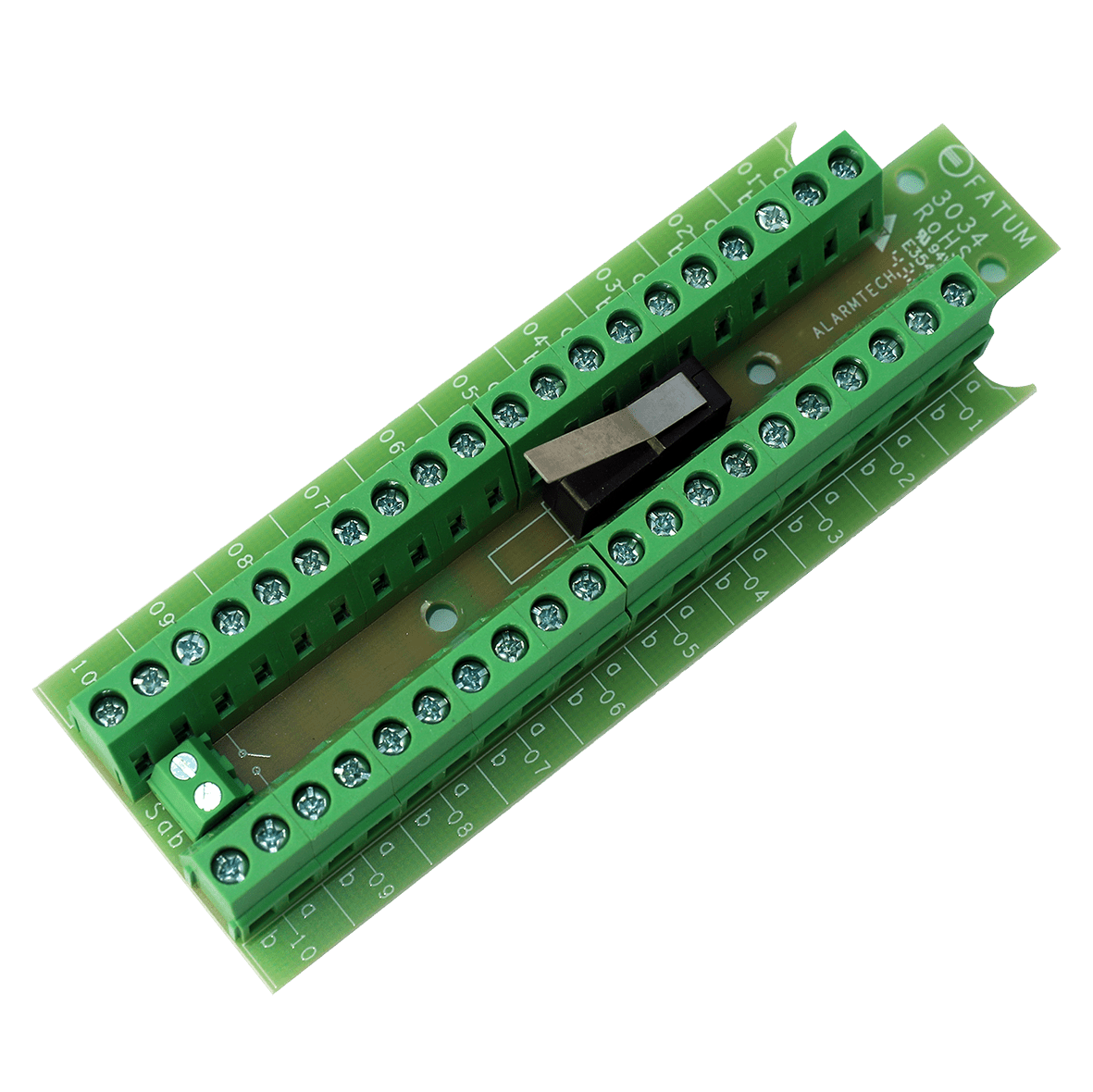

The terminal block has 21 parallel connected terminals and additional 1 pair intended for anti-tamper switch. Up to 2.5 mm2 screw connection with lift function for, for example, coarse fire cables.
| Attributs | Valeur |
|---|---|
| Section câble – borniers | 0,2 – 2,5 mm2 |
| Tension d’entrée max. | 60 V / 2 A |
| Intensité autoprotection max. | 50 mA |
| Dimensions (L x W) | 116 x 40 |
| Type de produit | Matériel de raccordement |
| Environnement | Intérieur |
| Bornier de connexion | Configuration des contacts, Protection contre le sabotage |
| Type de bornier | Vis/vis |
| Gamme de produits | Fatum |
| Caractéristique du produit | En surface |
| Nom du produit | E-nr | Description |
|---|---|---|
| 3034.03 | 5010318 |
