E-NR: 5015214
28112

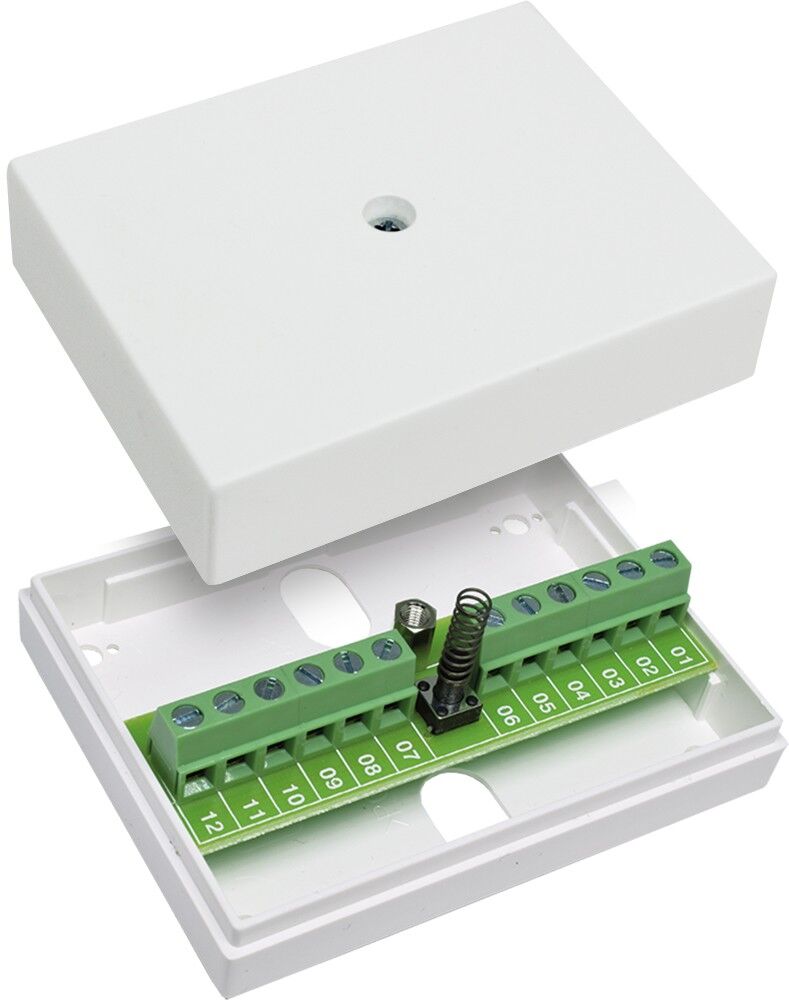

ALARM BOX “MINI” 12 POLES
Complete junction box for installation of alarm and access systems.
Anti-tampering protected junction box with 12 single pole terminals.
The terminal block is adapted to easily connect peripherals such as Alarmtech’s magnetic contacts and glass break detectors.

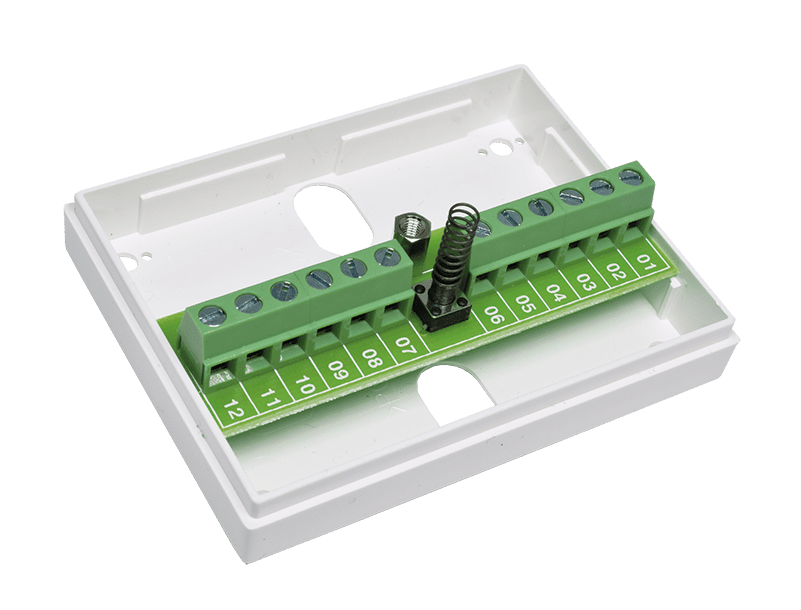

The terminal block has 12 connections, 2 of which are intended for anti-tamper switch connection.
The box is flame-retardant according to UL 94 V-0.
The terminal has up to 1.5 mm2 screw connection with elevator function.
| Attributs | Valeur |
|---|---|
| Dimensions (L x W x H) mm | 58 x 76 x 27 |
| Section câble – borniers | 0,14 – 1,5 mm2 |
| Tension d’entrée max. | 60 V / 2 A |
| Intensité autoprotection max. | 50 mA |
| Type de produit | Matériel de raccordement |
| Environnement | Intérieur |
| Bornier de connexion | Configuration des contacts, Protection contre le sabotage |
| Type de bornier | Vis/vis |
| Série | Mini-série |
| Boîtier | Plastique |
| Taille du boîtier | Mini |
| Gamme de produits | Fatum |
| Caractéristique du produit | En surface |
| Nom du produit | E-nr | Description |
|---|---|---|
| 28112.03 | 5015214 | Alarm Box Mini; 12 poles; Tamper Protected; Screw terminal |
