28016

ALARM BOX “MINI” 16 PAIRS

E-NR: 5015206

Type de bornier

La description

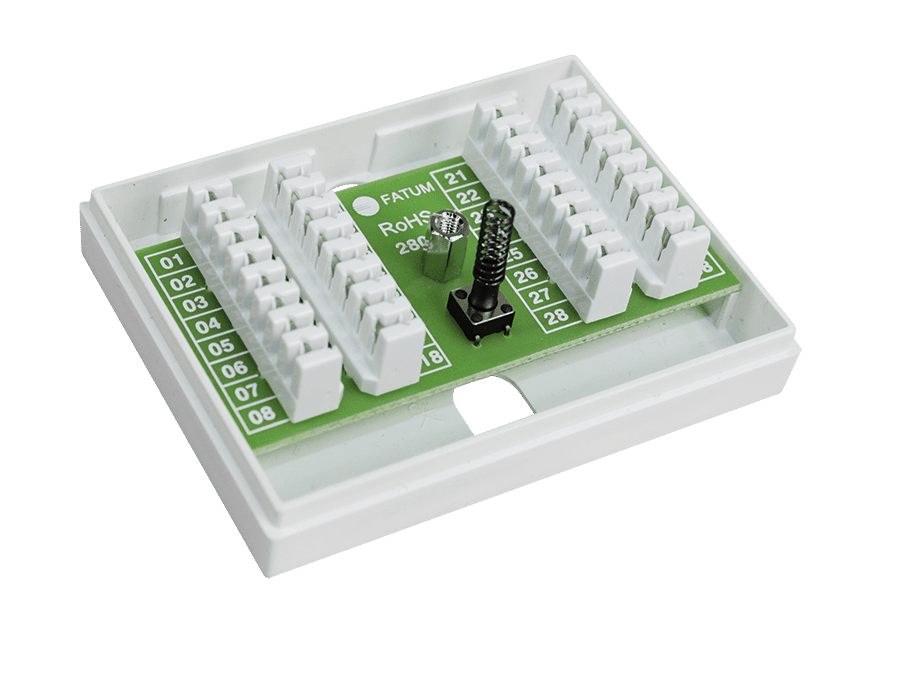

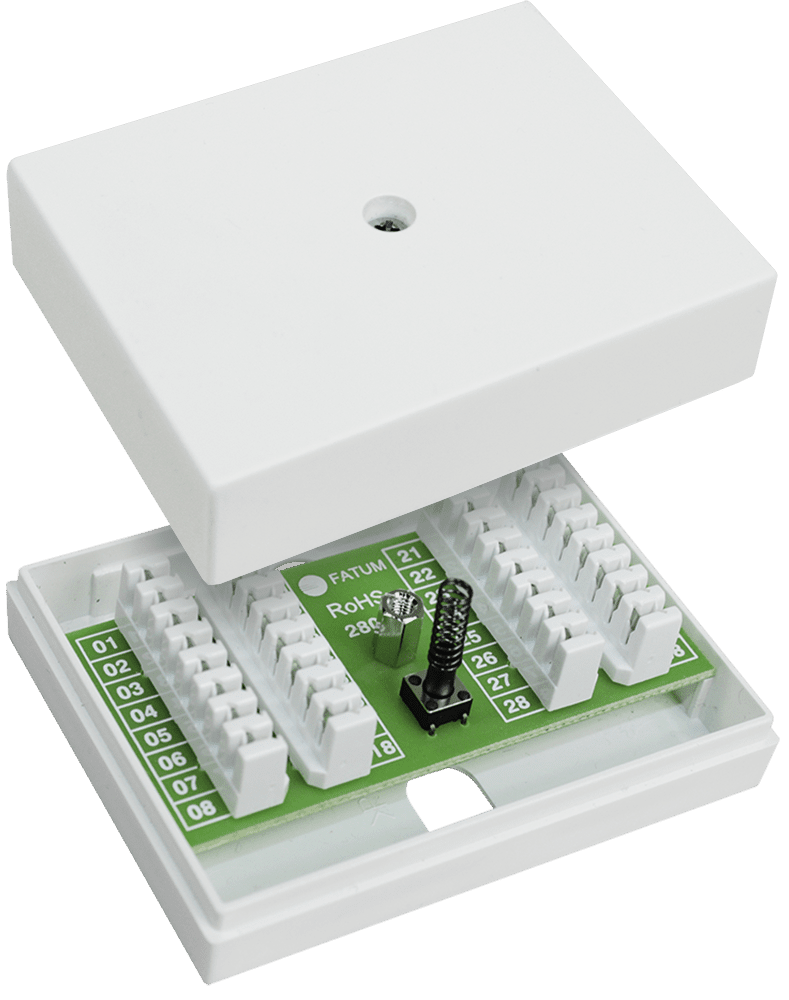

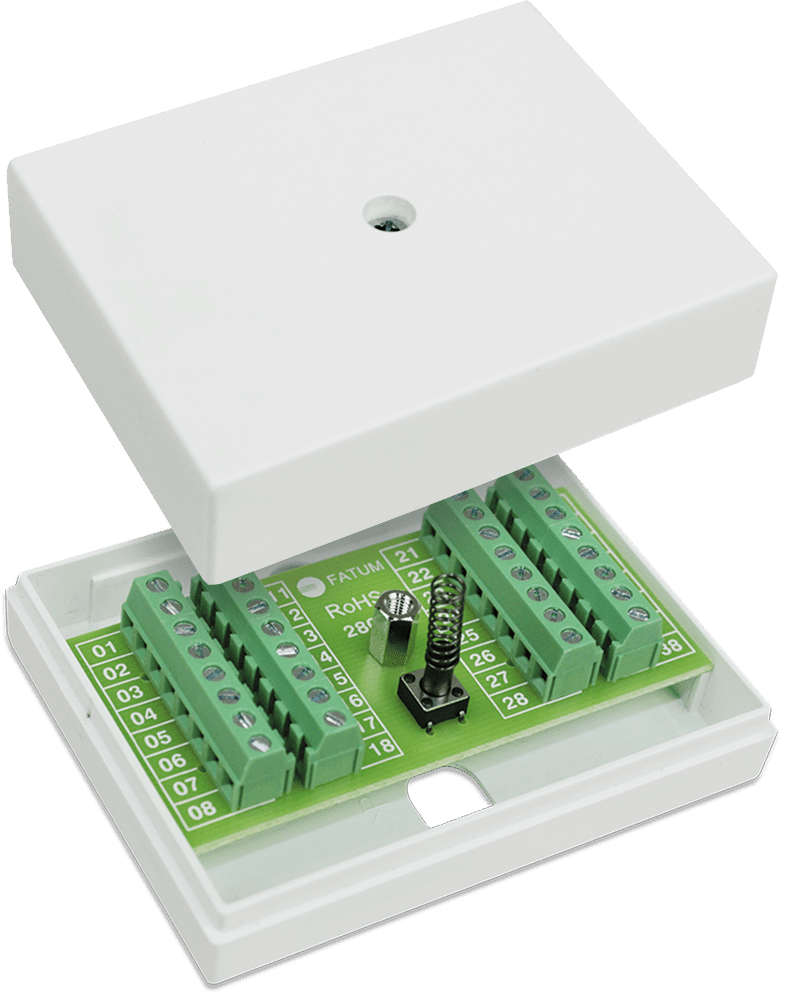

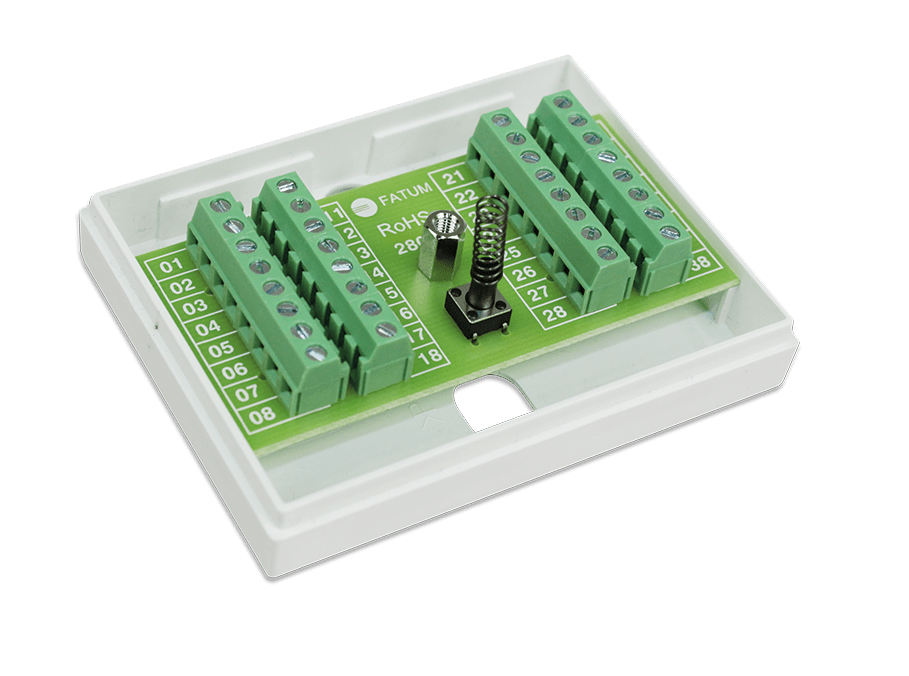

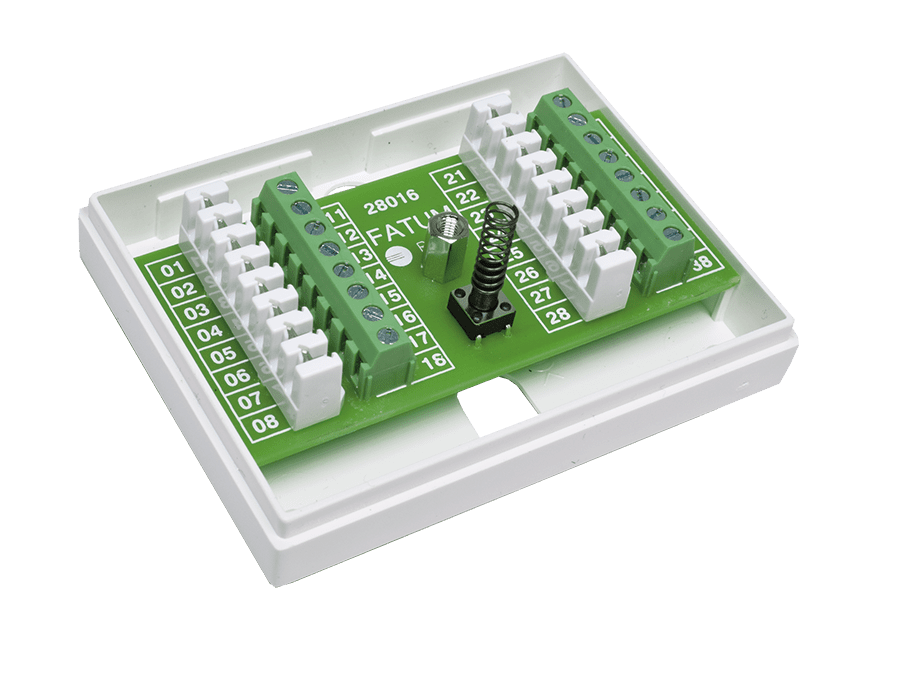

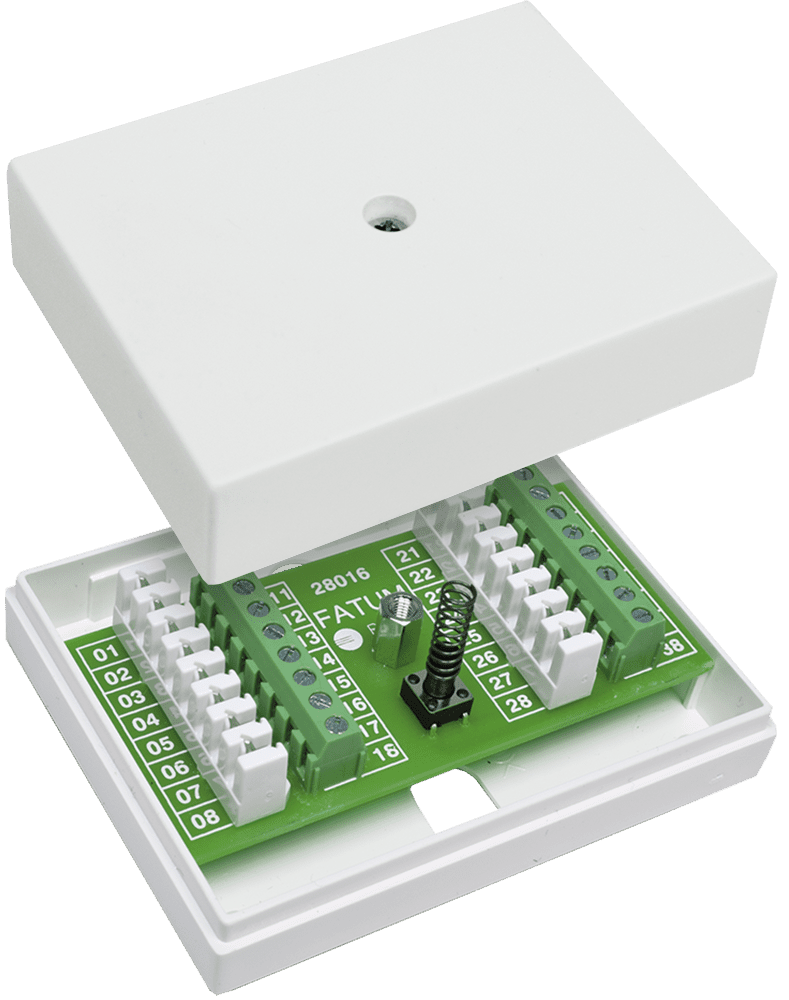

Complete junction box for installation of alarm and access systems.
Anti-tampering protected 16 pairs junction box.
The terminal block has 16 parallel connected terminals, of which 1 pair is intended for anti-tamper switch connection.
The box is flame-retardant according to UL 94 V-0.
Available in different options, slot (LSA) or screw connection with lift function.

Détails

Attributs Valeur
Type de bornier

LSA/LSA, LSA/vis, Vis/vis

Dimensions (L x W x H) mm

58 x 76 x 27

Section câblage – bornier LSA (mm)

Ø 0,4 – 0,7

Section câble – borniers

0,14 – 1 mm2

Tension d’entrée max.

60 V / 2 A

Intensité autoprotection max.

50 mA

Type de produit

Matériel de raccordement

Environnement

Intérieur

Bornier de connexion

Appairage

Série

Mini-série

Boîtier

Plastique

Taille du boîtier

Mini

Gamme de produits

Fatum

Caractéristique du produit

En surface

Les documents

Informations sur la commande

Nom du produit E-nr Description
28016.01 5015206 Alarm Box Mini; 16 pairs; Tamper Protected; LSA / LSA
28016.02 5015208 Alarm Box Mini; 16 pairs; Tamper Protected; LSA / Screw
28016.03 5015210 Alarm Box Mini; 16 pairs; Tamper Protected; Screw / Screw

Schémas

  • 0501.01

    LSA TOOL FOR KRONE LSA PLUS CONTACTS
