3090
ALARM MODULE 16 POLES WITH 2x RJ 45, SHIELDED
E-NR: 5010371
Tipo de terminal

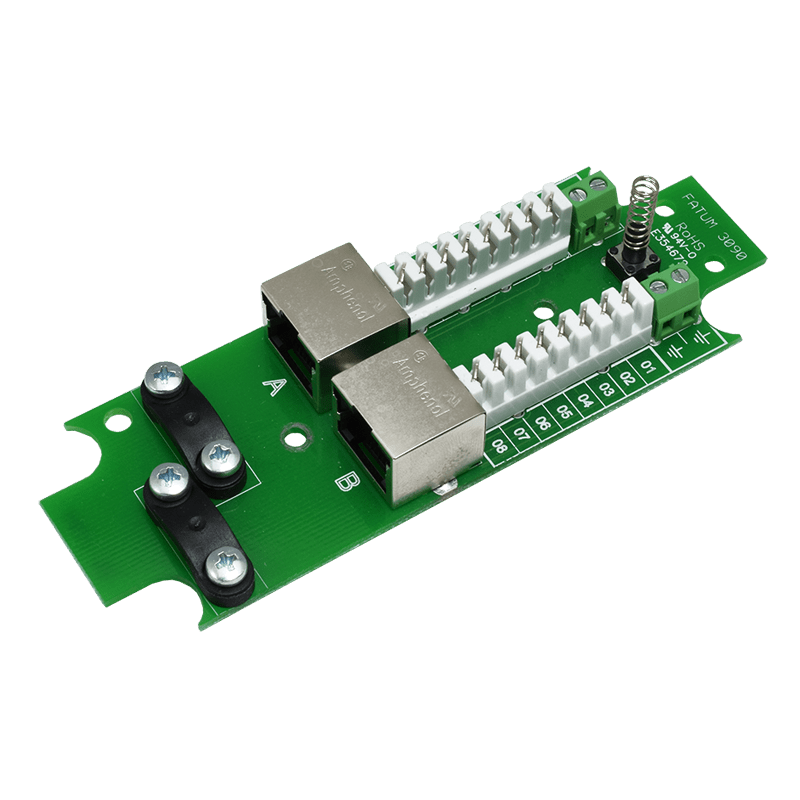

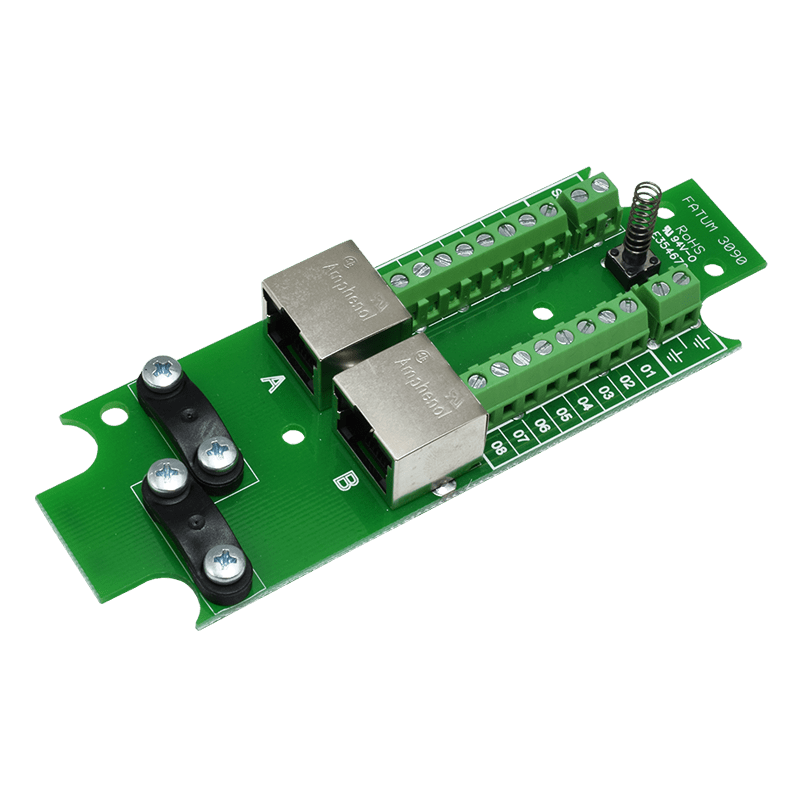

Shielded Alarm module for installation of alarm and access systems.
Anti-tampering protected module with 2x RJ 45 connector.
Designed for alarm and access systems and can be used for sliding doors or ports.
The terminal block has 16 connections + 4 poles of which 2 are intended for anti-tamper switch connection and and 2 is free.
The terminal module has screw connection with elevator function.
| Atributos | Valor |
|---|---|
| Tipo de terminal | LSA/LSA, Tornillo/tornillo |
| Conexión eléctrica – Clema (mm) | Ø 0,4 – 0,7 |
| Conexión eléctrica – Tornillo | 2,2 – 2,5mm2 |
| Carga máxima – Alimentación | 50 V / 1.5 A |
| Carga máxima – Tamper | 50 mA |
| Tipo de producto | Material de conexión |
| Entorno | Interior |
| Bornera de conexión | Emparejamiento |
| Línea de productos | Fatum |
| Característica del producto | De superficie |
| Nombre del producto | E-nr | Descripción |
|---|---|---|
| 3090.01 | 5010371 | |
| 3090.03 | 5010341 |
