Verteiler für GD 370

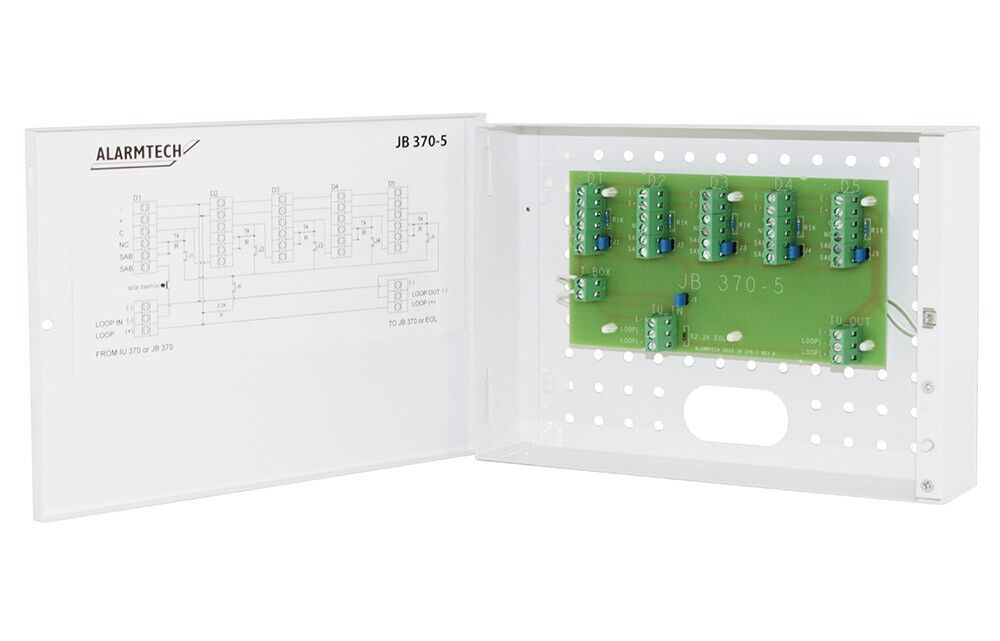

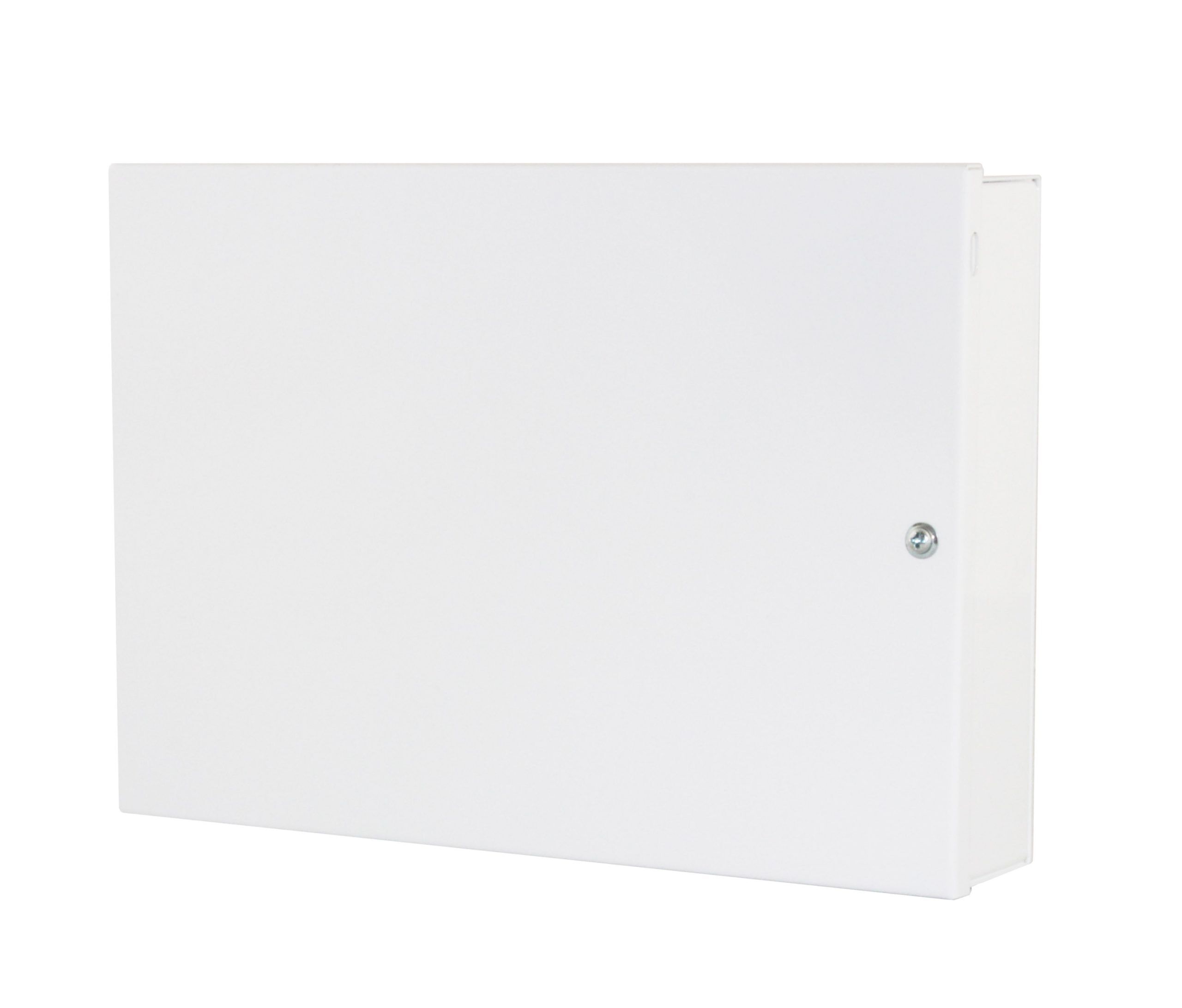

JB 370-5 is a junction box which simplifies the installation of the GD 370 glass break detector. The junction box connects max 5 GD 370 with IU 370 and/or multiple JB 370/JB 370-2/JB 370-5.
JB 370-5 is equipped with a built-in resistor for termination of glass break (optional with jumper) as well as a jumper which allows for use of GD 370 with relay towards IU 370. It also has tamper protection.
When installing multiple GD 370 in a location which allows for a common junction point JB 370-5 is an excellent choice of junction box.
| Attribute | Wert |
|---|---|
| Kontaktbelastbarkei | 48 VDC / 100 mA |
| Abmessungen (L x W x H) mm | 217 x 52 x 150 |
| Produkttyp | Anschlussmaterial |
| Umgebung | Innenbereich |
| Anschlussklemme | Kopplung, Sabotageschutz |
| Klemmentyp | Schraube |
| Serie | JB-Serie |
| Gehäuse | Metall |
| Produktreihe | Alarmtech |
| Produkteigenschaft | Aufputz |
| Produktname | E-Nr. | Beschreibung |
|---|---|---|
| JB 370-5 | 6309600 |
