HB 105-L
EN Grade 3 approved Personal attack switch with dual latching push-buttons

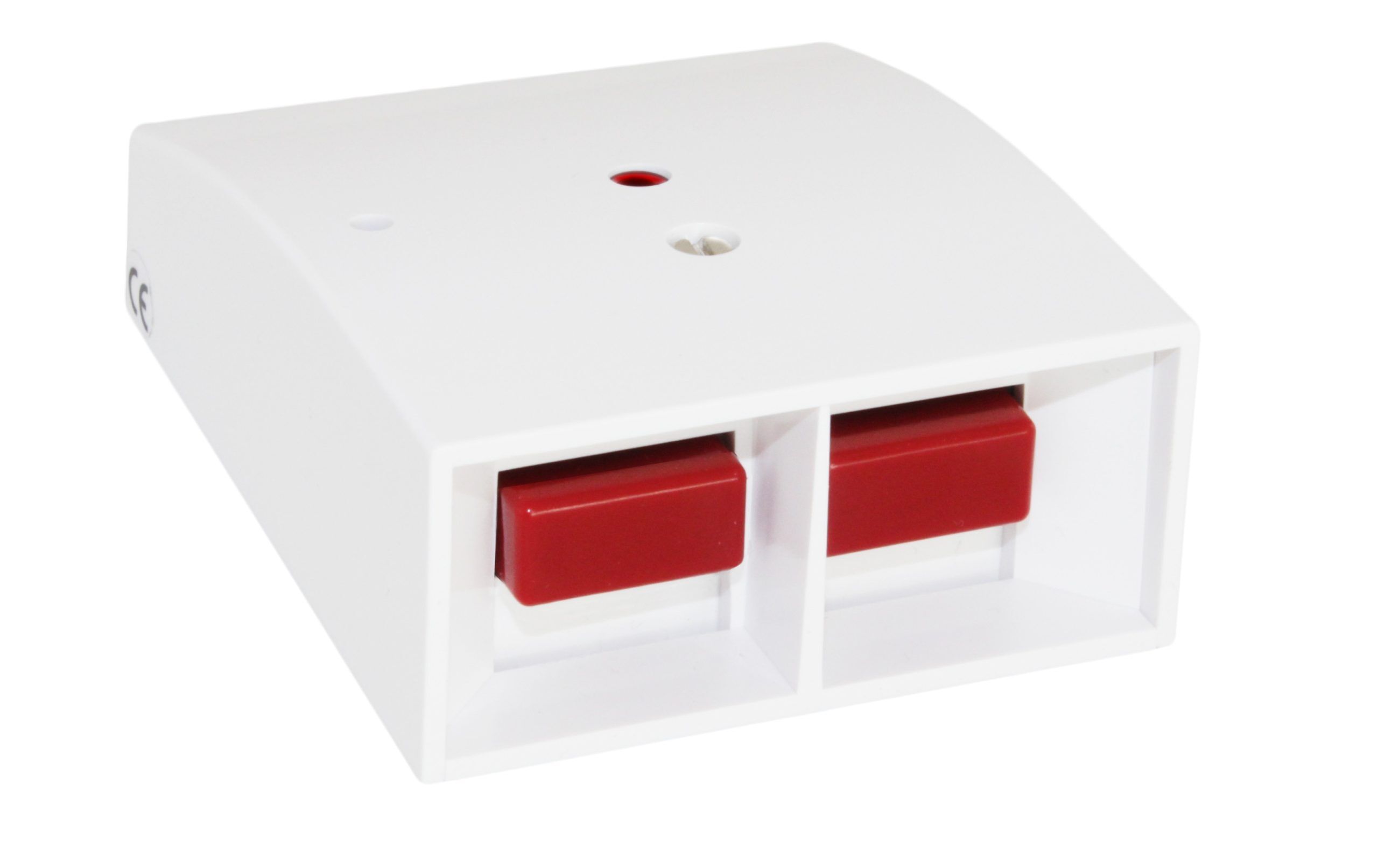

The HB 105-L is a mechanical personal attack button approved in EN Grade 3 that can be used for various functions within in an alarm system.

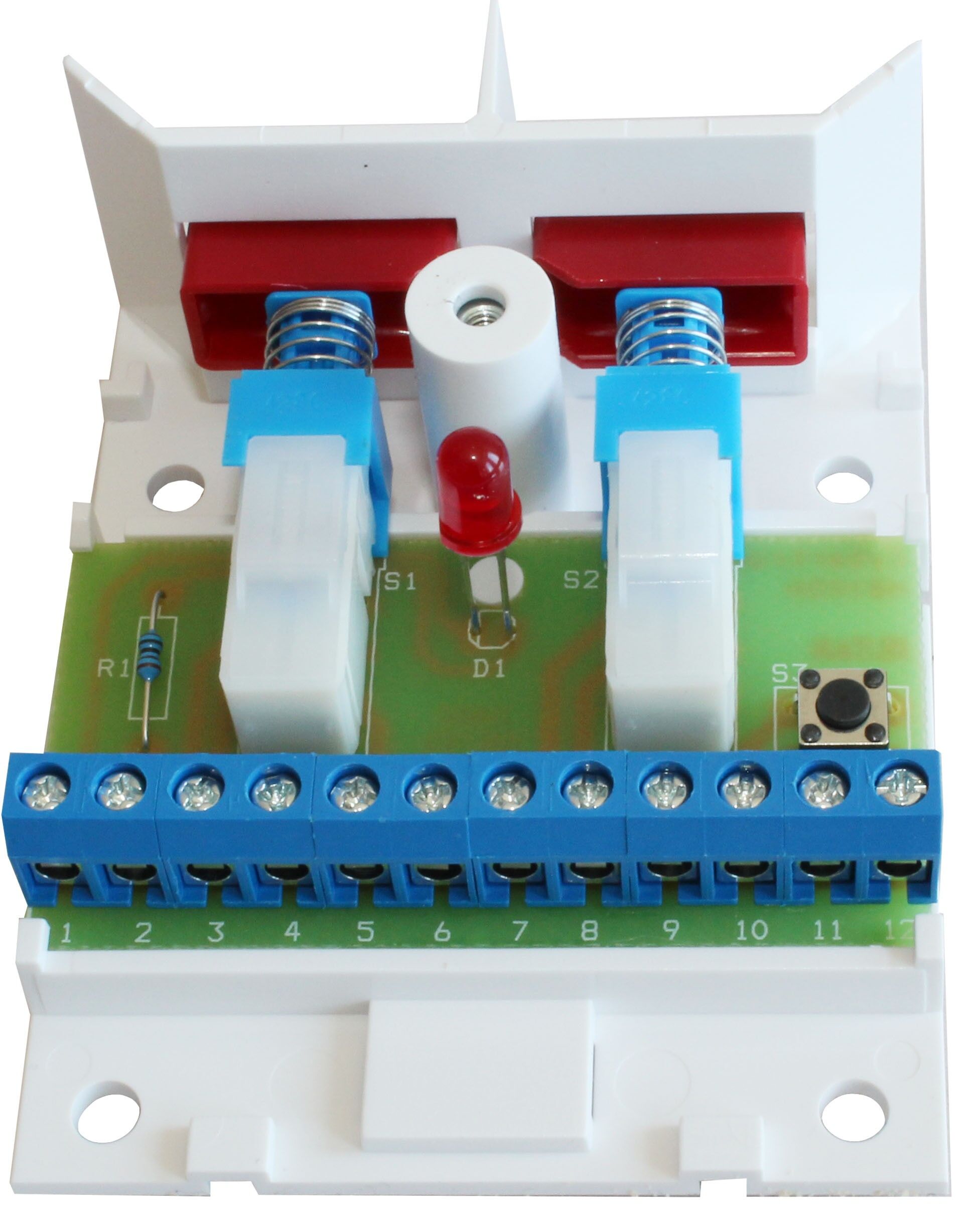

The HB 105-L has two latching push button switches with alternating (NC/ NO) function in the terminal. The buttons can be assigned either a single function or separate functions. There is also an input to control the built-in LED as well as an anti-tamper switch to protect against unauthorised opening.
| Attributes | Value |
|---|---|
| Contact rating | 30 VDC / 100 mA |
| Alarm indication | LED |
| Operating temperature | -10 – +55°C |
| Product type | Detectors |
| Housing protection class | IP 31 |
| Environment | Indoor |
| Dimensions (L x W x H) mm | 80 x 65 x 30 |
| Product group | Panic button |
| Security certification and approval schemes | EN, F&P, FG |
| Security class | 3 |
| Environmental class | II |
| Product feature | Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| HB 105-L | 6332861 |
